FRONT RUNNER Slimline II Jeep JLU (2017-Current) Extreme Rack Kit

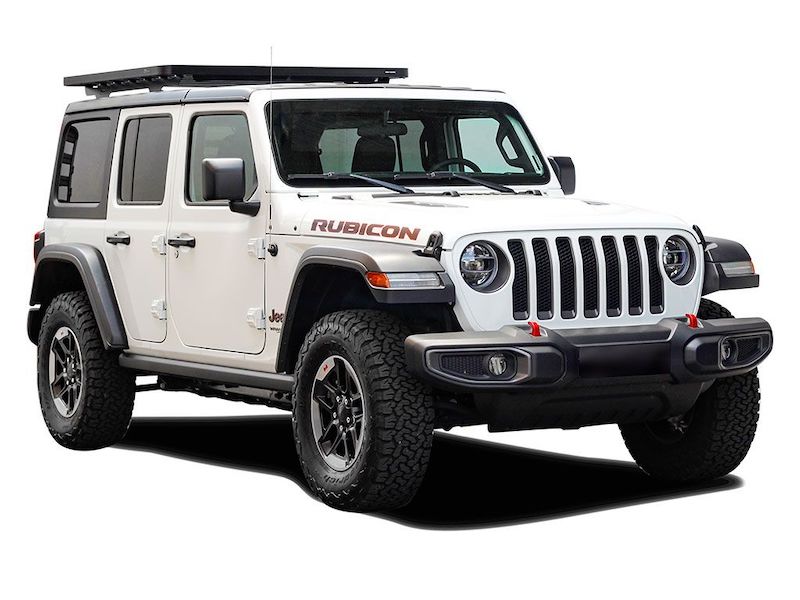

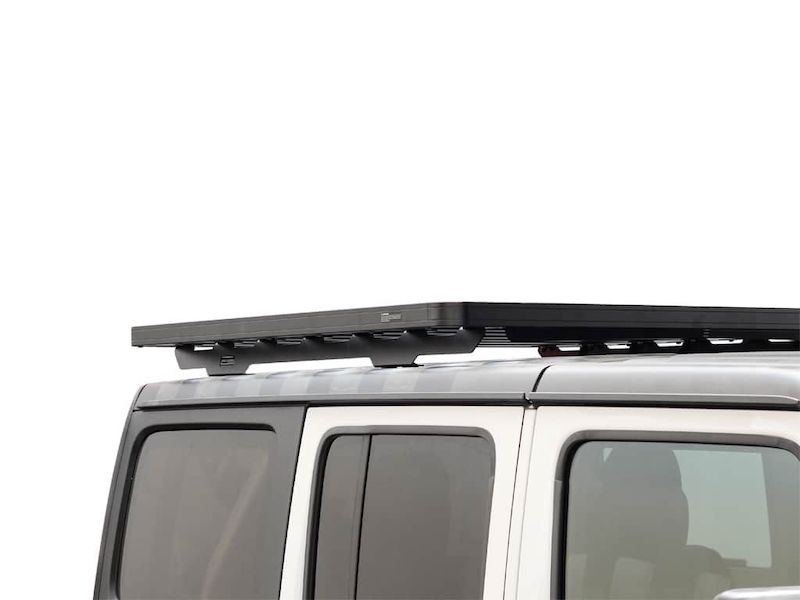

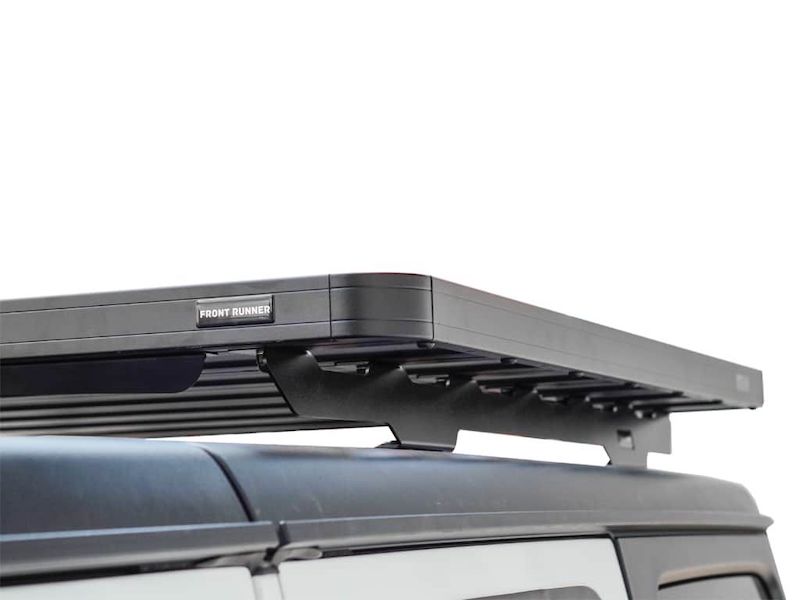

The Front Runner Slimline II JLU Extreme Roof Rack Kit is available as a half rack or a full-size Slimline II rack system. The included JL Extreme mounting system bolts to existing mounting points on the JLU chassis and roll cage. The cargo weight is evenly distributed across the roll bars and body of the jeep, placing zero weight on the hard top itself.

The Jeep Wrangler JLU 4 Door (2017+) Slimline II Extreme Roof Rack Kit includes a Slimline II tray (Half size: 56.1" x 53.5"; Full size: 56.1" x 93.2"), the Jeep Extreme Mounting System and a Wind Deflector. All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

PLEASE NOTE: Drilling is required for installation.

2017+ Jeep JLU Slimline II Extreme Roof Rack Kit Fitment Information

Drilling is required for installation. Installation instructions with detailed step-by-step images are included with the kit, or, if you are near one of our Rhino Adventure Gear locations, we offer installation services.

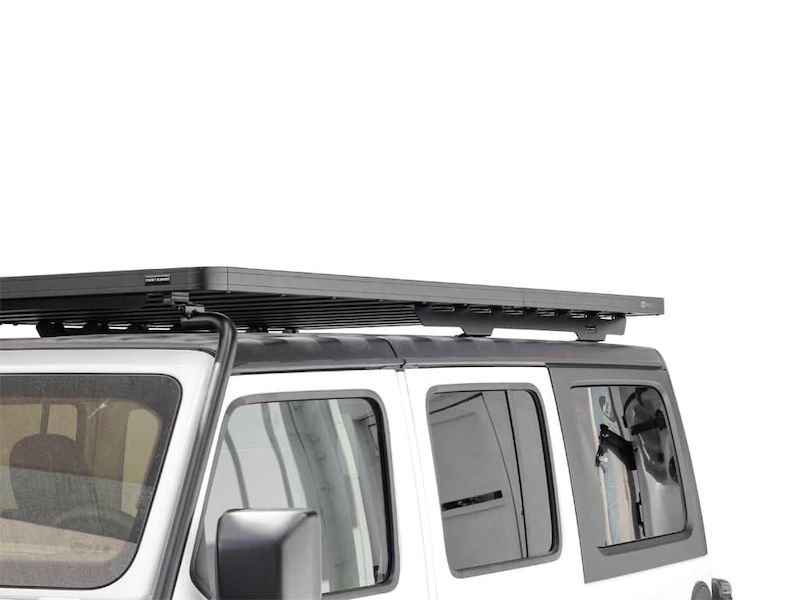

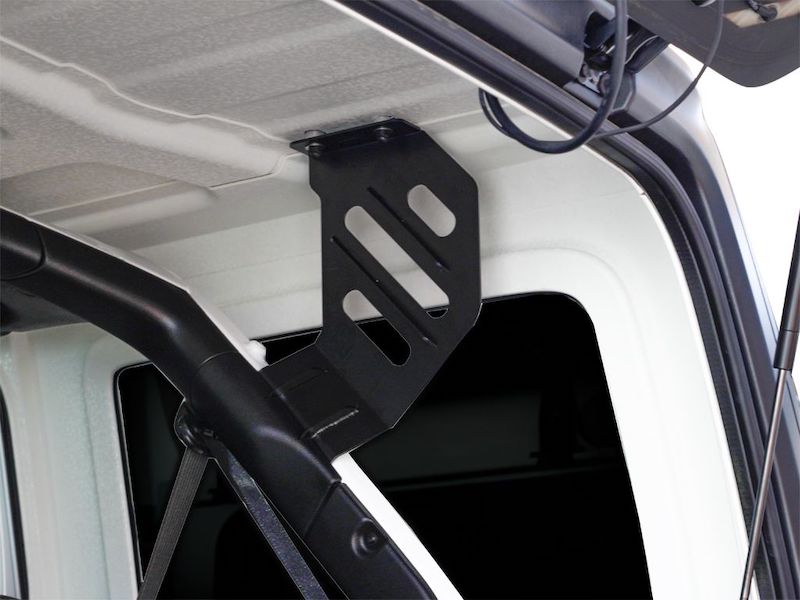

The JL Extreme mounting system bolts to the roll bar with middle and rear brackets. This unobtrusive, nearly indestructible mounting solution allows you to quickly and easily remove the Freedom Panels with rack in place. The windscreen can also be lowered without any interference.

The included Foot Rails contain 1 opening to access a Front Runner under rack mount table (1 smaller prep table or 1 larger camp size table).

2017+ Jeep JLU Slimline II Extreme Roof Rack Kit  Specifications

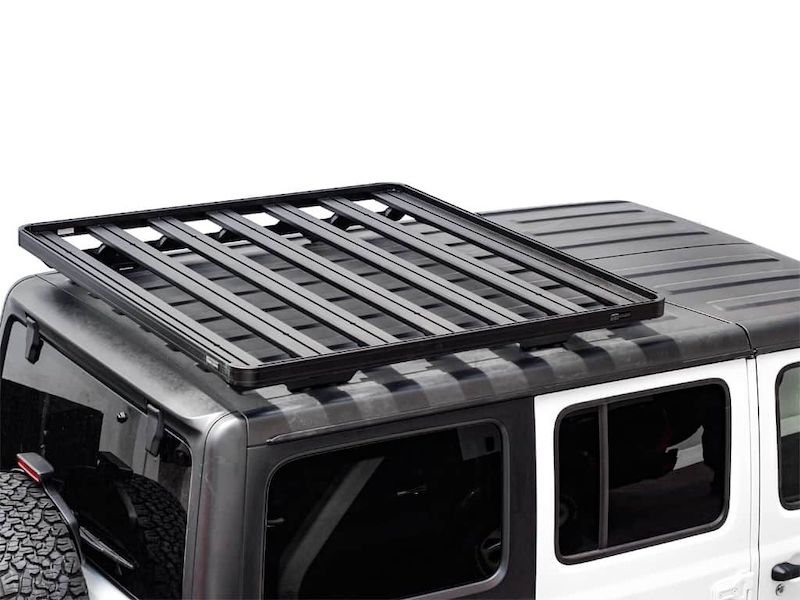

Components included in Slimline II Extreme Roof Rack Kit Half Size KRJW023T:

  • 1 x FAJL002 - Jeep Wrangler JL (2018-Current) Foot Rails - by Front Runner
  • 1 x FAJL003 - Jeep Wrangler JL 4 Door (2018-Current) Inner Brackets - by Front Runner
  • 1 x RRSTJ07 - Slimline II Tray - 1425mm(W) X 1358mm(L) - by Front Runner
  • Installation Instructions - by Front Runner

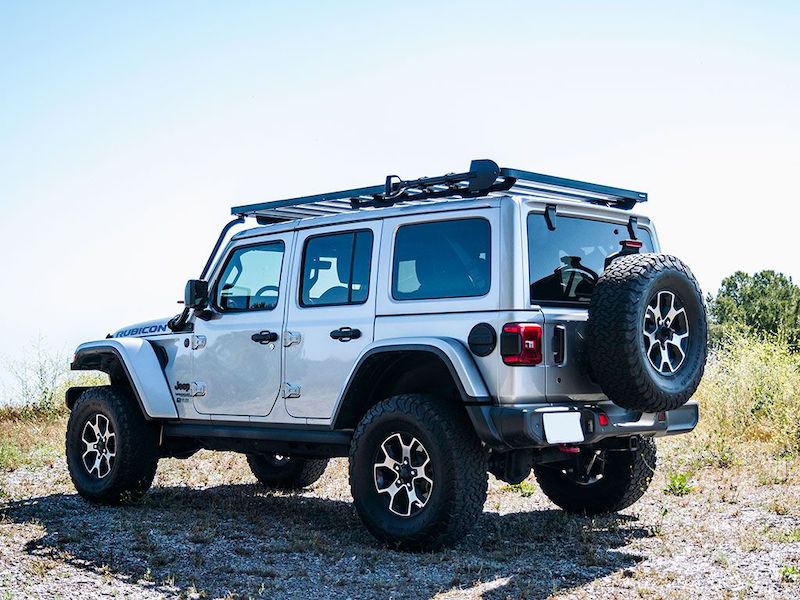

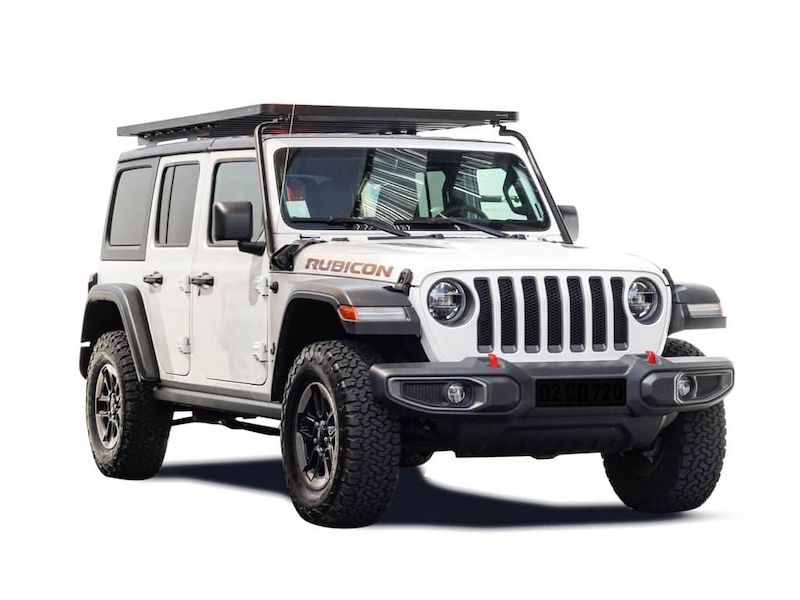

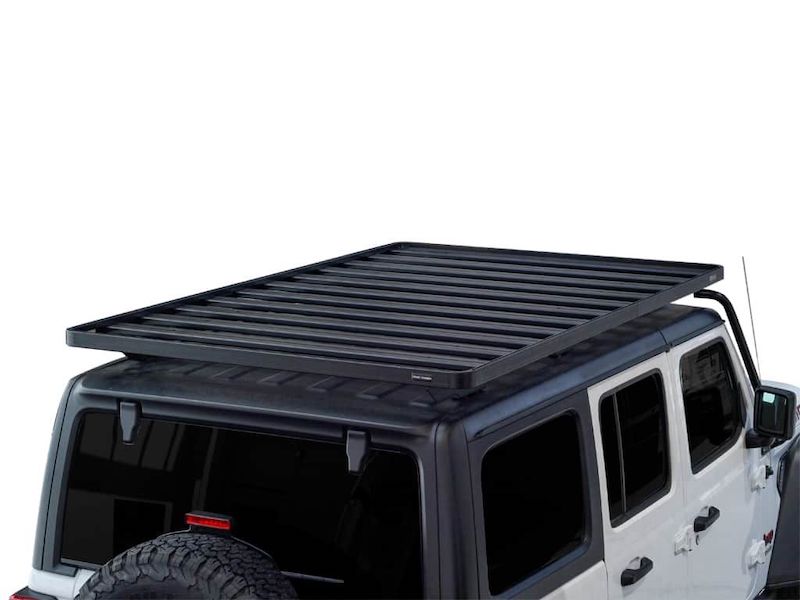

Components included in Slimline II Extreme Roof Rack Kit Full Size KRJW022T:

  • 1 x FAJL002 - Jeep Wrangler JL (2018-Current) Foot Rails - by Front Runner
  • 1 x FAJL003 - Jeep Wrangler JL 4 Door (2018-Current) Inner Brackets - by Front Runner

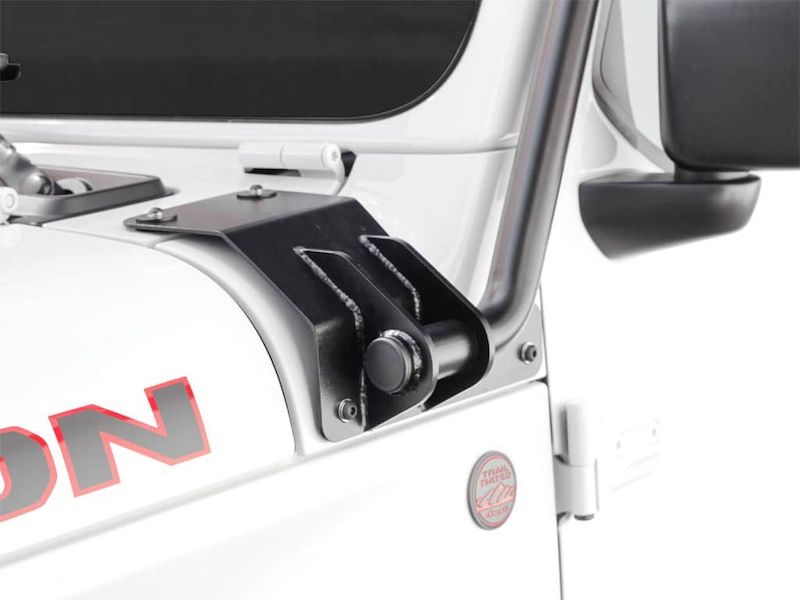

  • 1 x FAJL004 - Jeep Wrangler JL (2018-Curr) Front Bar RR Mount
  • 1 x RRSTJ12 - Slimline II Tray - 1425mm(W) X 2368mm(L) - by Front Runner
  • Installation Instructions - by Front Runner

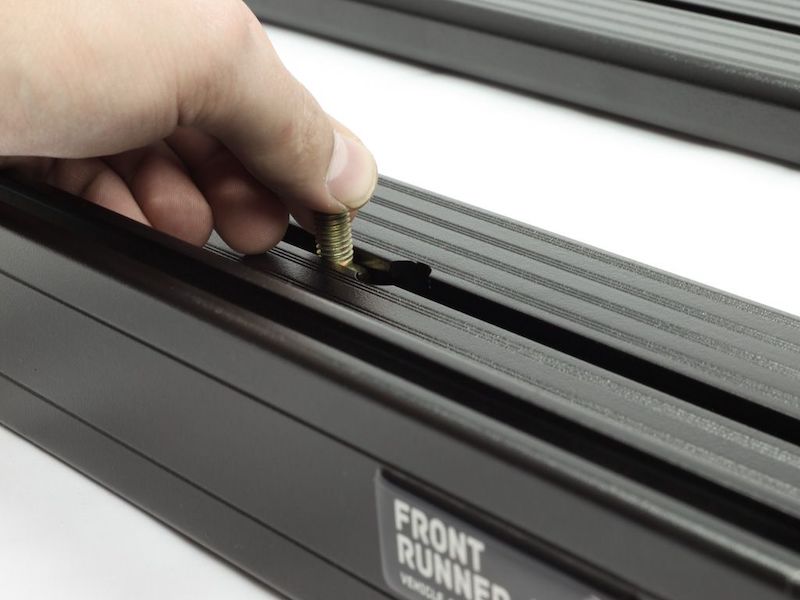

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

Materials: Black epoxy powder-coated T6 aluminum & 3CR12 Stainless Steel
Weight Capacity: The rack itself is rated to hold up to 660 lbs (static). For the vehicle load rating you will have to contact the vehicle manufacture. Front Runner does not specify a dynamic load rating for the Slimline II. Use good judgement.
Installed Weight: ~64 lb (Half Size Rack); ~86 lb (Full Size Rack)
Warranty: All Front Runner Racks are backed by a manufacturer's Limited Lifetime Warranty

Front Runner Slimline II Features

Made in South Africa, the Front Runner all-aluminum Slimline II Roof Racks are engineered for modern off-road adventure vehicles and offer unmatched strength, lightness and functionality. Each rack is engineered to meet the demands of professional adventurers who navigate extreme road conditions on a daily basis.

Modular Design for Complete Flexibility

  • More slats can be added to the tray to create a solid platform option, or slats can be removed to create access and views through many T-tops or sunroofs.
  • Full size racks can be quickly converted to shorter racks with the purchase of a pair of shorter side rails. Or, a smaller rack can be lengthened with the purchase of longer side rails and additional slats.
  • Expedition style rails can even be effortlessly added to create the classic roof rack basket shape.
  • If any individual component of the roof rack becomes accidentally damaged, the part can be swapped out without having to replace the entire tray.

Engineered Strength for Off-Road Use

  • The Slimline II was designed and built specifically for off-road use. Manufactured with high density T6 aluminum, the Front Runner Slimline II tray is rated to carry 660 lbs (never exceed the load rating specified by your vehicle manufacturer).
  • The load support slats fit into a double walled aluminum extrusion channel on the side profiles and are secured via locking nuts. This patented design creates an exceptionally strong joint support.
  • The Slimline II’s L-shaped rear and front slat design increases the strength of the entire rack.

Durably Constructed from Lightweight, High-Density Aluminum

  • Aluminum is roughly 30% lighter than steel and is corrosion-resistant. Front Runner's patented all-aluminum Slimline II design offers a superior strength to weight ratio. This rack system can withstand greater stresses than the best all-steel roof rack at 1/3rd less weight.
  • The extra strength and lightness of the Slimline II allows heavier loads to be carried on the roof of the vehicle more safely. Using the lighter Slimline II Roof Rack instead of a comparable all-steel rack can lessen your vehicle’s environmental impact, decrease vehicle wear, and improve gas mileage.
  • As an extra layer of protection to the corrosion free aluminum, Front Runner Slimline II Roof Racks and mounting solutions are powder coated satin black with one of the industry’s most durable and lasting finishes: Akzonobel’s Interpon 600 (CPO 6034). This weather-resistant powder coating is formulated for exterior uses and far exceeds industry standards, with the finish showing no visible damage at 500 hours of continuous salt spray.

Low Profile Streamlined Design

  • Because of the unique T-slot mounting system, “basket style” side rails are not necessary. This flat deck design is unobtrusive and compliments the lines of today’s automobiles. Because there are no side rails, it’s easier and quicker to remove stored gear and it’s also possible to mount a roof top tent.
  • For city use, the lower profile affords easier access to underground car parks and garages. By minimizing the profile, there is less drag and noise than the typical roof rack - thereby increasing fuel efficiency and increasing performance.
  • To further reduce wind noise, all Front Runner Slimline II Roof Racks come with Wind Deflectors included.

Versatile Gear Mounting Options

  • The Slimline II offers easy on and off mounting for any type of adventure gear. No more untying, unstrapping, un-netting the entire contents of your roof rack to remove one item. Loads are independently secured anywhere on the top, sides, or bottom of the rack using Front Runner’s versatile bolt-on system.
  • The Slimline II offers limitless possibilities for the end user to customize the arrangement of over 50 Front Runner roof rack accessories.
