BAJA DESIGNS RTL-M Rear Tail Light Mini (6")

License Plate Illuminator

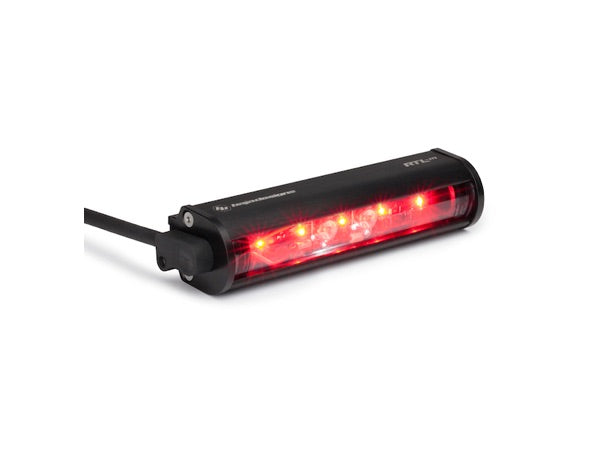

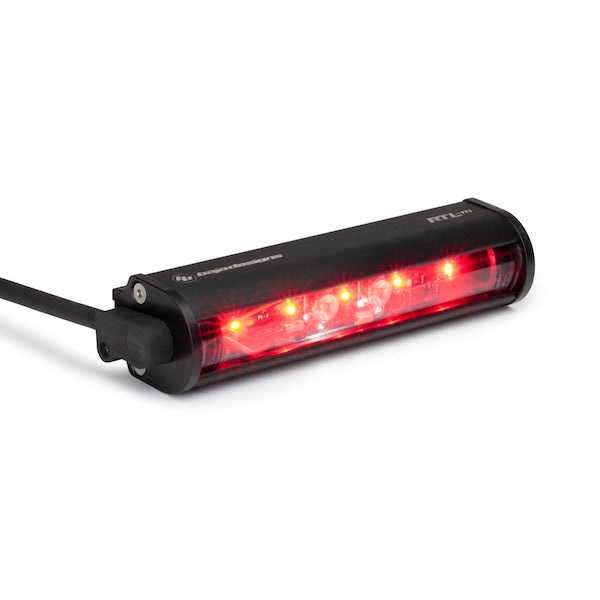

RTL-M, Rear Tail Light – Mini, is a miniature version of our existing RTL. At a compact 6-inches this light bar will be exceptionally useful on vehicles where space is limited like Jeeps, motorcycles UTVs or ATVs.

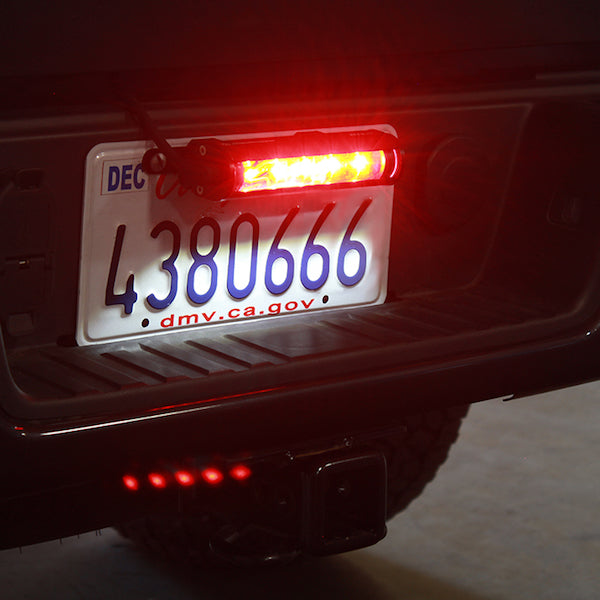

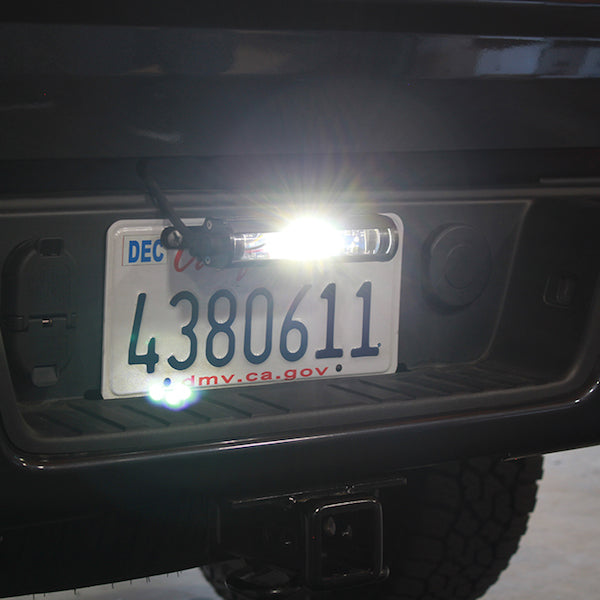

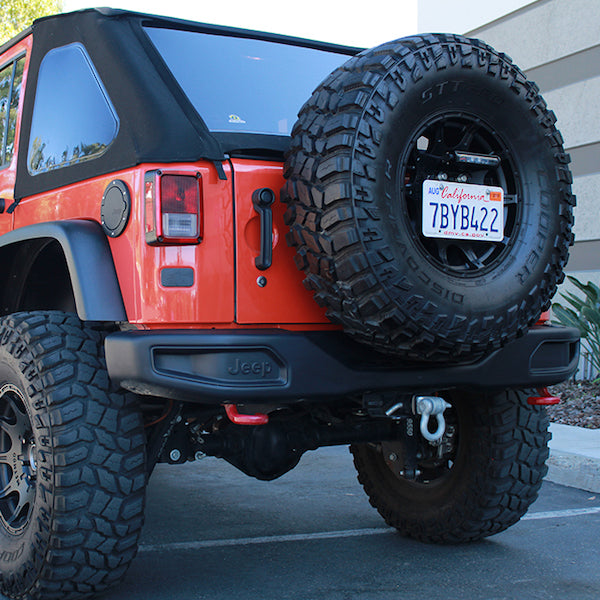

The RTL-M includes five red LEDs which function as the running and brake lights. The high visibility of these LEDs provides extra safety to any off-road enthusiast, from the casual weekend warrior, to the dedicated racer. The bar also features a pair of central white LEDs which act as cargo and scene lighting. Perfect for grabbing gear out of the toolbox or lighting the camp area. The RTL-M also features an optional license plate illuminator for those that would like to use the product with our Universal License Plate Mount or Jeep JK Spare Tire Mount.

Baja Designs RTL LED Light Bar Features

Satisfaction Guaranteed - 30 Day Money Back Guarantee
Limited Lifetime Warranty - Complete Purchase Protection
MoistureBlock™ - Waterproof, Rain Proof, Submersible
CopperDrive® - Only LED Driven At 100%

Baja Designs RTL-M LED Rear Tail Light Mini Dimensions & Specifications

NOTE: For additional technical details on this product including a wiring diagram, mounting hardware diagram and detailed warranty information, please see the Baja Designs RTL-M Data Sheet.


  • Taillight: 0.75W
  • Brake Light: 5.5W
  • Cargo Light: 8.5W, 312 Lumens
  • ** Optional** License Plate Light: 2W

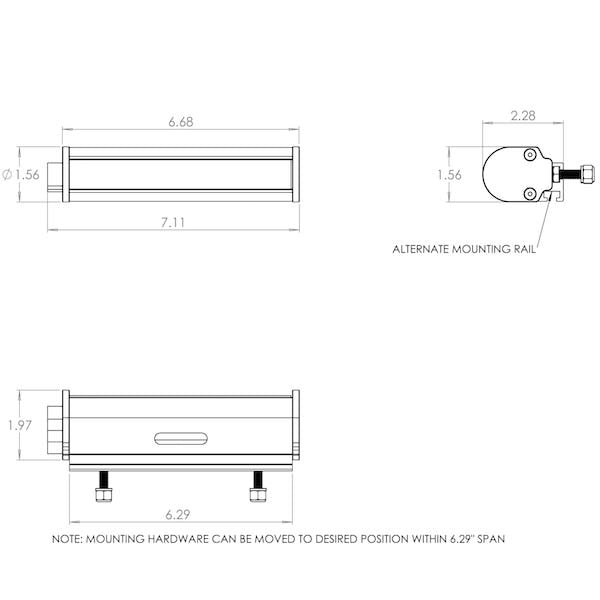

Dimensions: 6.69" x 1.56" x 2.5"
Weight: 1.1 lbs
LED Life Expectancy: 49,930 Hours
Hardware & Bracket Material: Stainless Steel

Standards of Compliance:

Exceeds MIL-STD810G – (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K  (Submersible up to 9ft & Pressure Washable)
IK10 Compliant  (Mechanical Impact Testing)
Salt Spray Certified
