UBCO 2x2 Electric Adventure Bike: Dual Use Model

Transform the way you ride.

An overlander's dream. Two wheels, two motors, no gas, no noise. Ubco will redefine your adventures outside.

With its lightweight frame and powerful, near silent motors, the Ubco 2×2 gives you complete control for all your off-road adventures. With no gears or clutch to worry about, this bike is fun and easy to ride, even for those new to motorbikes.

Owning any terrain where the rubber meets dirt, the Ubco 2×2 gives you the power to go. The upgraded 50Ah Lithium-Ion battery not only fuels the bike; it powers all your tools from your phone to your drill (at the same time).

The dual electric drive is smooth, ultra-quiet, and low maintenance; it can go through trenches, up hills, and down bush tracks without a second thought.

Start your 2×2 adventure today. Videos, safety information, and more can be found here.

Ubco 2x2 Electric Adventure Bike

**NOTE** Please call or email to schedule a test drive at our showroom. No motorcycle license is required, a regular drivers license is sufficient for legal on-road use of the Dual Use Ubco 2x2.

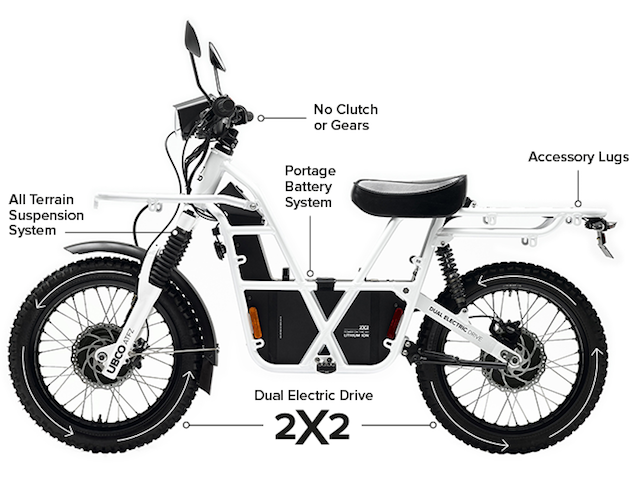

Dual Use Model Features Highlights

• Dual use on- or off-road (street legal and ready for off-road adventures)
• Improved 52.2 Ah Lithium-ion power pack
• 75 mile max range (can be doubled with a spare battery)
• 6 - 8 hour charge time
• 139 lbs curb weight- light enough for a vehicle bike rack
• 330 lbs carrying capacity
• 30 mph top speed
• 110V or 240V charger
• See below for more details on electrical, suspension, etc.

SuperX Step Through Frame

Low center of gravity- more stability and better balance
Easy to mount and dismount

7000 Series Alloy

Lightweight and strong
High load capacity

17 x 2.5" Multi-Use Tires

Suitable for both on road and all-terrain surfaces
Long life and ultimate grip

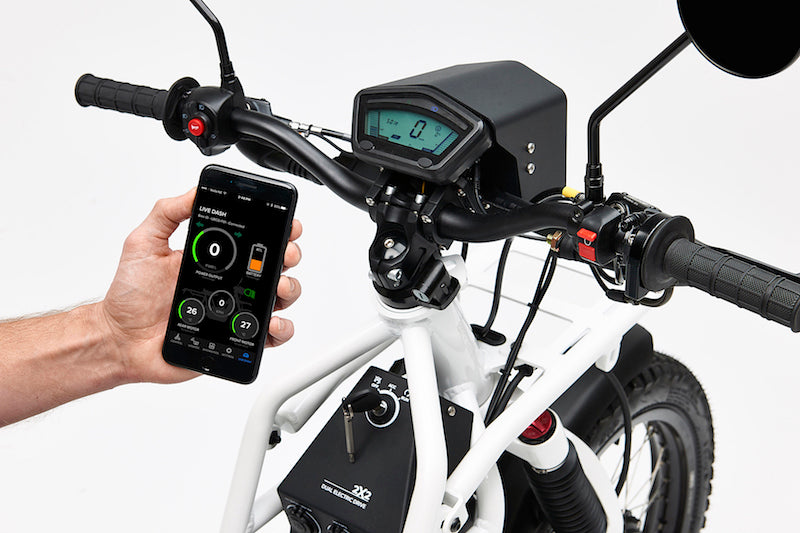

LCD Display

Greater control to keep track of your riding
Monitor speed, trip distance, power output, battery level, and time of day

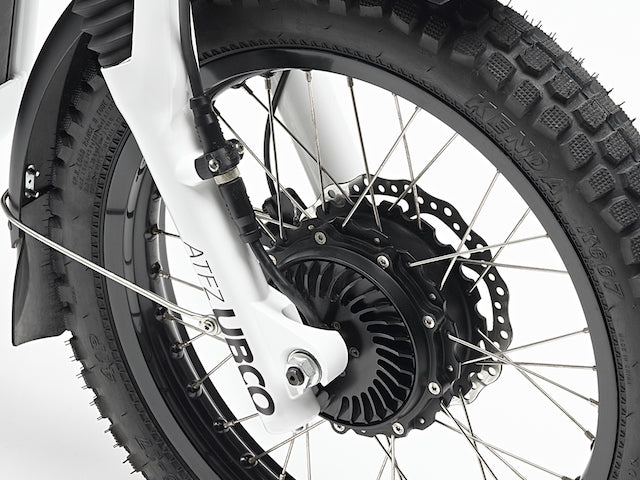

All-Terrain (AT) Suspension

Ubco ATFZ front fork with 130mm travel for a smooth ride
Die-cast aluminum lowers with torque arm.
37.5mm high tensile steel chrome plated stanchions.
32mm Ubco ATR rear shocks with 120mm travel.

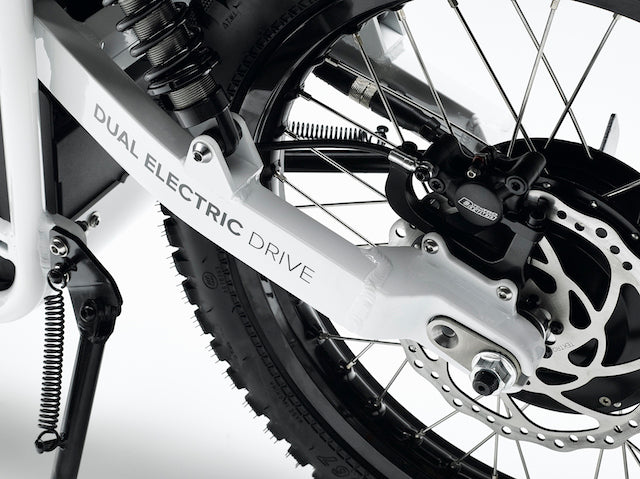

Dual Electric Drive

No clutch – unmatched low-speed control and improved handling on- and off-road
Better acceleration and traction in slippery conditions- no getting stuck in the mud
Better grip off road
Ascends gradients of up to 30%
Very low maintenance- no oil changes or engine specific replacements

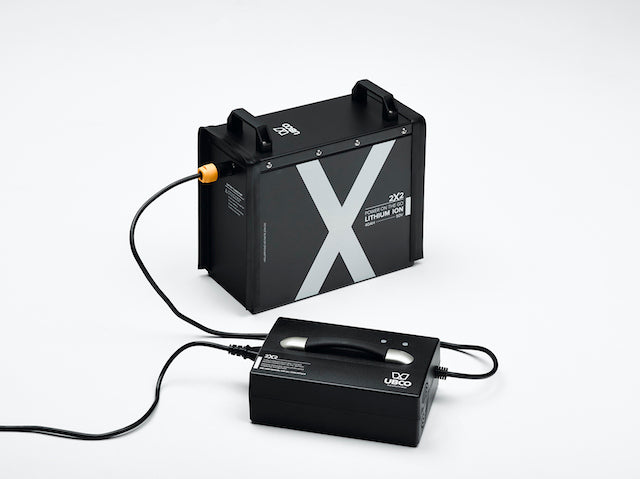

Portage Lithium-Ion Battery System

48Ah rated, 50V Lithium-ion portable power pack.

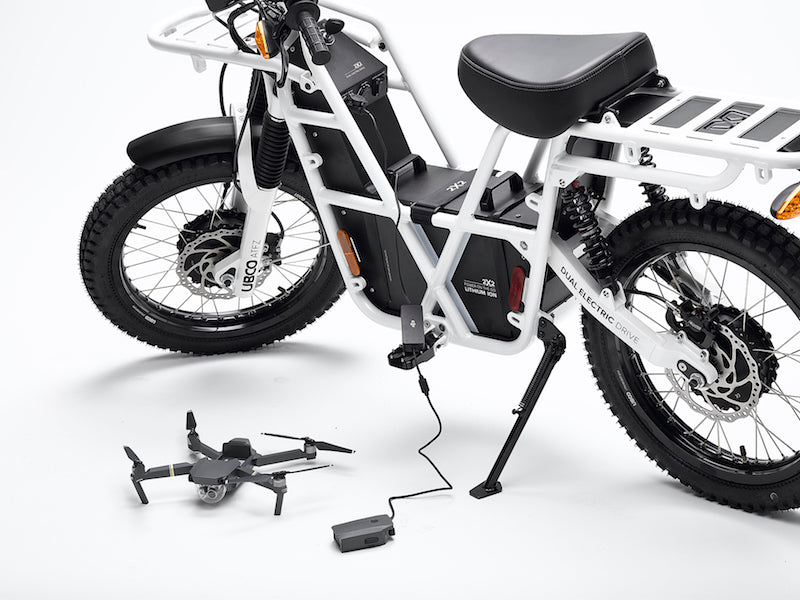

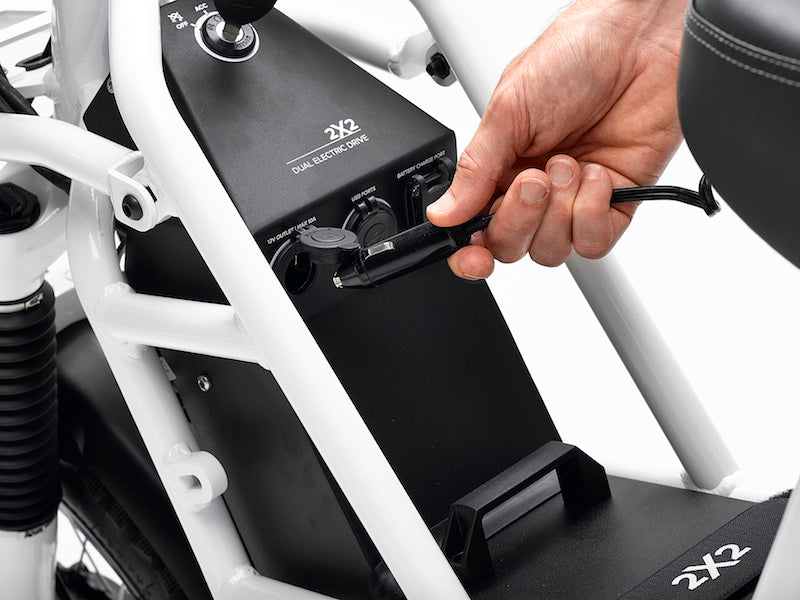

Charge your tools and handheld devices on the go using 12V and dual USB outputs
Long range (75 miles) with quick and economical charge time – 6-8 hours
No smoke or noise
No chains, gears or clutch just flip the switch and twist to go

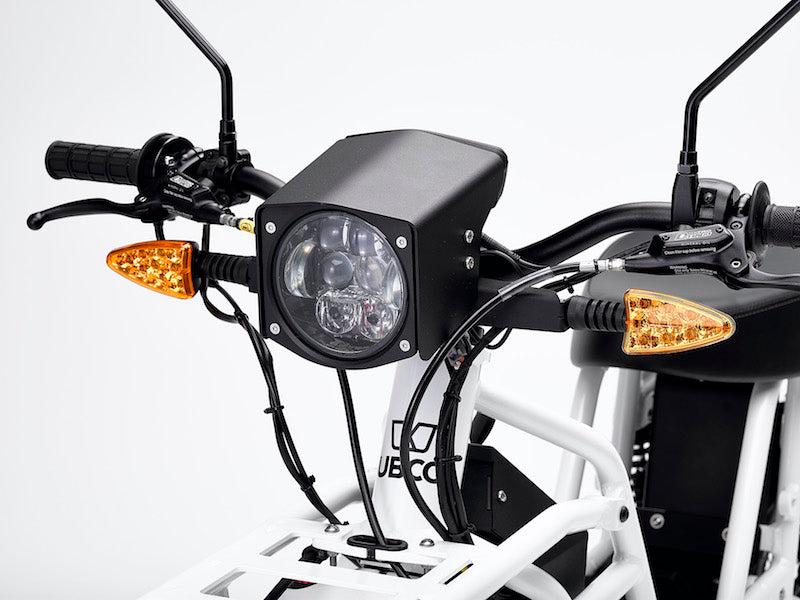

High-Intensity LED

120mm diameter headlight.
Low beam approximately 1300 lumens.
High beam approximately 2230 lumens.

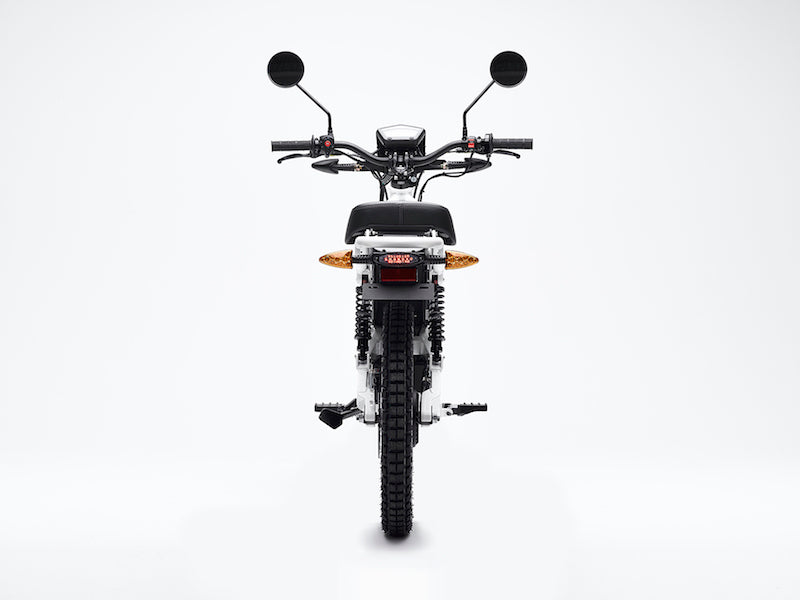

LED rear, brake and number plate lights.
LED directional indicators.
Long life.
High intensity.

Lugs

Easily customize to attach storage or anchor gear

Connectivity and User Input

Bluetooth compatible with the Ubco User App.
Integrated ECU (Engine Control Unit) allows users to directly communicate with the 2×2 and control lighting, motor controllers, display and rider controls
Talk directly to the bike.

2018 Model Technical Specifications

Dimensions

Height* (excl. mirrors) 42″
Length* (excl. number plate) 72″
Width (handlebars) 31.5″
Wheelbase 47″
Seat height 31.5″
Curb weight 139lbs
Carrying capacity including rider 330lbs including rider
Typical cost to recharge Under 70c

*Height / Length measures are approximate

Drivetrain

Transmission Single Stage Planetary Gear Reduction with an integrated radiator for enhanced heat dissipation

Electrical System

Motor Two 1 Kilowatt peak brushless DC, air-cooled hub, Flux Drive motors
Controller Two high power density controller with over-heating protection
Power pack Ubco Lithium-Ion 52.2Ah (48Ah rated), 50V battery
Charger type 100-240V 350W, wall or bench mount
Charge time 6-8 hours
Input Bluetooth with user app/USB
Ports Two USB charging ports (1A & 2.5A) and one 12V outlet (10A max)

Communication

Integrated Engine Control Unit (ECU) Directly controls lighting, motor controllers, display, rider controls and Bluetooth connection

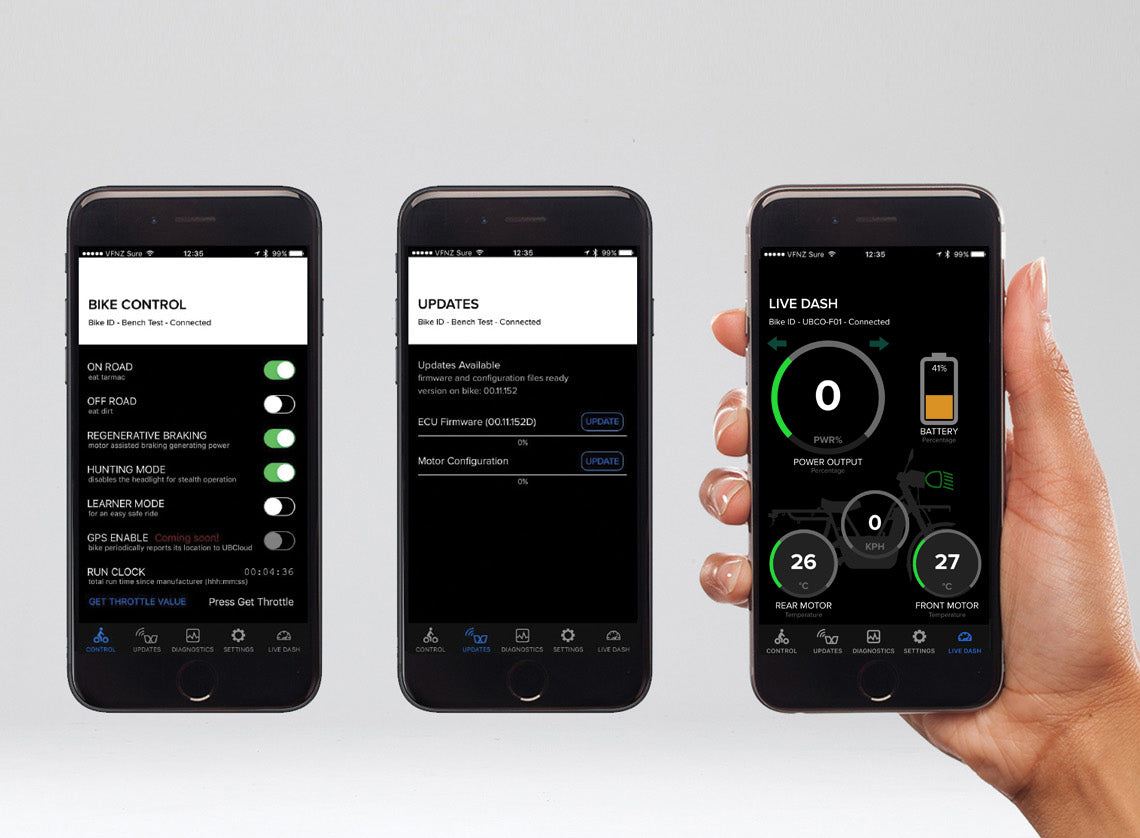

Ubco User App (iOS or Android) allows bluetooth connection between your smartphone and your 2x2, so you can update the bike, diagnose faults and choose between on- and off-road riding modes, a learner mode, or a hunting mode for a stealthier approach.

Chassis / Suspension / Brakes

Front suspension 37.5mm custom Ubco front fork with rebound adjustment
Rear suspension 32mm shock with adjustable spring preload and rebound damping
Front suspension travel 130mm
Rear suspension travel 120mm
Brakes Tektro Dorado front and rear brakes, 203 x 2.3mm rotors, high power hydraulic calipers
Wheels 17 x 1.85″ aluminum rims
Tires 17 x 2.75″ Kenda K667 tires

Lighting

LED Headlight 120mm diameter
Low beam 1330 lumens, 27.6W
High beam 2230 lumens, 36W
Additional lighting LED rear, brake, number plate and directional lights

Performance

Range 75mi, max range will vary depending on terrain and carry load
Power 2.4kWh
Torque 90Nm
Top speed 30 mph

Vehicle Class / License Requirements

Motor-driven cycle or moped.

Warranties

Frame warranty 3 years
Battery warranty 2 years
Motor warranties 2 years
Parts / Components 6 months
