BAJA DESIGNS RTL Rear Tail Light (30")

Looking for more safety out on the trail? Baja Designs' RTL is your answer for higher visibility and performance off-road.

This rear facing tail light is a first for Baja Designs, but includes quality and styling that is unique to Baja Designs. This slim & sleek package includes Baja Designs' proprietary MoistureBlock Technology, Lifetime Warranty and the highest quality of components. With a choice of two mounting configurations, this bar is perfect for the recreational enthusiast looking for more safety on the trail, or for racers powering through the course.

RTL-B & RTL-G models meet the specifications to be race legal and include a blue or green safety light designated for slower moving vehicles in CA racing promotions.

PLEASE NOTE: This is the Baja Designs 30" RTL Light Bar. For the 6" mini version of the Rear Tail Light, please see the RTL-M Light Bar.

Included:
30" RTL Light Bar (Select Model)
Mounting Hardware
** Wiring Harness is NOT included **

The following Models are available:

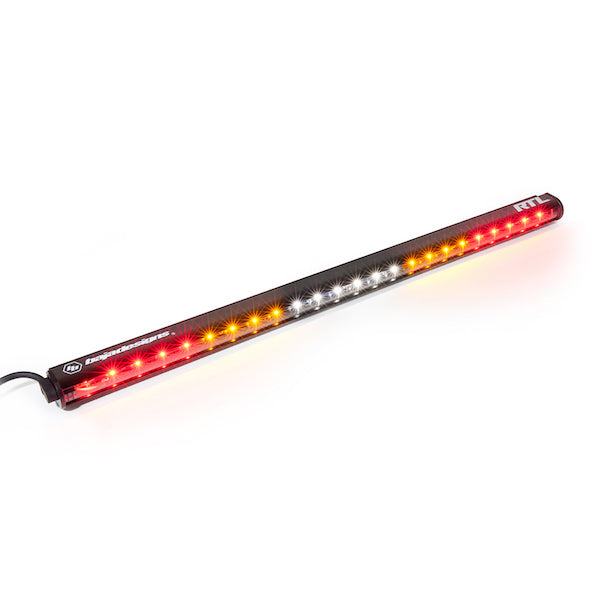

RTL - Features a running light, brake light, amber dust light, & white light
RTL-S - Features  a running light, brake light, flashing amber turn signals, & white work/cargo light.

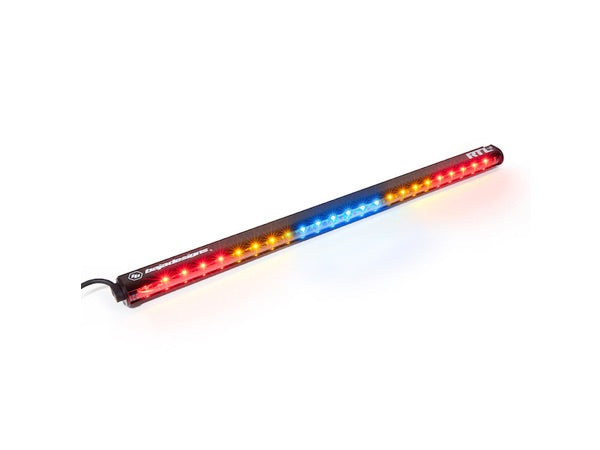

RTL-B - Features a running light (flashing/solid amber), brake light (flashing/solid), & blue safety light (Designated for slower moving vehicles)

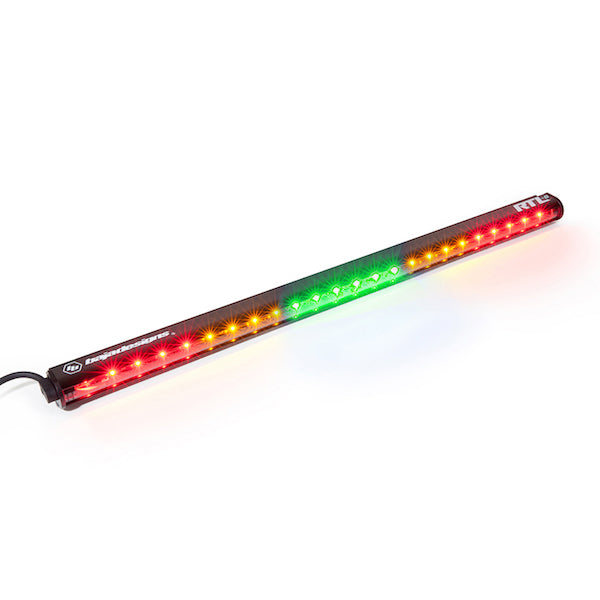

RTL-G - Features a running light (flashing/solid amber), brake light (flashing/solid), & green safety light (Designated for slower moving vehicles)

Baja Designs RTL LED Light Bar Features

Satisfaction Guaranteed - 30 Day Money Back Guarantee
Limited Lifetime Warranty - Complete Purchase Protection
MoistureBlock™ - Waterproof, Rain Proof, Submersible
CopperDrive® - Only LED Driven At 100%

Baja Designs RTL LED Rear Tail Light Dimensions & Specifications

NOTE: For additional technical details on this product including a wiring diagram, mounting hardware diagram and detailed warranty information, please see the Baja Designs RTL Data Sheet.

Wattage: Varies by model, see below
Dimensions: 32.125" x 2.15" x 1.5"
Weight: 3.75 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Hardware & Bracket Material: Stainless Steel

Standards of Compliance:

Exceeds MIL-STD810G – (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K – (Submersible up to 9ft & Pressure Washable)
IK10 Compliant – (Mechanical Impact Testing)

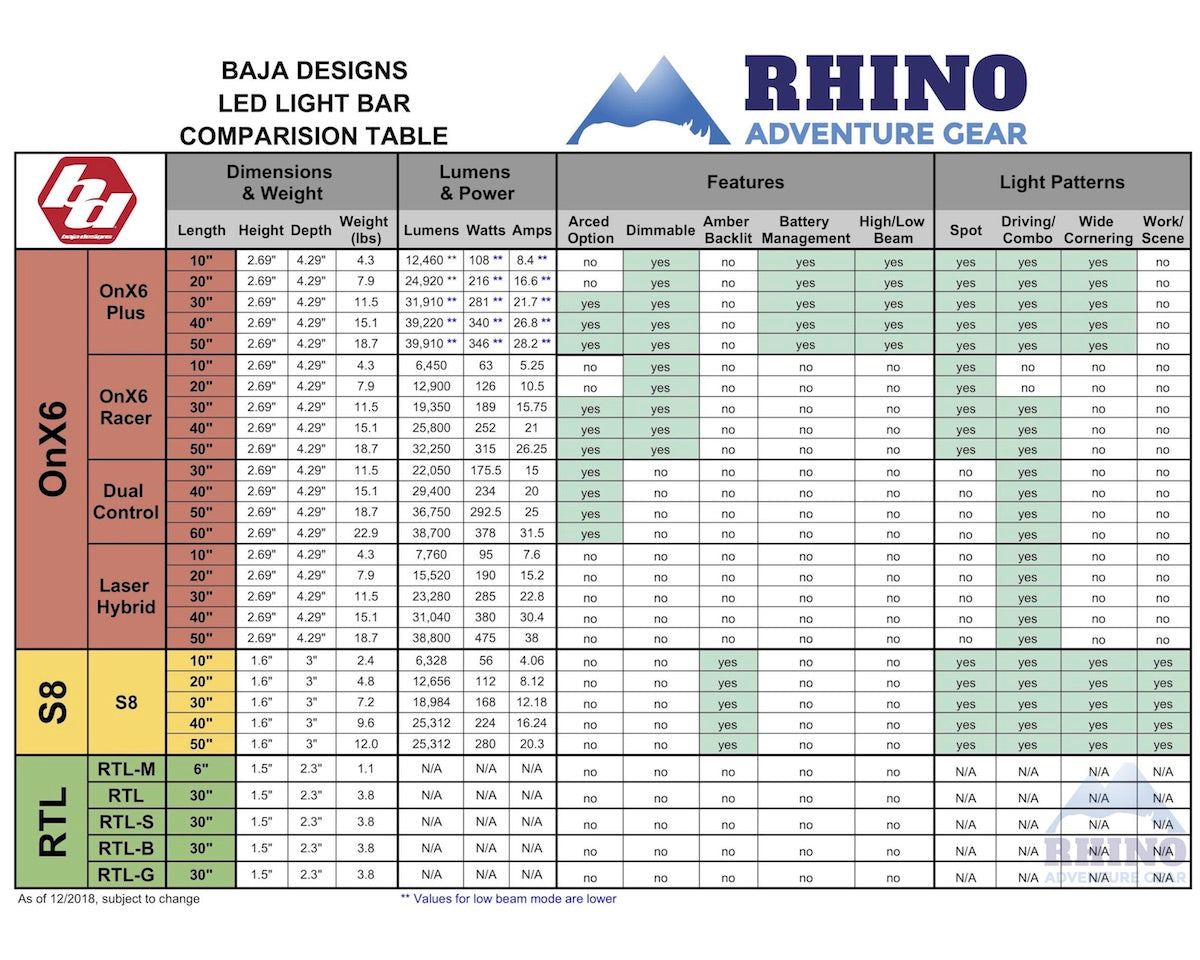

Model-Specific Wattage Information

RTL LED Rear Tail Light Wiring Requirements & Installation

PLEASE NOTE: all Baja Designs lighting products need to be wired in to 12V power. Installation of a wiring harness and/or accessories not included with purchase of the light will likely be required.

For additional technical details on this product including a wiring diagram, mounting hardware diagram and detailed warranty information, please see the Baja Designs RTL Data Sheet.

To discuss wiring options and get set up with a package that includes an appropriate wiring harness; or to request installation assistance, please don't hesitate to get in touch. We also offer & install sPOD switch controllers if you want a clean solution to integrate all your 12V accessories.

How to Mount an RTL to your Vehicle

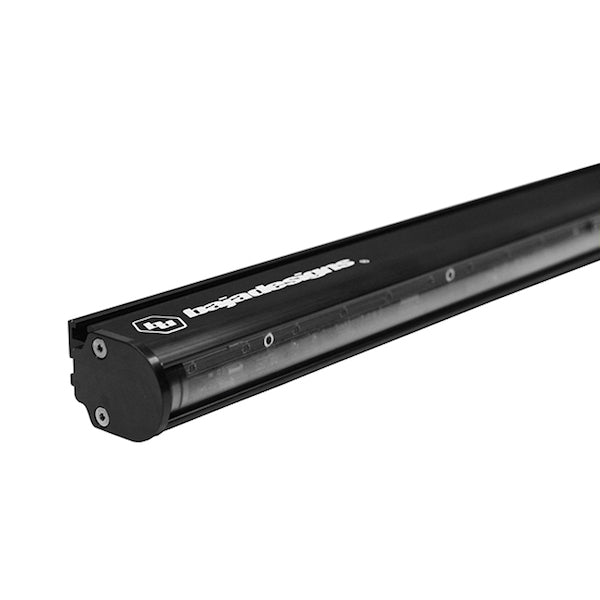

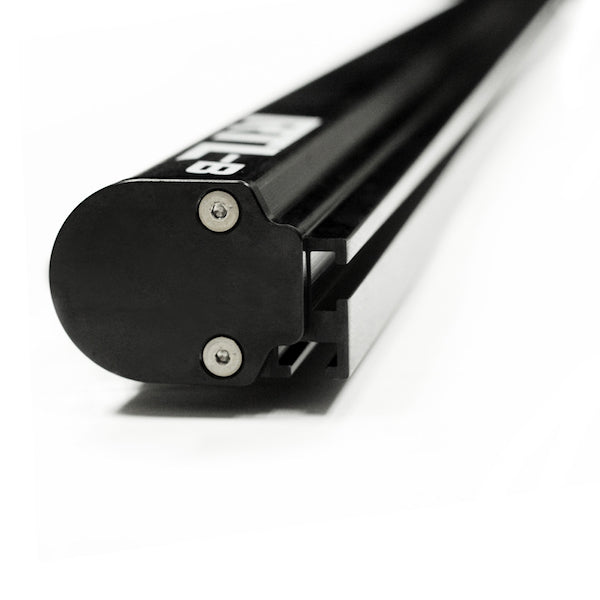

All Baja Designs Rear Tail Lights come with an integrated track system that allows you to adjust within the 30" width of the bar. The hex head provided 1/4 20 hardware slides in the ends of the of the bars and can be adjusted to suit your needs.

The RTL housing is equipped with a universal mounting system which allows it to be mounted both off the back of the housing, as well as the bottom. This allows for a variety of mounting options regardless of the size, spacing, or orientation of you mounting surfaces. The ideal mounting distance between hardware is 25".

Video Credit: Baja Designs

Baja Designs RTL & RTL-B Video

Video Credit: Baja Designs

Baja Designs RTL-S Video

Video Credit: Baja Designs
