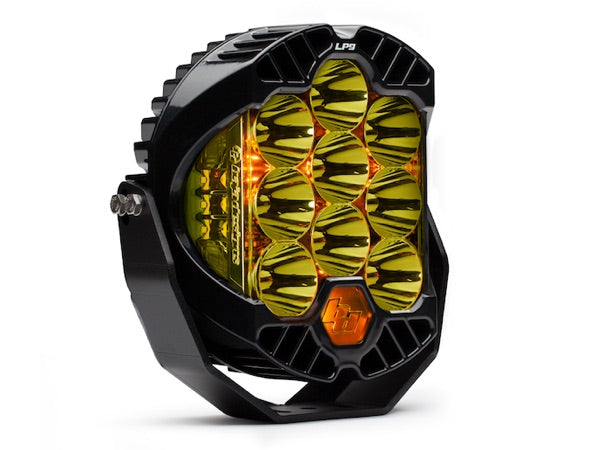

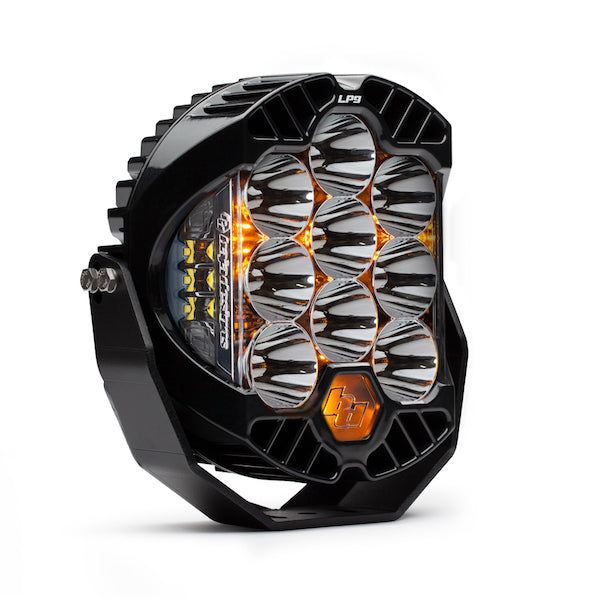

BAJA DESIGNS LP9 Racer Edition Forward Projecting LED Off Road Light

The LP9 Racer Edition is designed for the demands of high speed driving. The Racer has a similar power draw and lumen output to the LP9 Pro, but uses a specialized long-distance LED which is also focused into a much tighter pattern, providing higher visibility at greater distances. All LP9 models feature uService technology, which allows customers to change the lens pattern & color depending on driving conditions, or simply when they want to refresh the lens.

Racer Edition Spot Light Pattern Projects A Narrow 4° Beam Far Down Road

The LP9 Series of off road lights utilizes 9 forward projecting LEDs, plus 6 Integrated Peripheral Technology (IPT) LEDs. The IPT provides an incredible 200° spread of usable light. The housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With an amber day-time running backlight (Pro and Racer Editions only), low, and high power mode, the LP9 will fulfill all your lighting needs.

NOTE: this is the LP9 Racer Edition. For a similarly powerful LP9 light more suited to standard driving conditions, check out the LP9 Pro. Or if you're looking for a little less light with a similar aesthetic at a more economical price, have a look at the LP9 Sport, or the slightly smaller LP6 Pro.

All models feature uService technology, which allows customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.

Baja Designs LP9 Racer Edition Forward Projecting LED Off Road Light Features

Included:
LP9 Racer Edition LED Light
Mounting Bracket
** Wiring Harness is NOT included **

Baja Designs LP9 Racer Edition Key Features

• Direct Ducted Cooling (DDC) channels air through the housing to the heat sinks in the back, allowing the LEDs to run cooler and improving performance
• Integrated Peripheral Technology (IPT) gives a wide 200° spread of foreground lighting and pairs well with the forward projecting LEDs for the ultimate combination of distance and periphery lighting.
• Amber Backlight
• High Beam/Low Beam option
• 11,025 Forward Projecting Lumens + 2,280 IPT lumens

Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color

Baja Designs LP9 Video

Video Credit: Baja Designs

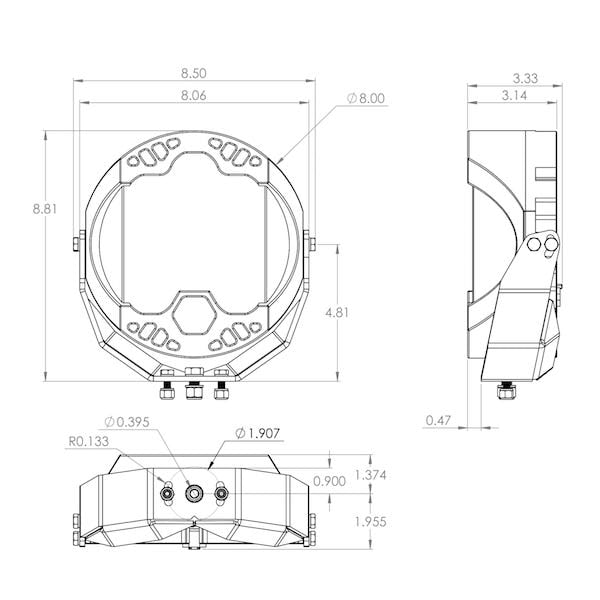

LP9 Racer Edition Forward Projecting LED Dimensions & Specifications

NOTE: For additional technical details on this product including a wiring diagram, uService instructions to swap out lenses/patterns, a mounting hardware diagram and detailed warranty information, please see the Baja Designs LP9 Data Sheet.

LP9 Racer Edition Specifications:

Forward Projecting Lumens: 11,025 Utilizing 9 LEDs
Forward Projecting Wattage/Amps:  105W / 7.6A

IPT Lumens: 2,280 Utilizing 6 LEDs
IPT Wattage/Amps: 21W / 1.52A

Dimensions: 8.1" H x 8.0" W x 3.3" D
Weight: 6.5lbs
LED Life Expectancy: 49,930 Hours
Front Lens:  Hard Coated Polycarbonate
Housing:  Hard Anodized Machined Aluminum
Bezel: Billet Machined Aluminum

Standards of Compliance:

Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)
Salt Spray Certified

LP9 Racer Edition Wiring Requirements & Installation

PLEASE NOTE: all Baja Designs lighting products need to be wired in to 12V power. Installation of a wiring harness and/or accessories not included with purchase of the light will likely be required.

To discuss wiring options and get set up with a package that includes an appropriate wiring harness; or to request installation assistance, please don't hesitate to get in touch. We also offer & install sPOD switch controllers if you want a clean solution to integrate all your 12V accessories.

Baja Designs LP9 Racer Edition Light Patterns

With Baja Designs uService design, you are able to swap out the front lens of your LED for a new lens. This means you can easily change the color and light pattern of your LP9 Racer Edition if you later change your mind about what lighting zone you prefer, or if you scratch up the original lens. Replacement lens kits come with a new lens for the light pattern of your choosing, and a fresh O-ring.

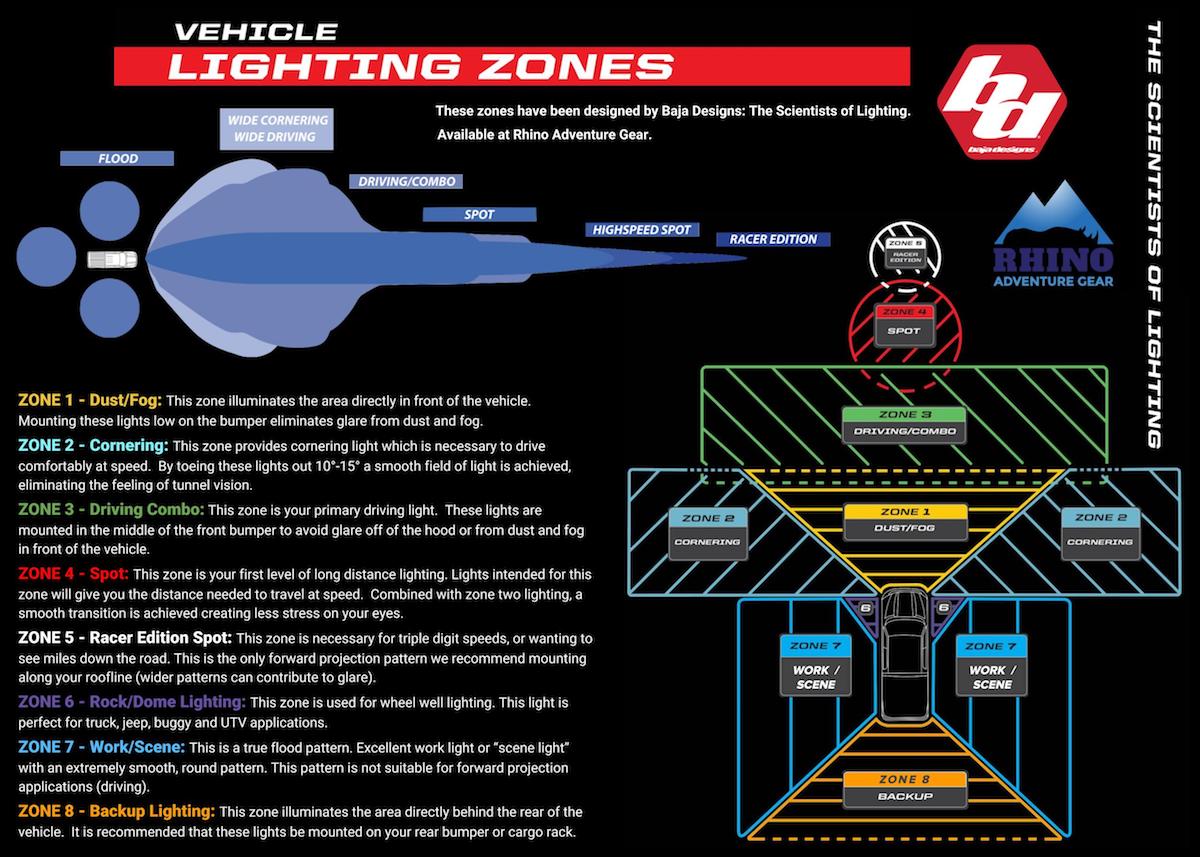

• Racer Edition Spot: A longer and narrower 4° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 5)
