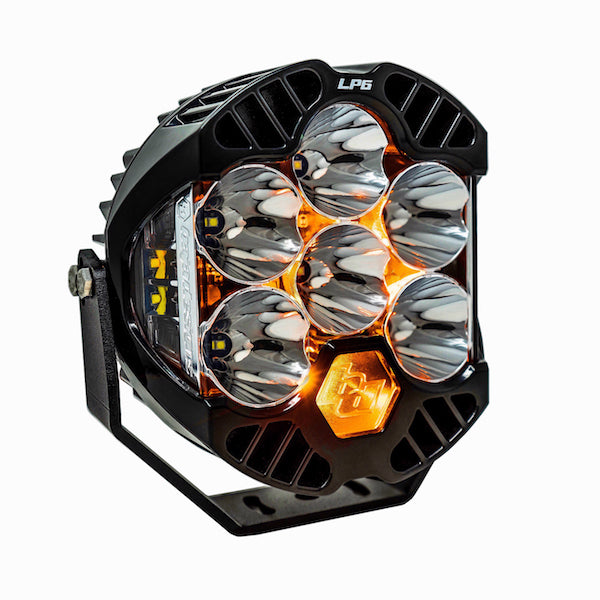

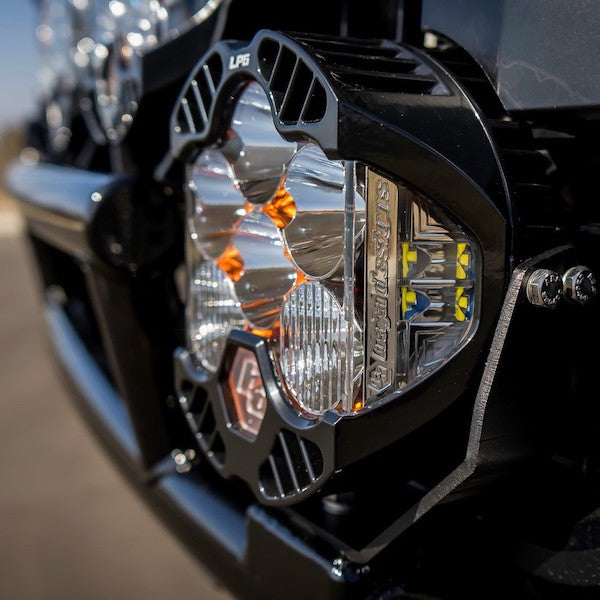

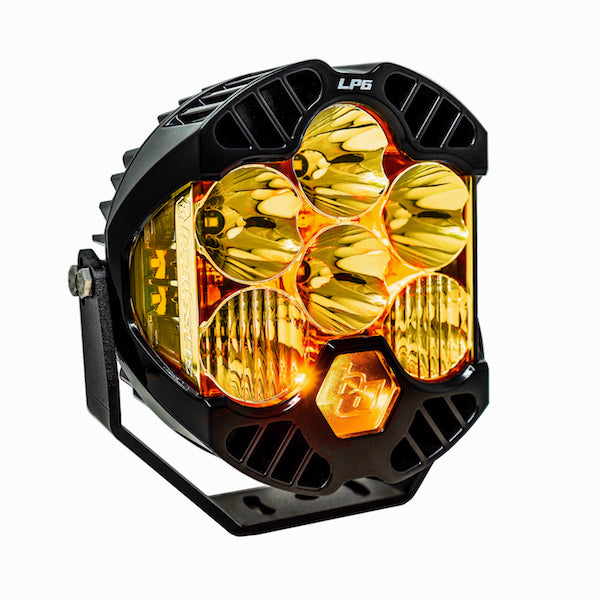

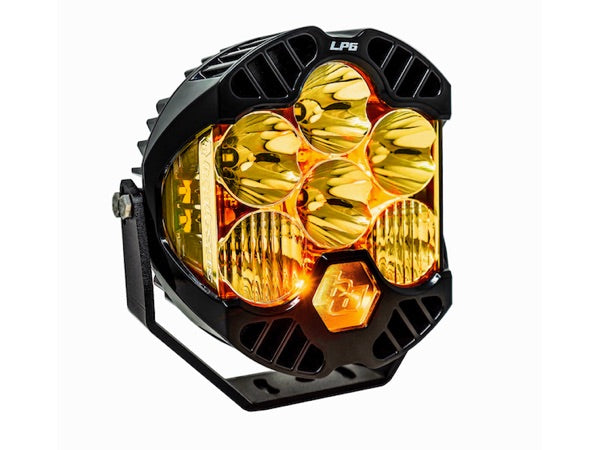

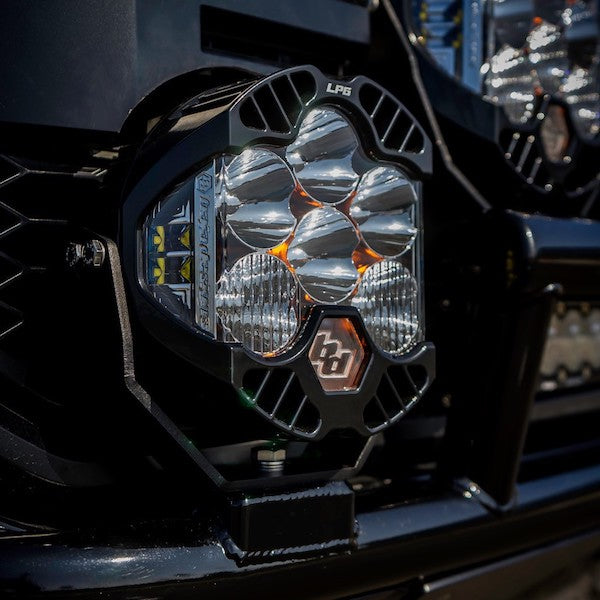

BAJA DESIGNS LP6 Pro Forward Projecting LED Off Road Light

Light Color/Pattern
SKU: BD-270003

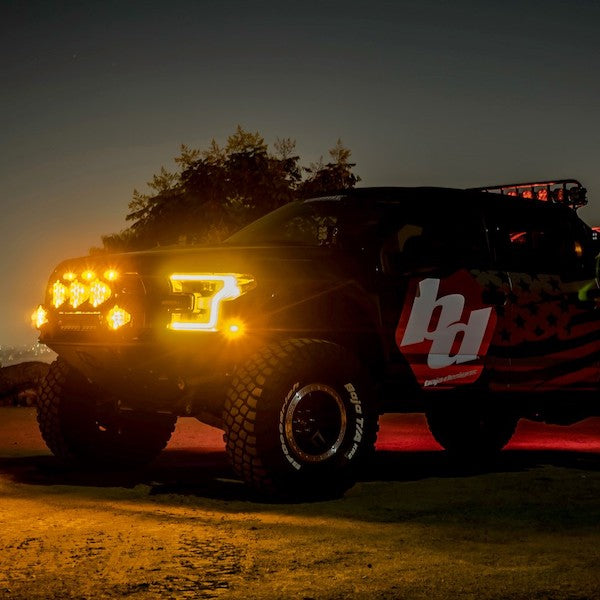

Following the massive success of the LP9 Series, at SEMA 2018 Baja Designs released the LP6- a smaller, yet impressively powerful light with a total of 10,300 lumens (8,600 forward projecting lumens). Out of a 6" housing, the LP6 utilizes six forward projecting LEDs, and 4 Integrated Peripheral Technology (IPT) LEDs to provide an incredible 200° spread of usable light. If you've been feeling like the Aux lights on the market are either too big or too small for your rig, the LP6 might be just right!

The housing of the LP6 provides exceptional heat dispersion by using Direct Ducted Cooling (DDC), which allows air to travel from the front of the housing to the rear. This feature allows air to travel through the front of the housing, over the rear heat sinks - drastically improving cooling capacity and thereby enhancing performance.

With an amber day-time running light, low power, & high-power mode, the LP6 will fulfill all your lighting needs.

PLEASE NOTE: Since it is such a new product, the LP6 Pro Data Sheet is still being developed. We will post it here as soon as Baja Designs releases it. As always, reach out if you have any questions on installation or integration with switch controllers etc.

Baja Designs LP6 Pro Forward Projecting LED Off Road Light Features

LP6 Pro LED Light
Mounting Bracket
** Wiring Harness is NOT included **

Baja Designs LP6 Pro Key Features

  • Direct Ducted Cooling (DDC) channels air through the housing to the heat sinks in the back, allowing the LEDs to run cooler and improving performance
  • Integrated Peripheral Technology (IPT) gives a wide 200° spread of foreground lighting and pairs well with the forward projecting LEDs for the ultimate combination of distance and periphery lighting.
  • Amber Backlight
  • High Beam/Low Beam option
  • 8,600 Forward Projecting Lumens + 1,700 IPT lumens

Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color

Baja Designs LP6 Video

Video Credit: Baja Designs

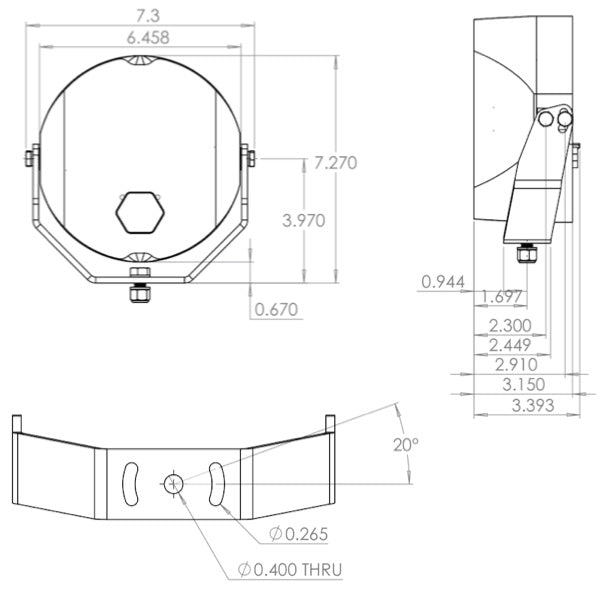

LP6 Pro Forward Projecting LED Dimensions & Specifications

LP6 Specifications:

Forward Projecting Lumens: 8,600 Utilizing 6 LEDs
Forward Projecting Wattage/Amps:  90W / 6.5A

IPT (Peripheral) Lumens: 1,700 Utilizing 4 LEDs
IPT (Peripheral) Wattage/Amps: 15W / 1.0A

Dimensions: 7.5" H x 6.5" W x 3.2" D
Weight: 4.2lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing:  Hard Anodized Machined Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel

Standards of Compliance:

Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)

IK10 Compliant (Mechanical Impact Testing)
Salt Spray Certified

LP6 Pro Wiring Requirements & Installation

PLEASE NOTE: all Baja Designs lighting products need to be wired in to 12V power. Installation of a wiring harness and/or accessories not included with purchase of the light will likely be required.

To discuss wiring options and get set up with a package that includes an appropriate wiring harness; or to request installation assistance, please don't hesitate to get in touch. We also offer & install sPOD switch controllers if you want a clean solution to integrate all your 12V accessories.

Baja Designs LP6 Pro Light Patterns

With Baja Designs uService design, you are able to swap out the front lens of your LED for a new lens. This means you can easily change the color and light pattern of your LP6 Pro if you later change your mind about what lighting zone you prefer, or if you scratch up the original lens. Replacement lens kits come with a new lens for the light pattern of your choosing, and a fresh O-ring.

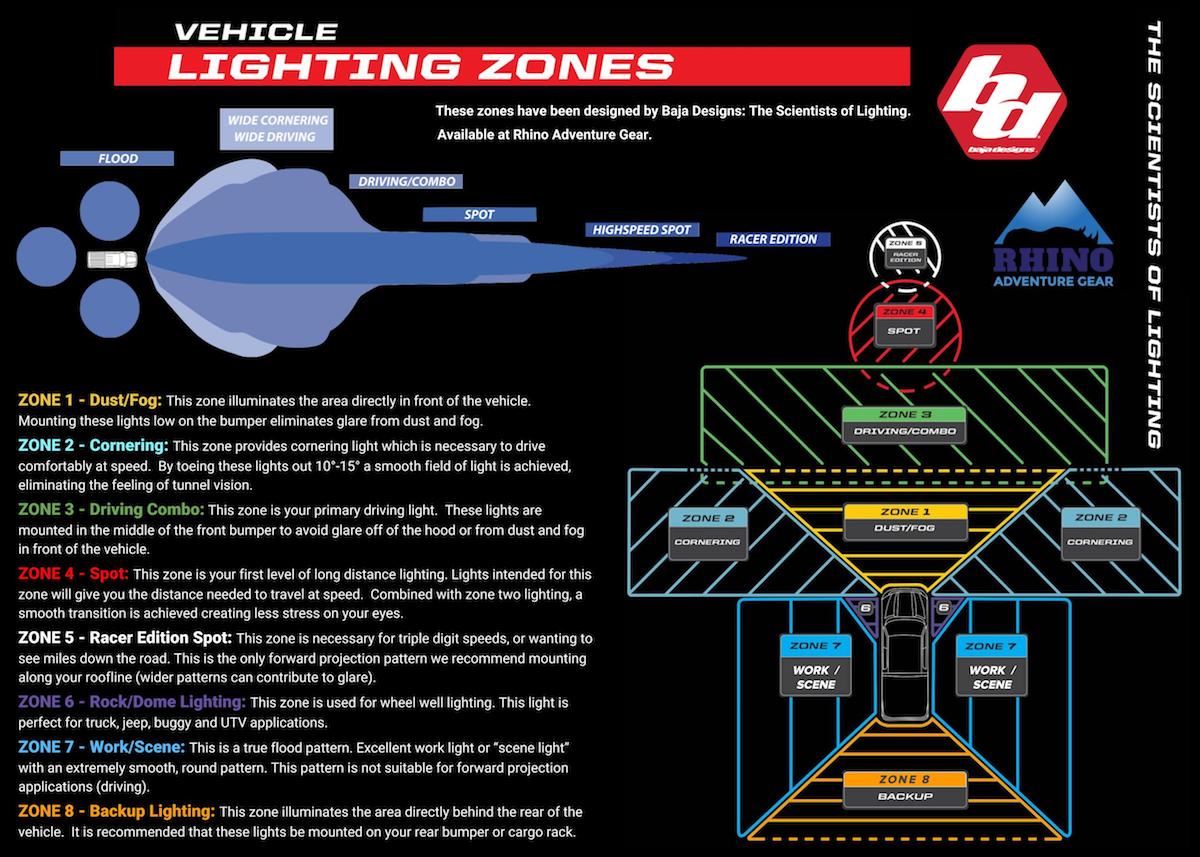

Baja Designs Vehicle Light Patterns Chart
  • Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Cornering (42°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

  • High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
