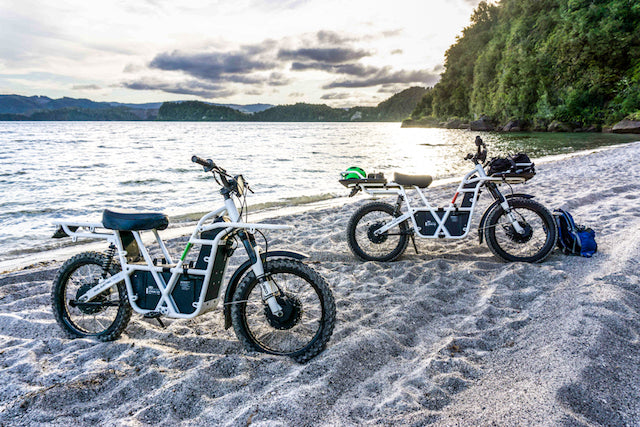

      Ubco 2x2 Electric Adventure Bike

      **NOTE** Please call or email to schedule a test drive at our showroom. No motorcycle license is required, a regular drivers license is sufficient for legal on-road use of the Dual Use Ubco 2x2.

      Dual Use Model Features Highlights

      • Dual use on- or off-road (street legal and ready for off-road adventures)
      • Improved 52.2 Ah Lithium-ion power pack
      • 75 mile max range (can be doubled with a spare battery)
      • 6 - 8 hour charge time
      • 139 lbs curb weight- light enough for a vehicle bike rack
      • 330 lbs carrying capacity
      • 30 mph top speed
      • 110V or 240V charger
      • See below for more details on electrical, suspension, etc.

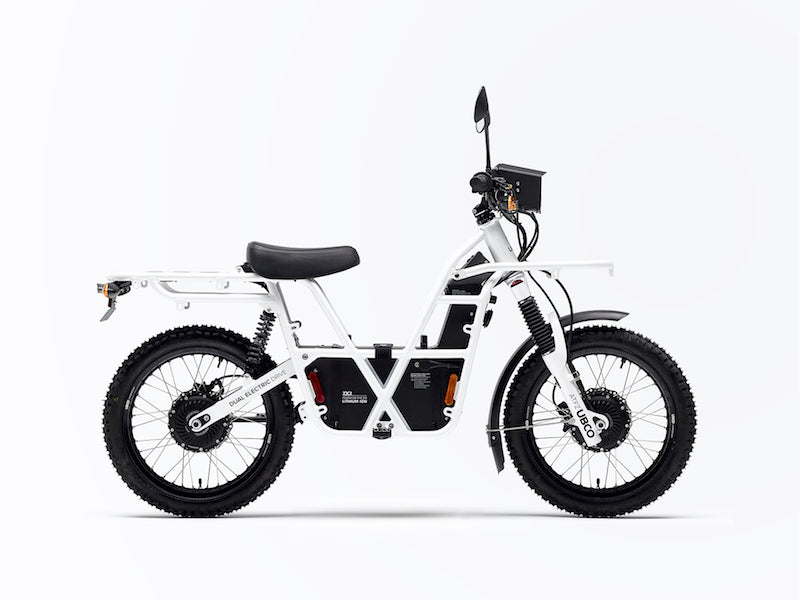

      SuperX Step Through Frame

      Low center of gravity- more stability and better balance
      Easy to mount and dismount

      7000 Series Alloy

      Lightweight and strong
      High load capacity

      17 x 2.5" Multi-Use Tires

      Suitable for both on road and all-terrain surfaces
      Long life and ultimate grip

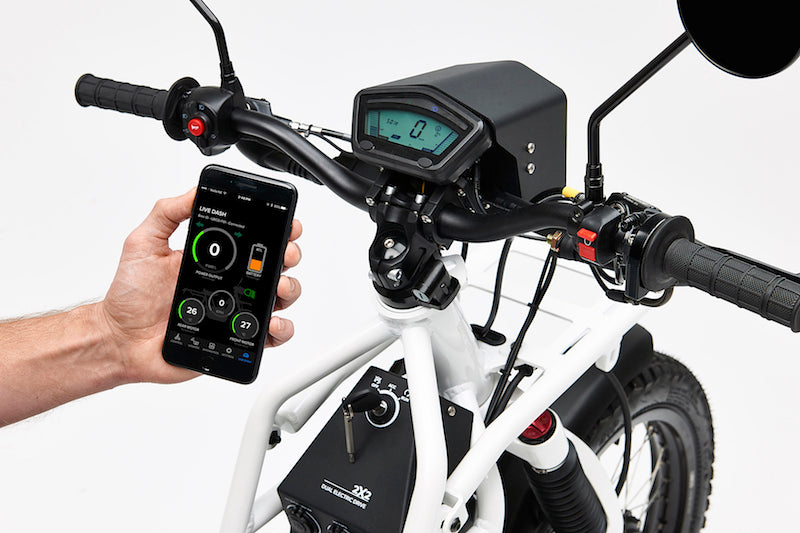

      LCD Display

      Greater control to keep track of your riding
      Monitor speed, trip distance, power output, battery level, and time of day

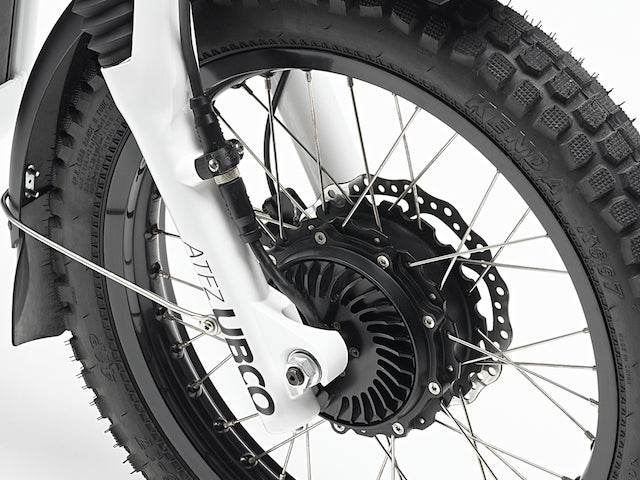

      All-Terrain (AT) Suspension

      Ubco ATFZ front fork with 130mm travel for a smooth ride
      Die-cast aluminum lowers
      with torque arm.
      37.5mm high tensile steel chrome plated stanchions.
      32mm Ubco ATR rear shocks with 120mm travel.

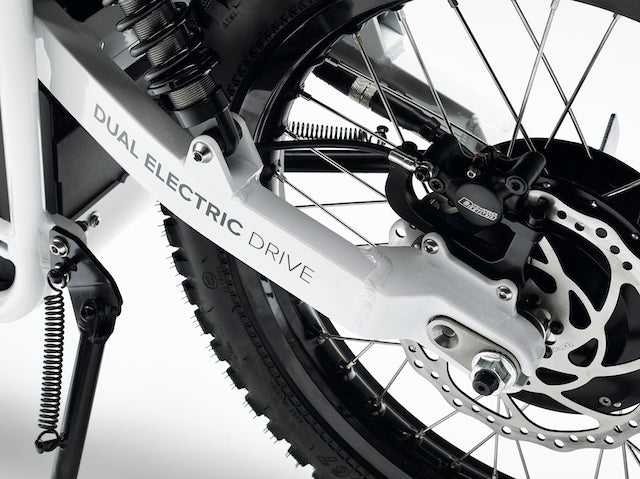

      Dual Electric Drive

      No clutch – unmatched low-speed control and improved handling on- and off-road
      Better acceleration and traction in slippery conditions- no getting stuck in the mud
      Better grip off road
      Ascends gradients of up to 30%
      Very low maintenance- no oil changes or engine specific replacements

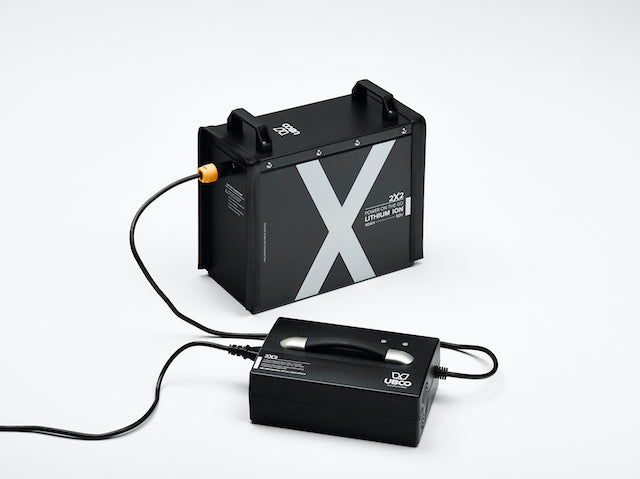

      Portage Lithium-Ion Battery System

      48Ah rated, 50V Lithium-ion portable power pack.

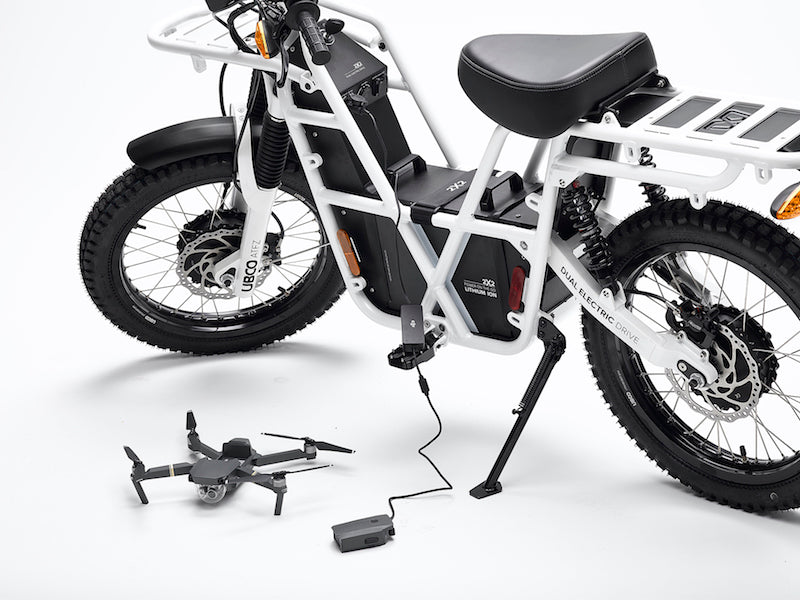

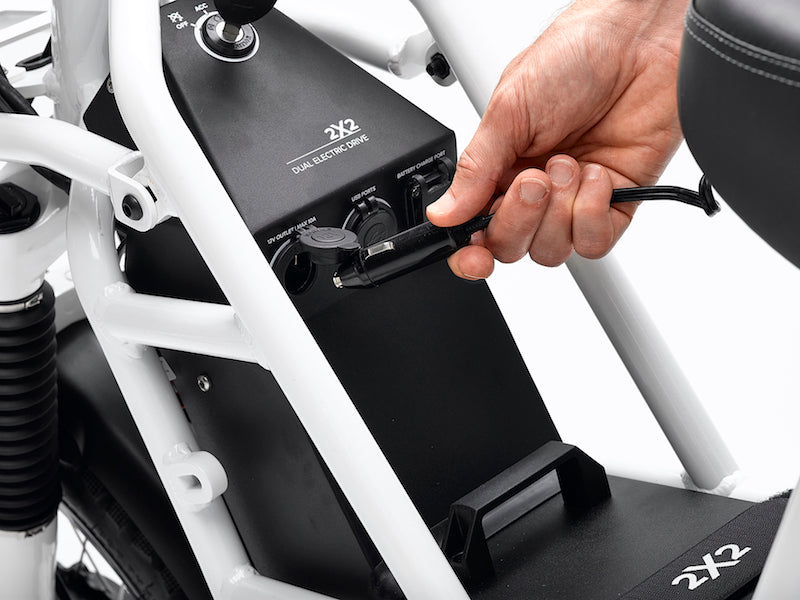

      Charge
      your tools and handheld devices on the go using 12V and dual USB outputs
      Long range (75 miles) with quick and economical charge time
      – 6-8 hours
      No smoke or noise
      No chains, gears or clutch just flip the switch and twist to go

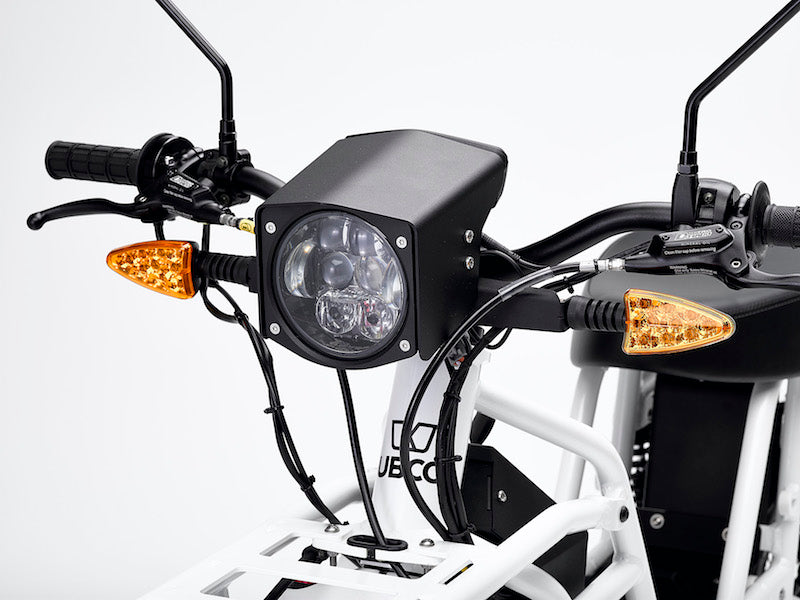

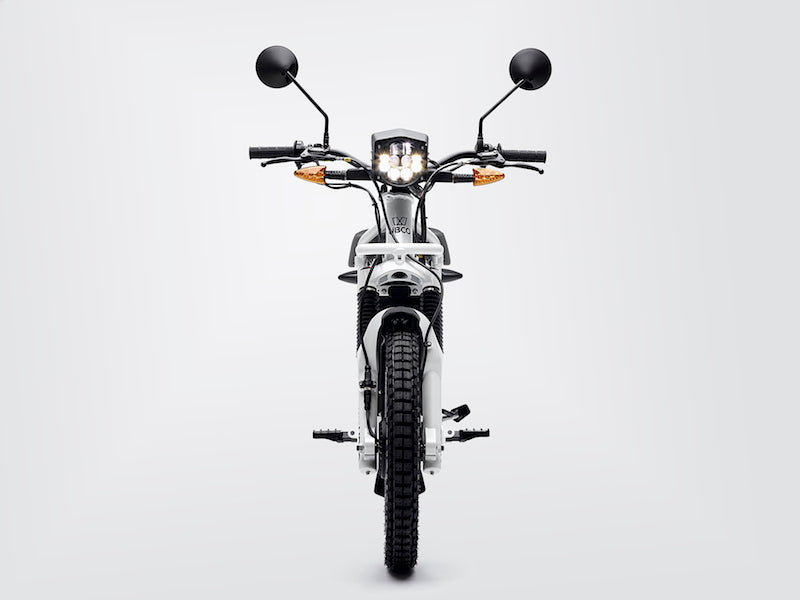

      High-Intensity LED

      120mm diameter headlight.
      Low beam
      approximately 1300 lumens.
      High beam
      approximately 2230 lumens.
      LED rear, brake and number plate lights.
      LED directional indicators.
      Long life.
      High intensity.

      Lugs

      Easily customize to attach storage or anchor gear

      Connectivity and User Input

      Bluetooth compatible with the Ubco User App.
      Integrated ECU (Engine Control Unit) allows users to directly communicate with the 2×2 and control lighting, motor controllers, display and rider controls
      Talk directly to the bike.



      2018 Model Technical Specifications

      Dimensions

      Height* (excl. mirrors) 42″
      Length* (excl. number plate) 72″
      Width (handlebars) 31.5″
      Wheelbase 47″
      Seat height 31.5″
      Curb weight 139lbs
      Carrying capacity including rider 330lbs including rider
      Typical cost to recharge Under 70c

      *Height / Length measures are approximate

      Drivetrain

      Transmission Single Stage Planetary Gear Reduction with an integrated radiator for enhanced heat dissipation

      Electrical System

      Motor Two 1 Kilowatt peak brushless DC, air-cooled hub, Flux Drive motors
      Controller Two high power density controller with over-heating protection
      Power pack Ubco Lithium-Ion 52.2Ah (48Ah rated), 50V battery
      Charger type 100-240V 350W, wall or bench mount
      Charge time 6-8 hours
      Input Bluetooth with user app/USB
      Ports Two USB charging ports (1A & 2.5A) and one 12V outlet (10A max)

      Communication

      Integrated Engine Control Unit (ECU) Directly controls lighting, motor controllers, display, rider controls and Bluetooth connection

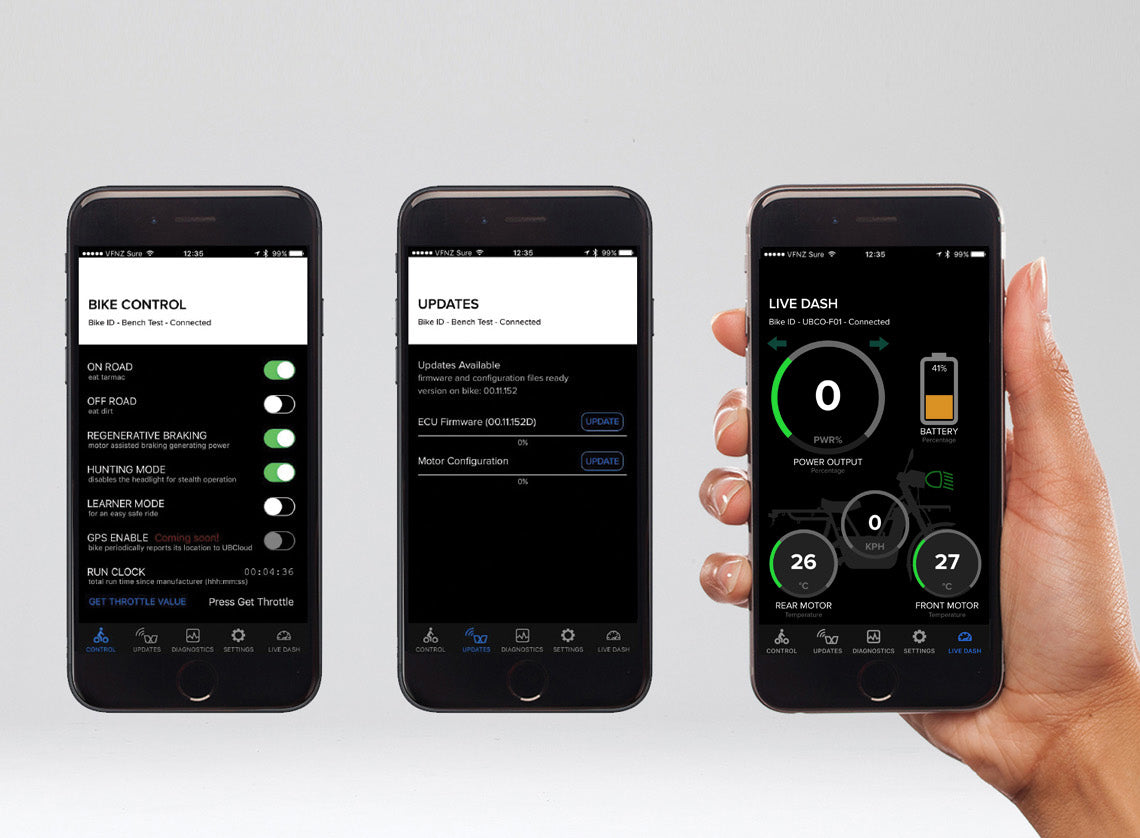

      Ubco User App (iOS or Android) allows bluetooth connection between your smartphone and your 2x2, so you can update the bike, diagnose faults and choose between on- and off-road riding modes, a learner mode, or a hunting mode for a stealthier approach.

      Chassis / Suspension / Brakes

      Front suspension 37.5mm custom Ubco front fork with rebound adjustment
      Rear suspension 32mm shock with adjustable spring preload and rebound damping
      Front suspension travel 130mm
      Rear suspension travel 120mm
      Brakes Tektro Dorado front and rear brakes, 203 x 2.3mm rotors, high power hydraulic calipers
      Wheels 17 x 1.85″ aluminum rims
      Tires 17 x 2.75″ Kenda K667 tires

      Lighting

      LED Headlight 120mm diameter
      Low beam 1330 lumens, 27.6W
      High beam 2230 lumens, 36W
      Additional lighting LED rear, brake, number plate and directional lights

      Performance

      Range 75mi, max range will vary depending on terrain and carry load
      Power 2.4kWh
      Torque 90Nm
      Top speed 30 mph

      Vehicle Class / License Requirements

      Motor-driven cycle or moped.

      Warranties

      Frame warranty 3 years
      Battery warranty 2 years
      Motor warranties 2 years
      Parts / Components 6 months
