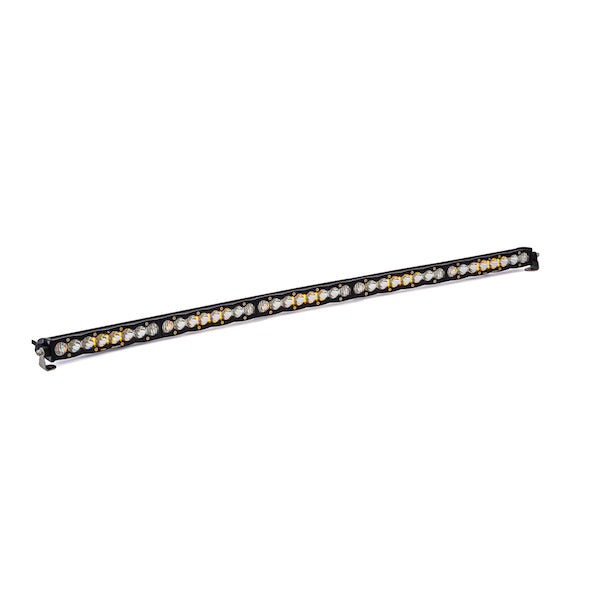

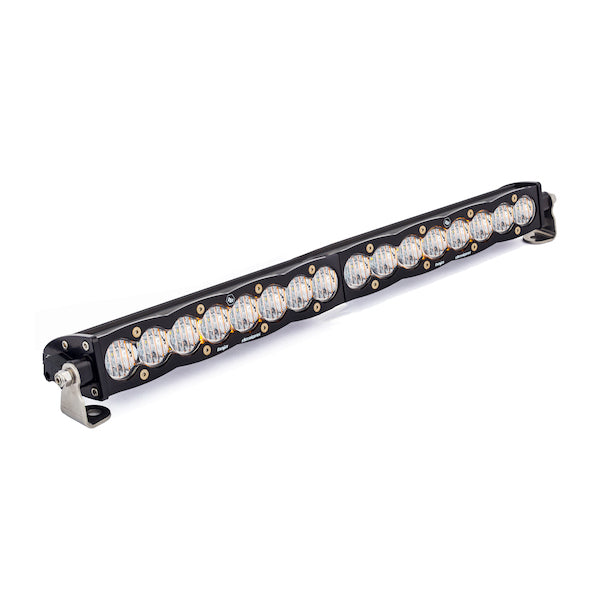

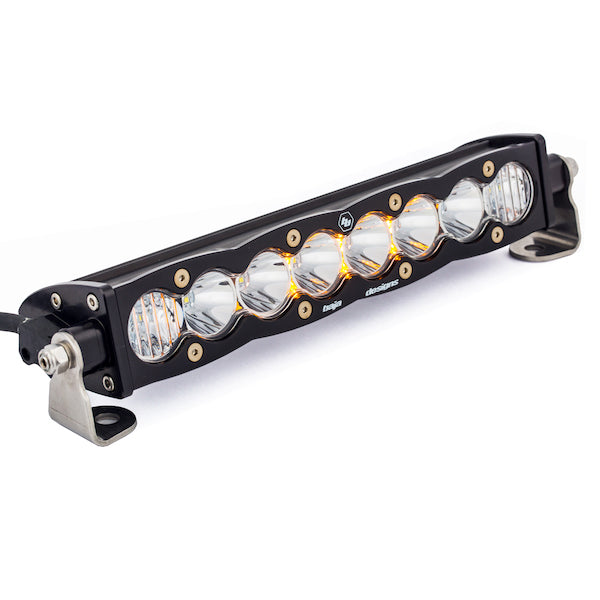

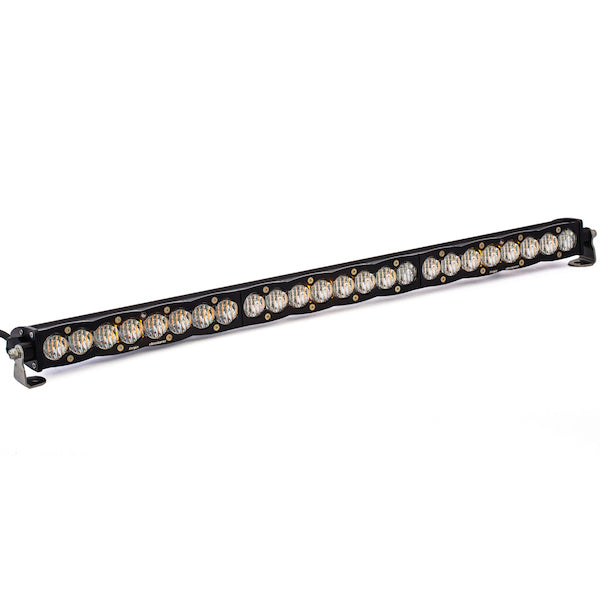

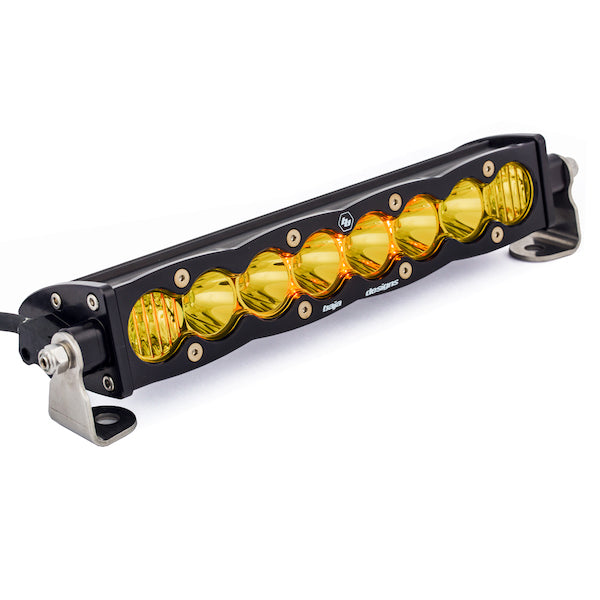

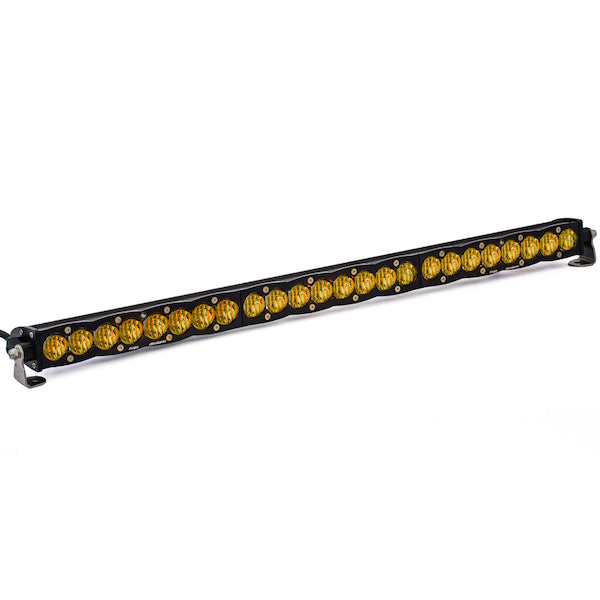

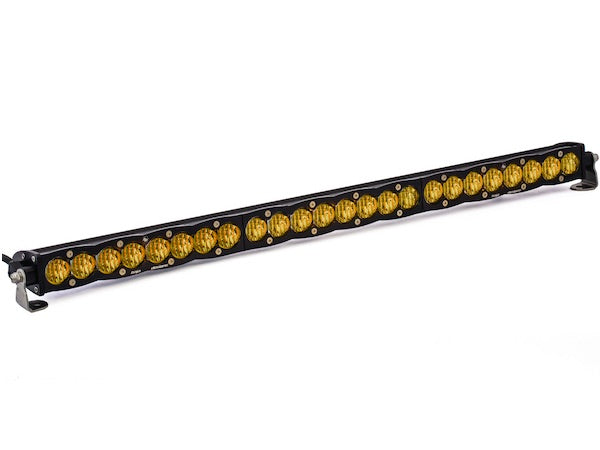

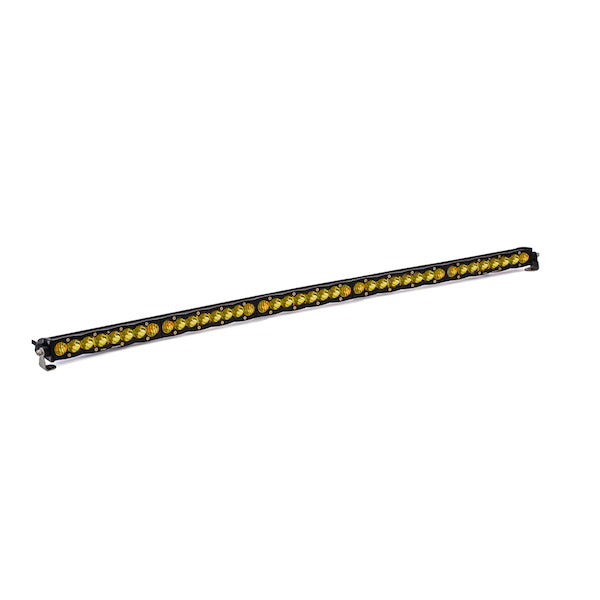

BAJA DESIGNS S8 LED Light Bar (10" - 50")

From the sleek scalloped aluminum housing to the upgraded reflectors and amber backlit feature, Baja Designs has nailed it again with the S8 Light Bar. Each 10" segment has 8 Cree LEDs that produce 6,328 lumens of 5000K daylight and draw only 4.06 amps of current. The S8 is backed by a 30 Day Satisfaction Guarantee and a Limited Lifetime Warranty, giving you the ultimate purchase protection.

Included:

S8 LED Light Bar
Mounting Brackets
** Wiring Harness is NOT included **

Baja Designs S8 Light Bar Features

S8 LED Light Bar Key Features

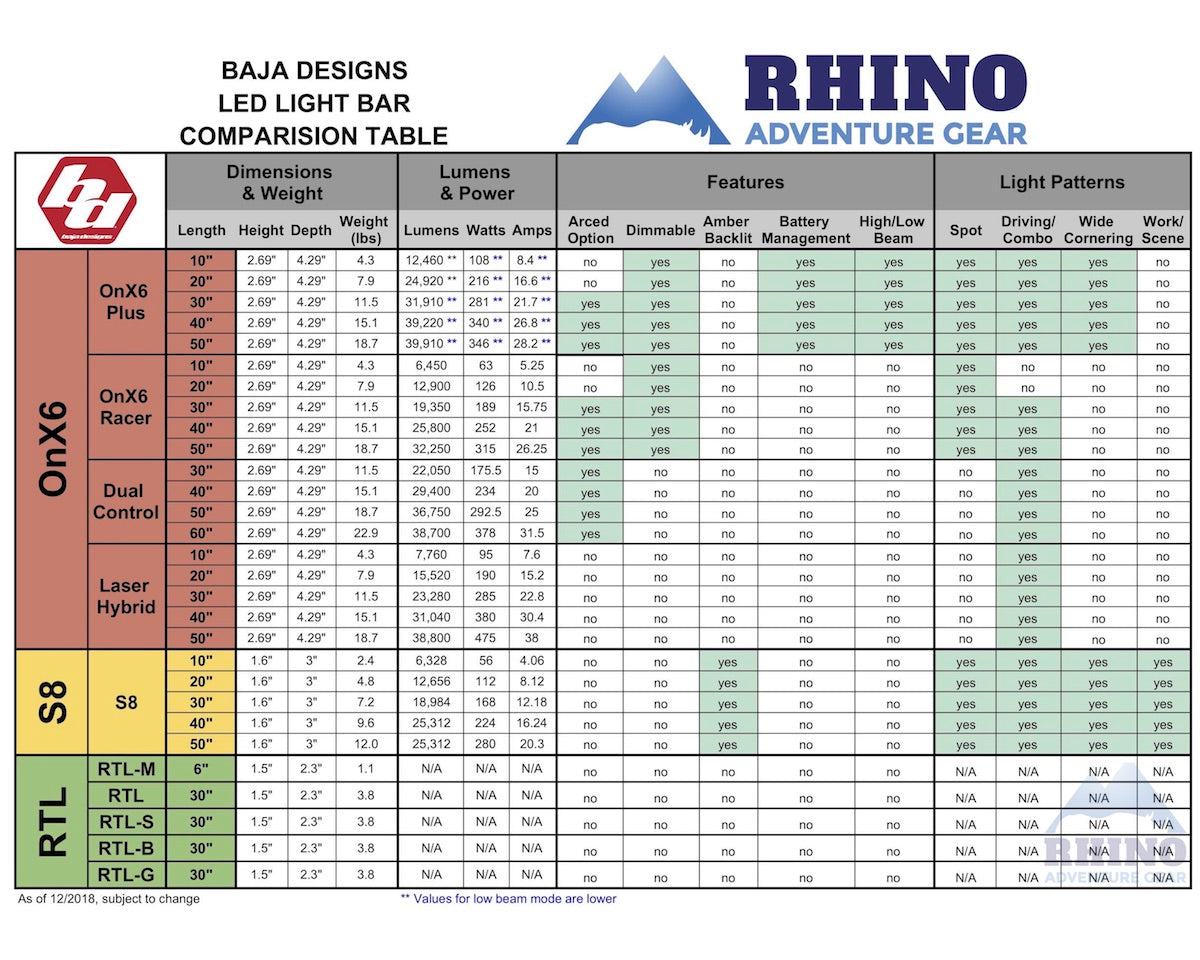

Baja Designs S8 LED Light Bar Dimensions & Specifications

NOTE: For additional technical details on this product including a wiring diagram, uService instructions to swap out lenses/patterns, a mounting hardware diagram and detailed warranty information, please see the Baja Designs S8 Light Bar Data Sheet.

Specifications:
Lumens: 6,328 Utilizing 8 Cree LEDs per 10" segment
Wattage/Amps:  56W / 4.06A per 10" segment
Dimensions: (10” - 50") x 3” x 1.6”
Weight: 2.4 lbs per 10" section
LED Life Expectancy: 49,930 Hours
Front Lens:  Hard Coated Polycarbonate
Housing:  Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel

Standards of Compliance:

Exceeds MIL-STD810G (Mil-Spec Testing- Low Temperature Test, High Temperature, Temperature & Humidity, Thermal Shock Cycling, Dust, Random Vibration, Mechanical Shock, Low Pressure & Drip Box Water)
Built-In Overvoltage Protection
IP69K (Submersible up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)
Salt Spray Certified

Baja Designs S8 LED Light Bar Light Patterns

With Baja Designs uService design, you are able to swap out the front lens of your LED for a new lens. This means you can easily change the color and light pattern of your S8 Light Bar if you later change your mind about what lighting zone you prefer, or if you scratch up the original lens. Replacement lens kits come with a new lens for the light pattern of your choosing, and a fresh O-ring.

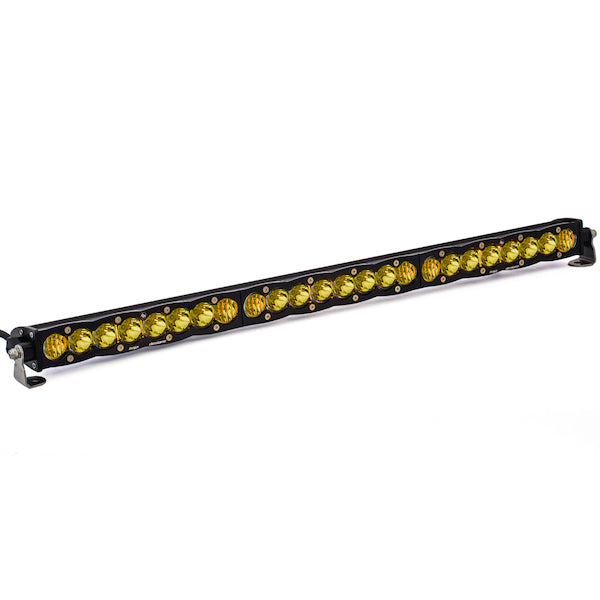

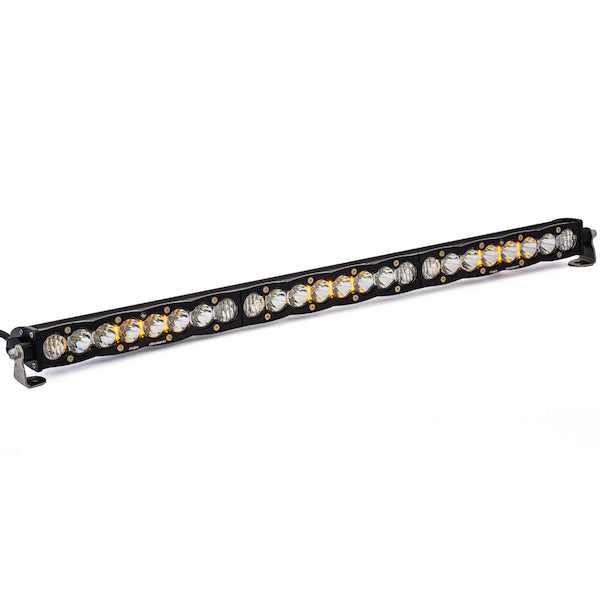

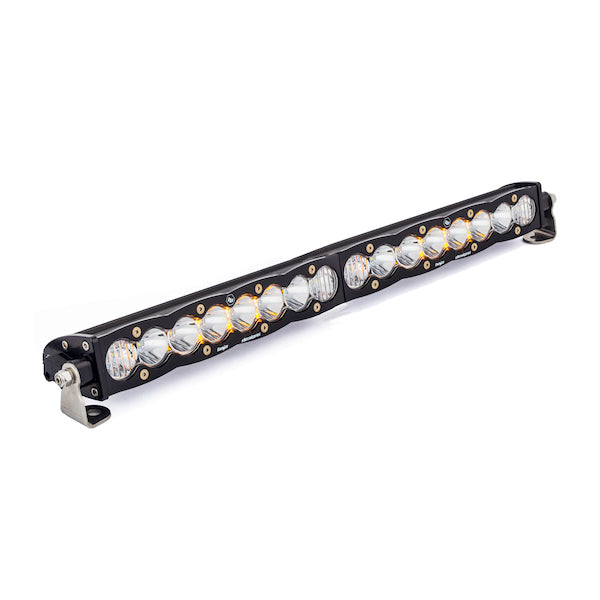

• Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Cornering (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance. (Lighting Zone 3)

• Spot: A longer and narrower 9° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

• Wide Cornering: Baja Designs was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Cornering pattern offers a 44° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

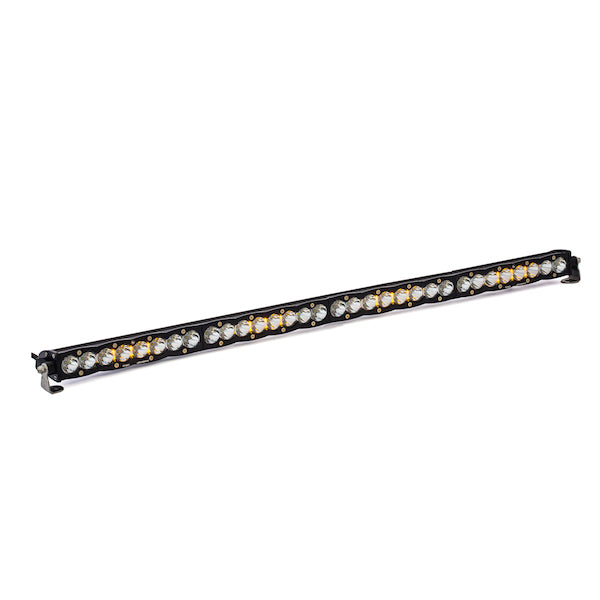

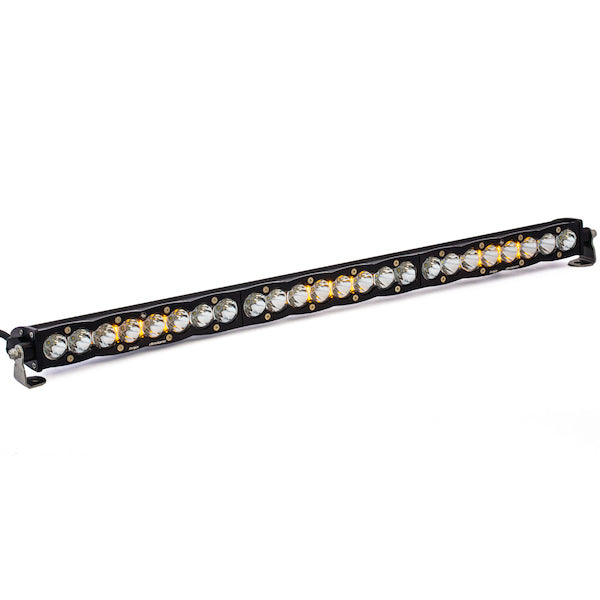

• Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft.  *This pattern is similar to a flood light and is not suitable for driving.*
