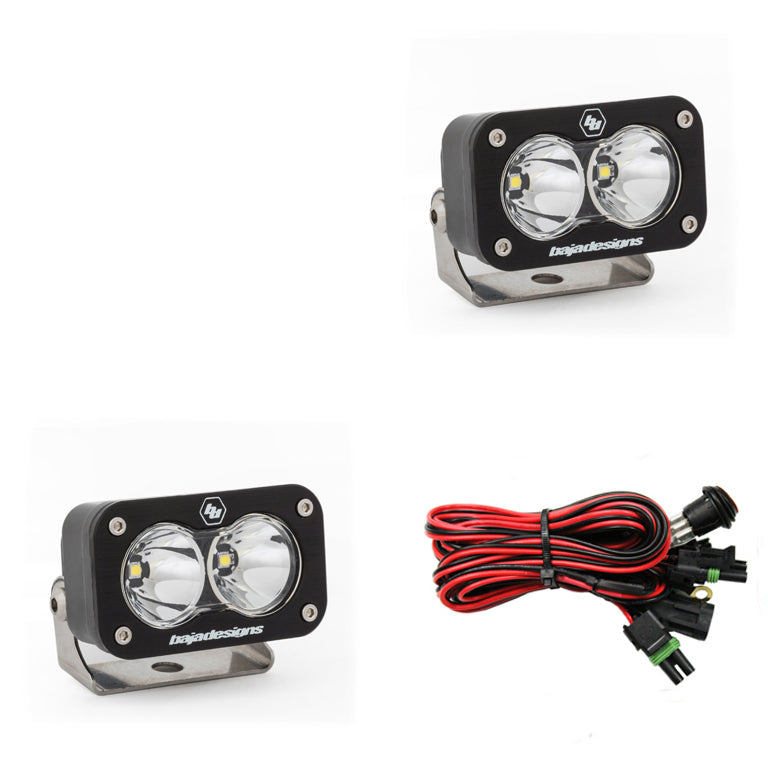

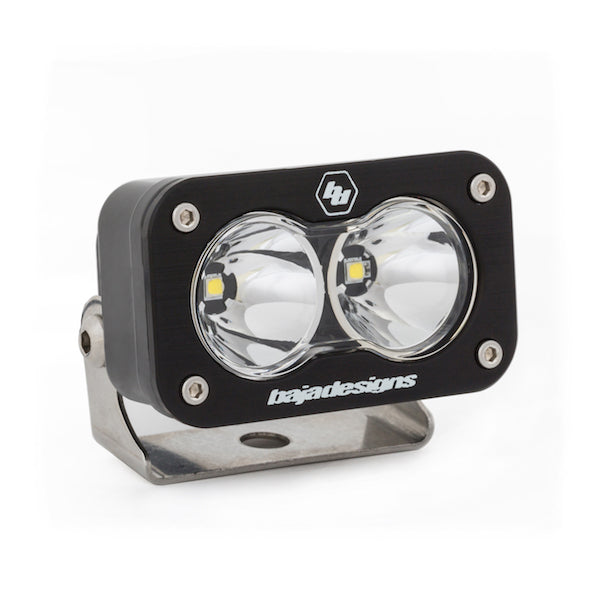

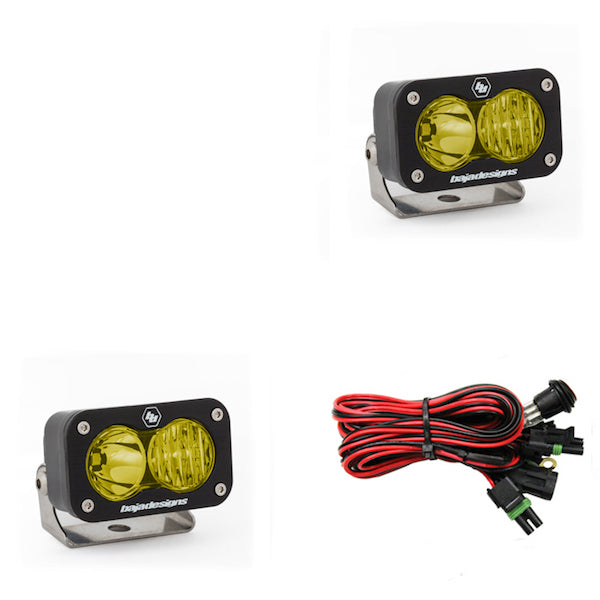

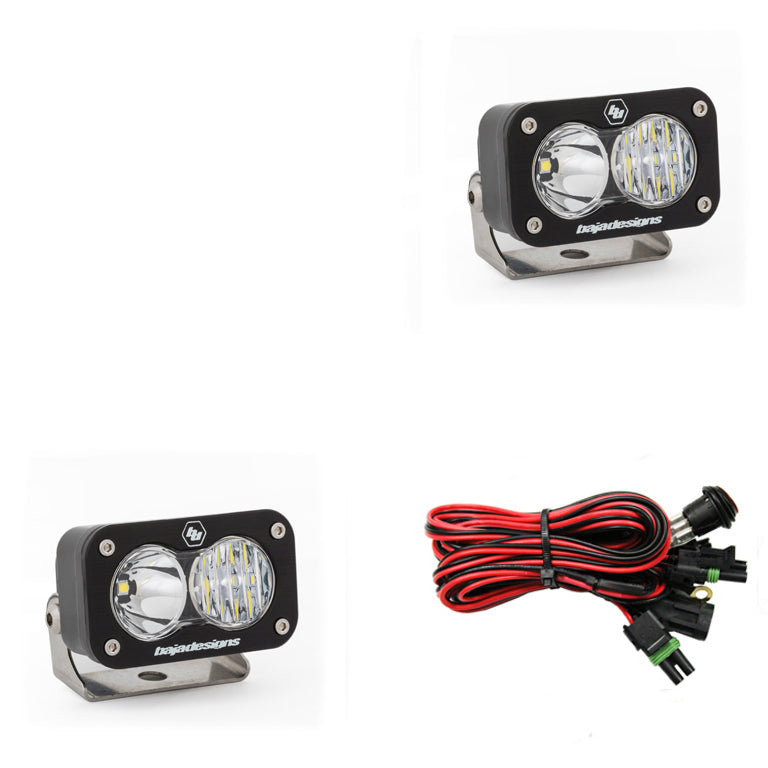

BAJA DESIGNS S2 Sport Off Road LED Light (Single, Pair, Backup Kit)

The S2 Sport features the same quality, fit, and finish that is synonymous with the Baja Designs name, at an attractive price point. The S2 Sport is ideal as a fog, cornering, rack, or reverse light and much more. A compact and powerful light, featuring quality that is second to none.

Included:

S2 Sport LED Light
Mounting Bracket
** Wiring Harness is NOT included **

Baja Designs S2 Sport Off Road LED Light Features

Baja Designs S2 Sport Off Road LED Light Key Features

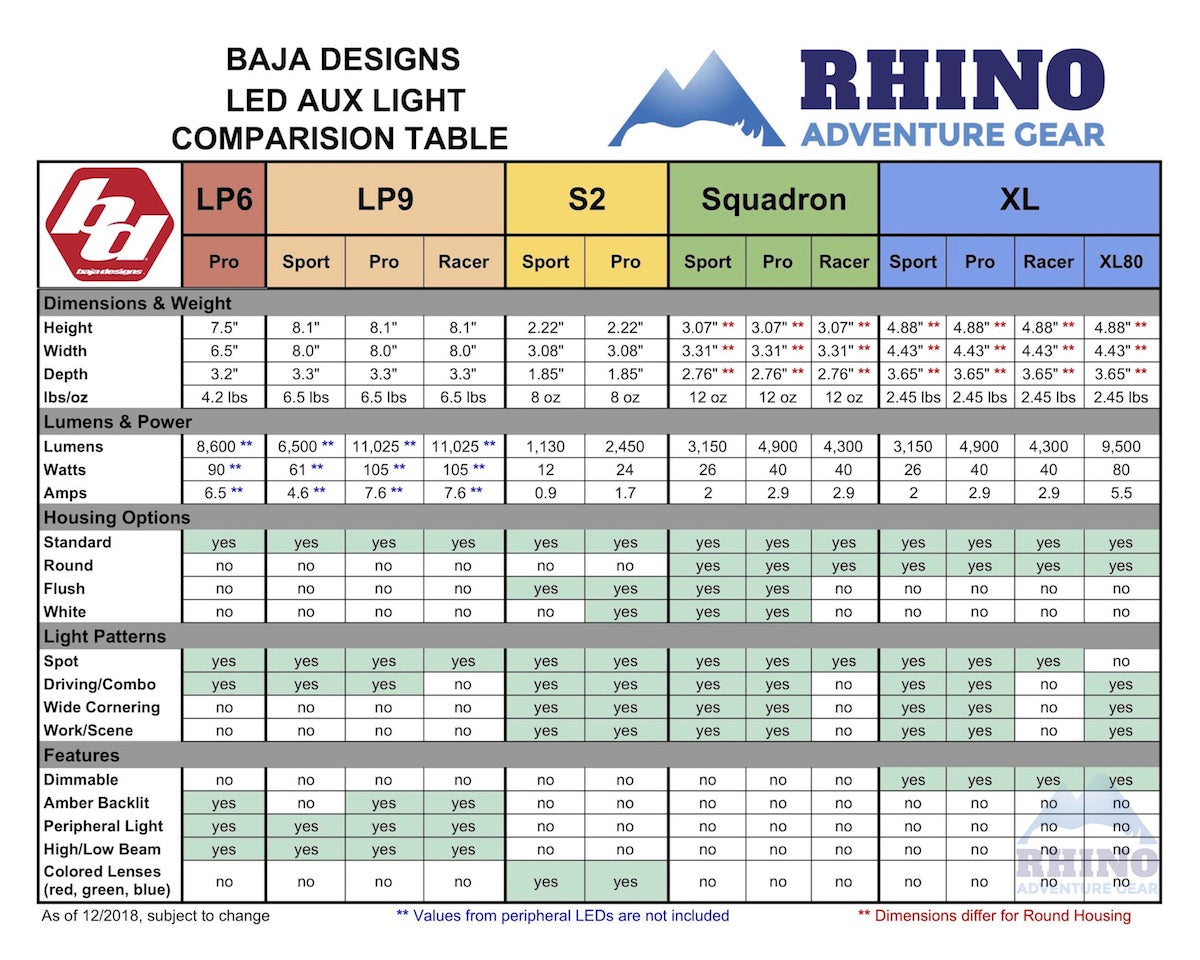

Baja Designs S2 Sport Off Road LED Light Dimensions & Specifications

NOTE: For additional technical details on this product including a wiring diagram, uService instructions to swap out lenses/patterns, a mounting hardware diagram and detailed warranty information, please see the Baja Designs S2 Sport Data Sheet.

Lumens: 1,130 Utilizing 2 Cree XM-L2 LEDs
Wattage/Amps: 12W / 0.9A

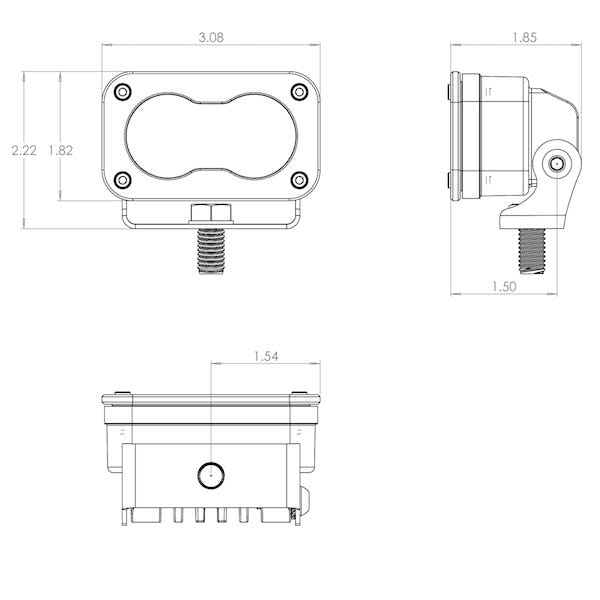

Dimensions: 2.22" H x 3.08" W x 1.85" D
Weight: 8 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Hard Anodized & Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel

Standards of Compliance:

MIL-STD-810G Certified - (Low Temperature Test, High Temperature, Temperature & Humidity, Thermal Shock Cycling, Dust, Random Vibration, Mechanical Shock, Low Pressure, & Drip Box Water)
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69k Certified – (Submersible to 9ft)
IK10 Compliant – (Mechanical Impact Testing)
Salt Spray Certified

S2 Sport LED Light Wiring Requirements & Installation

PLEASE NOTE: all Baja Designs lighting products need to be wired in to 12V power. Installation of a wiring harness and/or accessories not included with purchase of the light will likely be required.

To discuss wiring options and get set up with a package that includes an appropriate wiring harness; or to request installation assistance, please don't hesitate to get in touch. We also offer & install sPOD switch controllers if you want a clean solution to integrate all your 12V accessories.

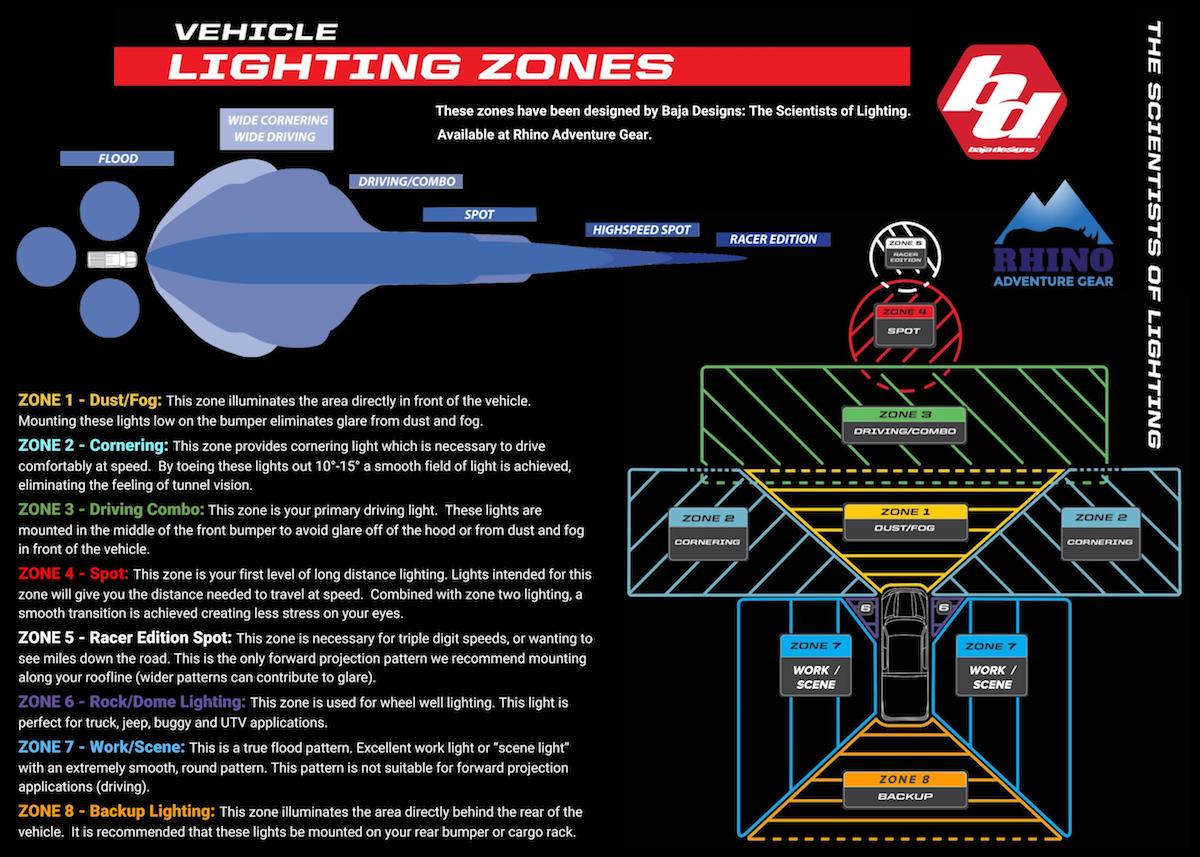

Baja Designs S2 Sport Light Patterns

With Baja Designs uService design, you are able to swap out the front lens of your LED for a new lens. This means you can easily change the color and light pattern of your S2 Sport if you later change your mind about what lighting zone you prefer, or if you scratch up the original lens. Replacement lens kits come with a new lens for the light pattern of your choosing, and a fresh O-ring.

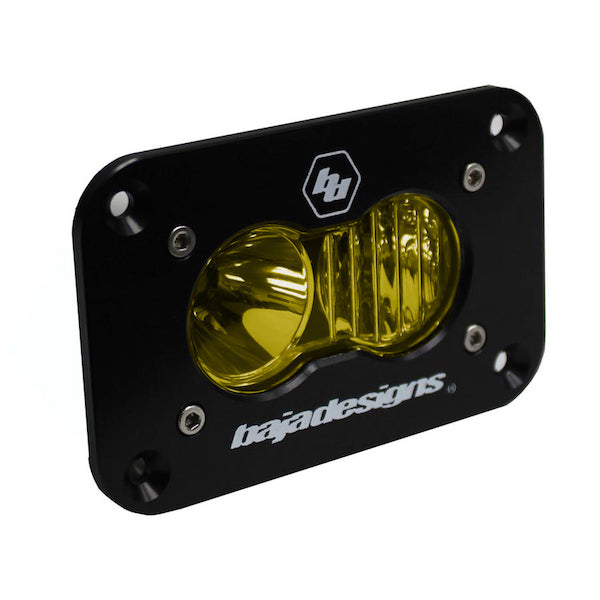

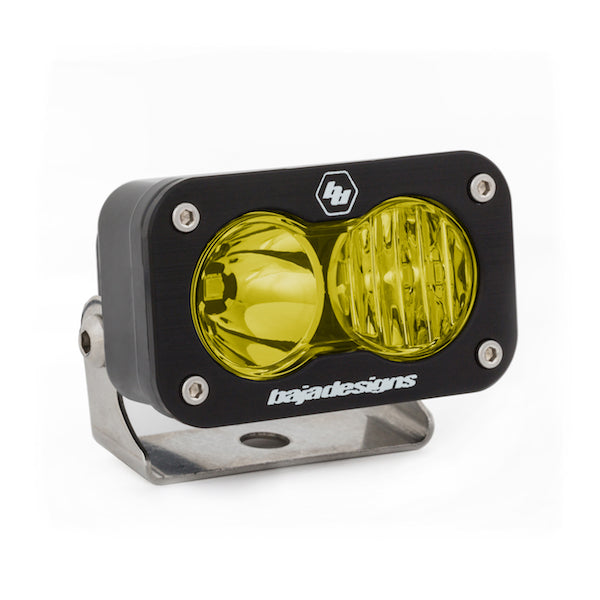

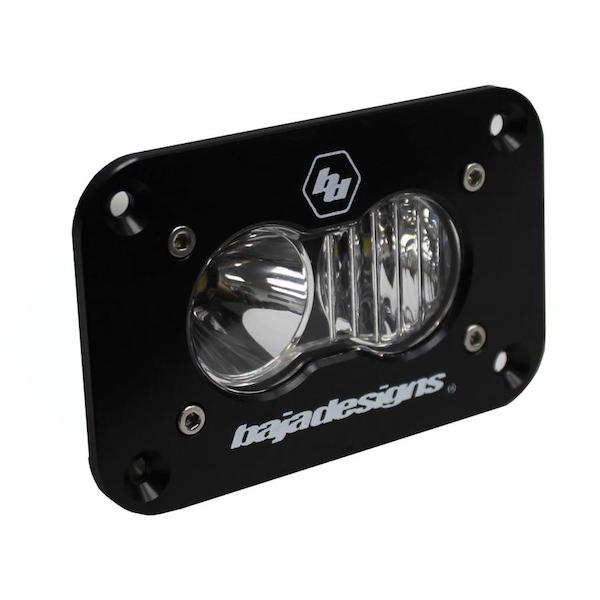

• Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Cornering (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance. (Lighting Zone 3)

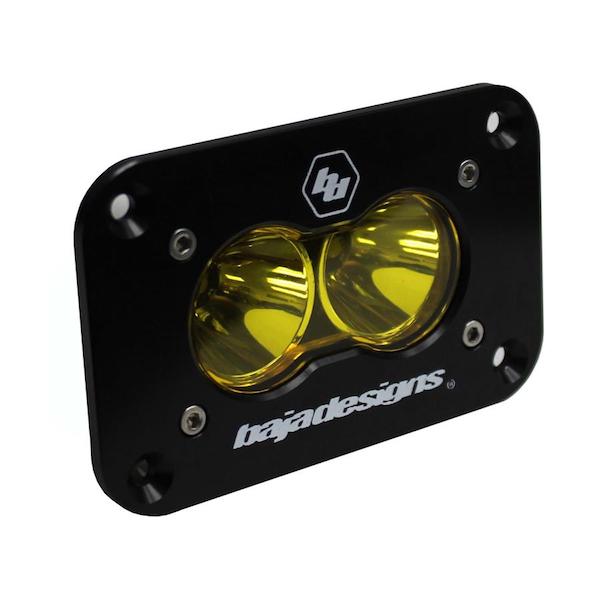

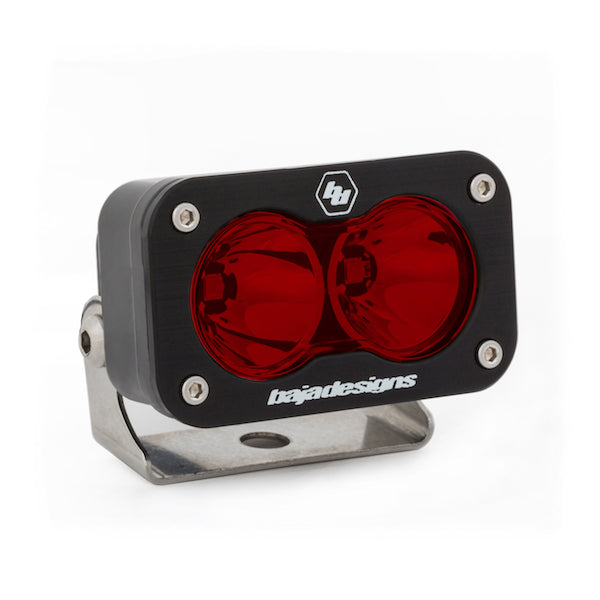

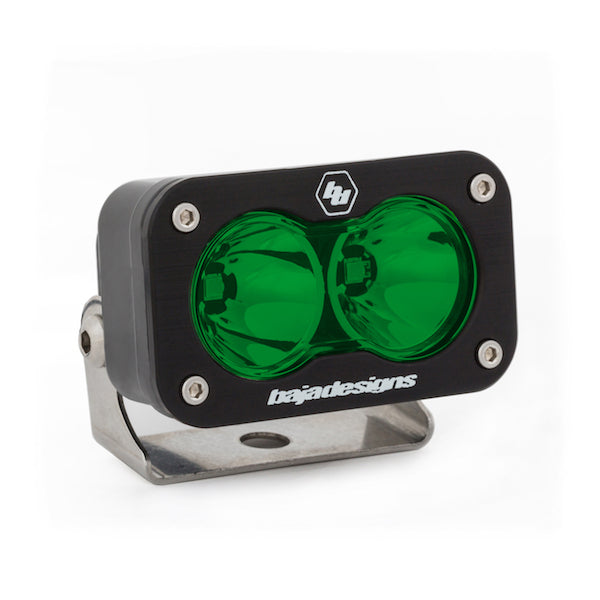

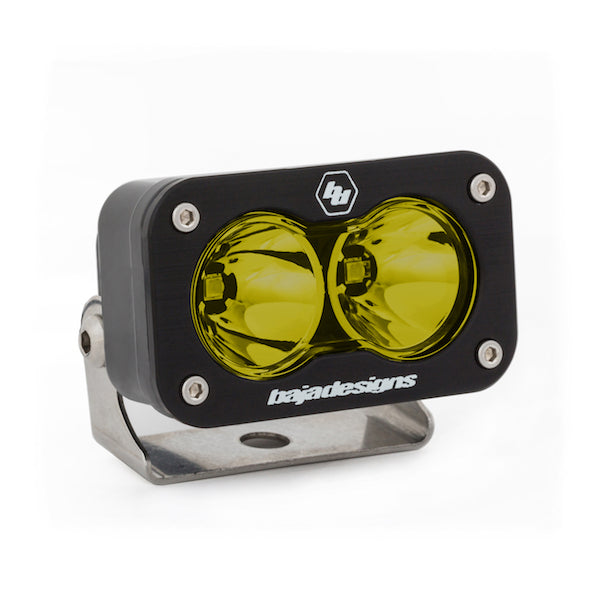

• Spot: A longer and narrower 9° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

• Wide Cornering: Baja Designs was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Cornering pattern offers a 44° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

• Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft.  *This pattern is similar to a flood light and is not suitable for driving.*
