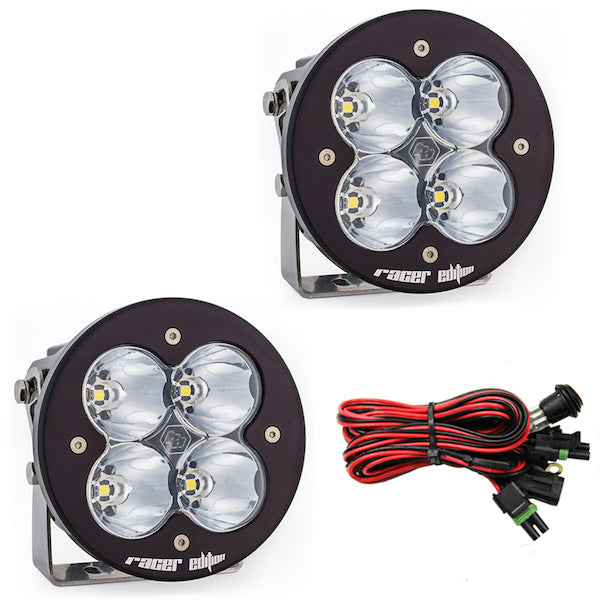

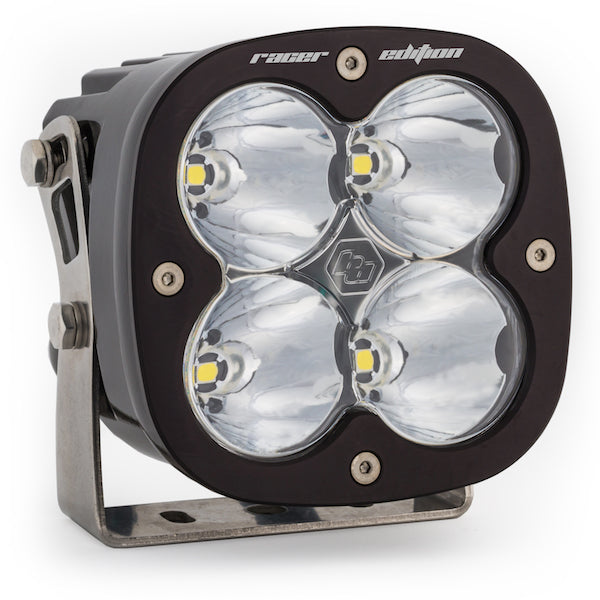

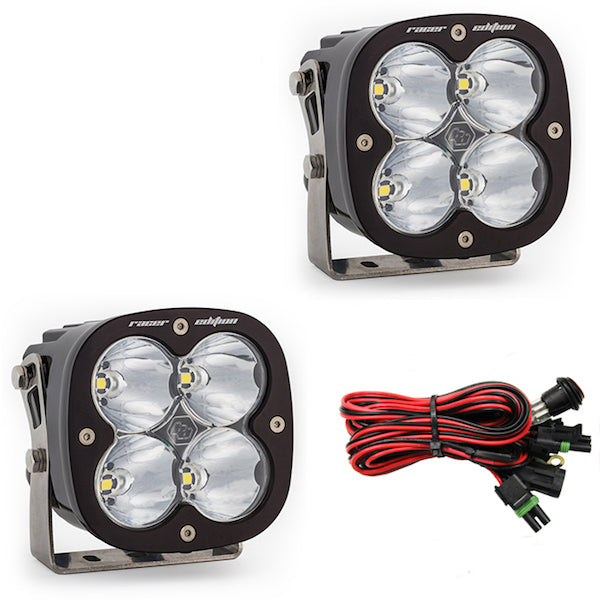

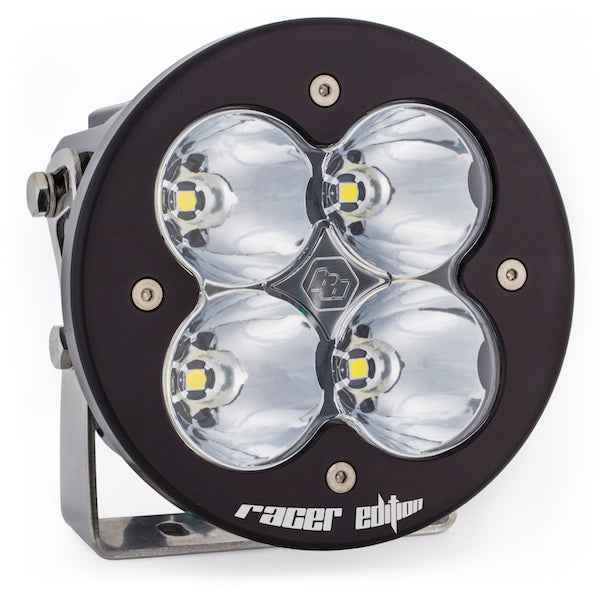

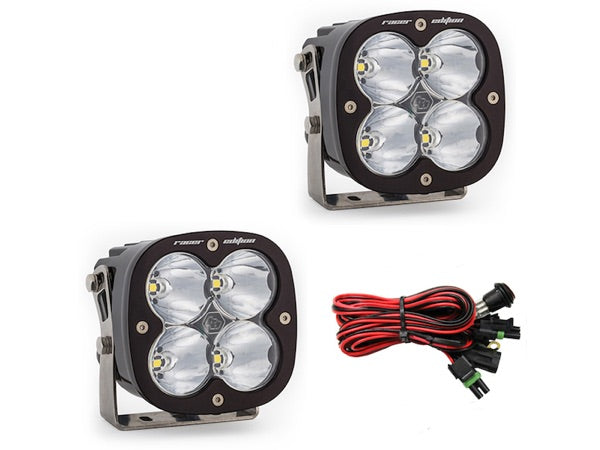

BAJA DESIGNS XL Racer Edition Forward Projecting LED Off Road Light (Single, Pair)
Model
XL Racer Edition
Light Color/Pattern
White/High Speed Spot
Housing/Bezel
Standard
Description
The XL Racer throws its 4,300 lumens an average of 40% further than the XL Pro. With 4 Cree High-intensity LEDs housed in hard anodized and powder coat cast aluminum, you can enjoy nearly 50,000 hours of bright, efficient lighting to enhance your nighttime off-roading experiences! As always, Baja Designs provides the best in auxiliary LED lights with a 30 Day Satisfaction Guarantee, and Limited Lifetime Warranty.
Racer Edition Spot Light Pattern Projects A Narrow 4° Beam Far Down Road
Included:
XL Racer Edition LED Light(s)
Mounting Bracket(s)
** Wiring Harness is NOT included **
Baja Designs XL Racer Edition Off Road LED Light Features
XL Racer Edition Key Features
- 4x Cree XP-L High Intensity LEDs - with 4,300 Lumens focused to a tight 4° beam, the XL Racer puts the lumens where you need them for racing speeds.
- Optional 50% Dimming Capability - a thermal management microprocessor enables a dimming capability if a secondary on/off switch is wired in.
Satisfaction Guaranteed - 30 Day Money Back Guarantee
Limited Lifetime Warranty - Complete Purchase Protection
uService® - Replaceable Lenses And Optics
ClearView® - All The Light, Right Where You Need It
MoistureBlock™ - Waterproof, Rain Proof, Submersible
CopperDrive® - Only LED Driven At 100%
5000K Daylight - Less Driver Fatigue, Natural Color
Baja Designs XL Racer Edition Off Road LED Light Dimensions & Specifications
NOTE: For additional technical details on this product including a wiring diagram, uService instructions to swap out lenses/patterns, a mounting hardware diagram and detailed warranty information, please see the Baja Designs XL Racer Edition Data Sheet.
Lumens: 4,300 Utilizing 4 Cree XP-L High Intensity LEDs
Candela: 358,731 (CD)
Weight: 2.45 lbs
Wattage/Amps: 40W / 3.33A
Dimensions:

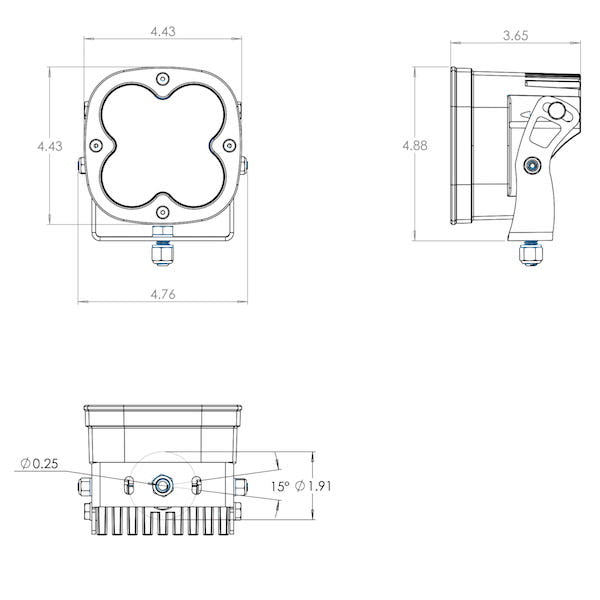

Standard Housing: 4.88” H x 4.43” W x 3.65” D

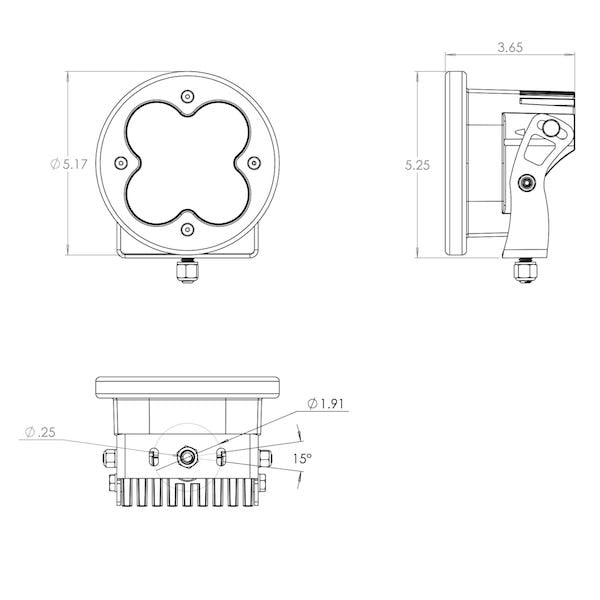

Round Housing: 5.25" H x 5.17" W x 3.65" D
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Hard Anodize & Powder Coat
Bezel: Hard Anodize
Hardware & Bracket Material: Stainless Steel
Standards of Compliance:
MIL-STD-810G Certified - (Low Temperature Test, High Temperature, Temperature & Humidity, Thermal Shock Cycling, Dust, Random Vibration, Mechanical Shock, Low Pressure, & Drip Box Water)
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69k Certified – (Submersible to 9ft)
IK10 Compliant – (Mechanical Impact Testing)
Salt Spray Certified
XL Racer Edition LED Light Wiring Requirements & Installation
PLEASE NOTE: all Baja Designs lighting products need to be wired in to 12V power. Installation of a wiring harness and/or accessories not included with purchase of the light will likely be required.
To discuss wiring options and get set up with a package that includes an appropriate wiring harness; or to request installation assistance, please don't hesitate to get in touch. We also offer & install sPOD switch controllers if you want a clean solution to integrate all your 12V accessories.
Baja Designs XL Racer Edition Light Patterns
With Baja Designs uService design, you are able to swap out the front lens of your LED for a new lens. This means you can easily change the color and light pattern of your XL Racer Edition if you later change your mind about what lighting zone you prefer, or if you scratch up the original lens. Replacement lens kits come with a new lens for the light pattern of your choosing, and a fresh O-ring.

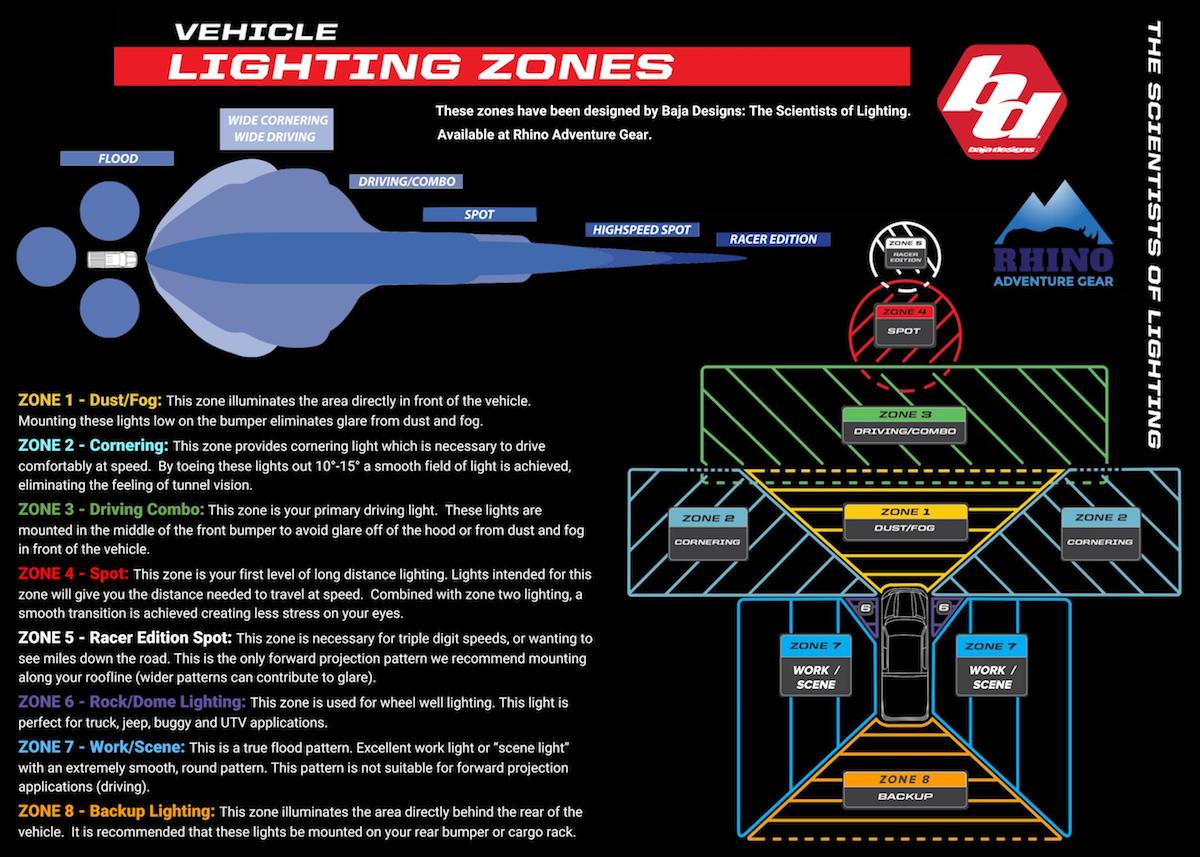

- Racer Edition Spot: A longer and narrower 4° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 5)
