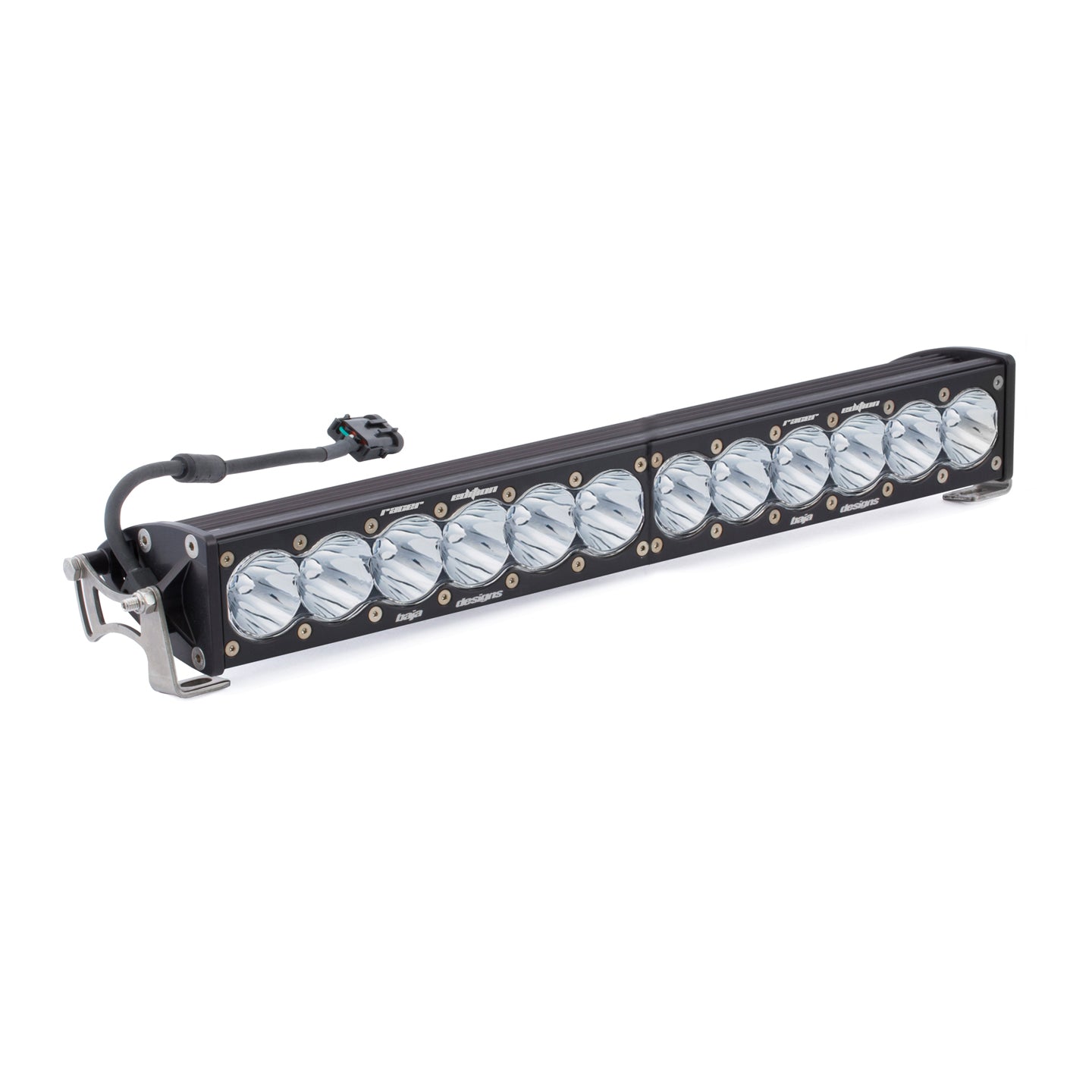

BAJA DESIGNS OnX6 Racer Edition LED Light Bar (10" - 50")

It's easy to outrun a factory lighting system, especially when you're driving off-road. You'll have a lot tougher time outrunning a Baja Designs OnX6 Racer Edition Light Bar —the 10-inch LED light bar will put your factory lighting system to shame. The OnX6 Racer Edition Light Bar was designed for speeds of 110+ MPH — that's super-fast when you're slamming down the trail.

This off-road light bar was developed exclusively for Baja Designs' TeamBD racers. That's pro quality shipped right to your door. Like all Baja Designs products, the OnX6 Light Bar comes with an industry-first 30-Day Satisfaction Guarantee and Limited Lifetime Warranty.

Racer Edition Spot Light Pattern Projects A Narrow 4° Beam Far Down Road

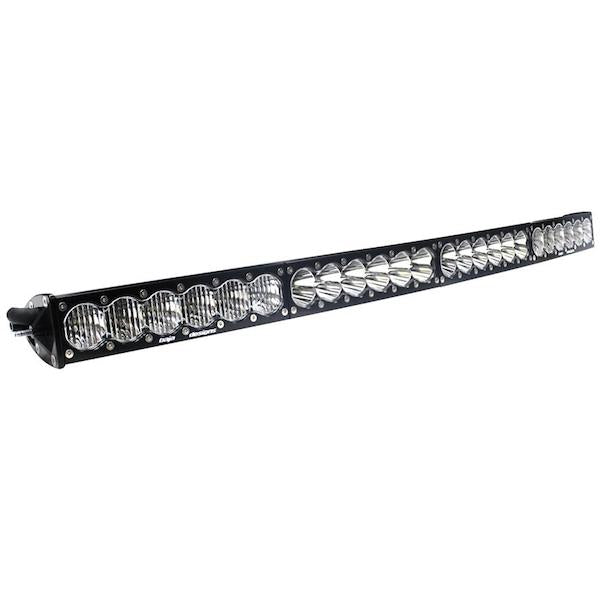

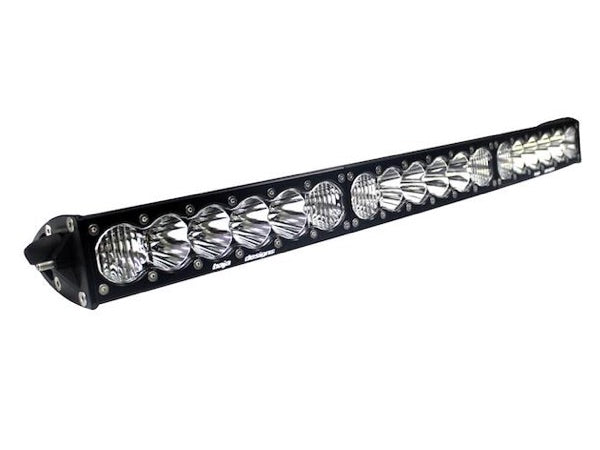

Models 30" and above in length are also available in an arched array, in addition to the standard straight configuration.

Included:

OnX6 Racer Edition LED Light Bar (10"-50")
Mounting Brackets
** Wiring Harness is NOT included **

Baja Designs OnX6 Racer Edition LED Light Bar Features

Baja Designs OnX6 Racer Edition Key Features

• Optimized for extreme speeds on off road racing trails
• Optional 20% Dimming Capability - a thermal management microprocessor enables a dimming capability if a secondary on/off switch is wired in.

Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color

Baja Designs OnX6 Racer Edition Light Bar Dimensions & Specifications

NOTE: For additional technical details on this product including a wiring diagram, uService instructions to swap out lenses/patterns, a mounting hardware diagram and detailed warranty information, please see the Baja Designs OnX6 Racer Edition Data Sheet.

Specifications:

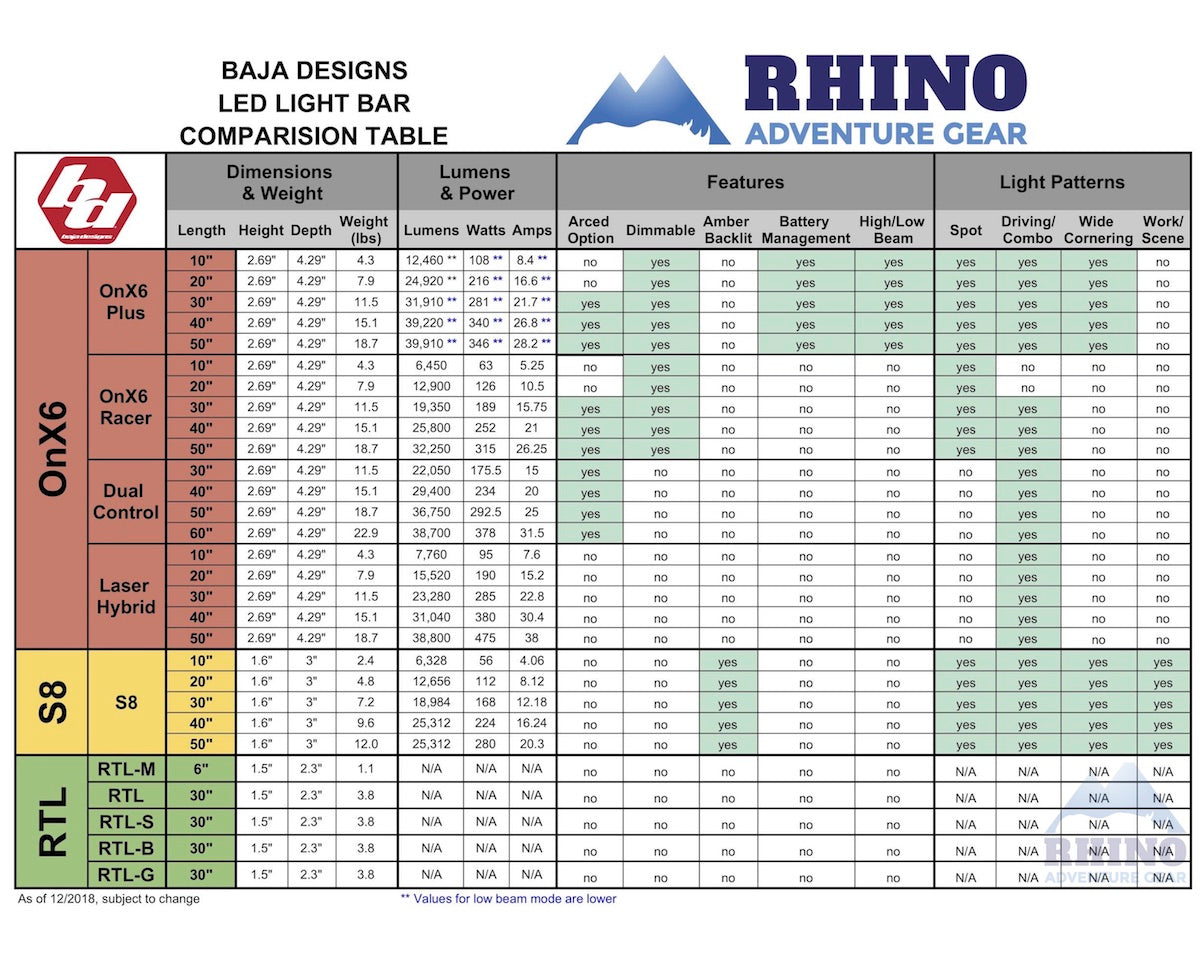

Wattage/Amps: Varies by model, see chart in product photos
Lumens: Varies by model, see chart in product photos
Dimensions: (10"- 50") x 4.29" x 2.69"
Weight: 4.25 lbs per 10" section
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel

Standards of Compliance:

Exceeds MIL-STD810G (Mil-Spec Testing- Low Temperature Test, High Temperature, Temperature & Humidity, Thermal Shock Cycling, Dust, Random Vibration, Mechanical Shock, Low Pressure & Drip Box Water)
Built-In Overvoltage Protection
IP69K (Submersible up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)
Salt Spray Certified
High/Medium Modes

OnX6 Racer Edition LED Light Bar Wiring Requirements & Installation

PLEASE NOTE: all Baja Designs lighting products need to be wired in to 12V power. Installation of a wiring harness and/or accessories not included with purchase of the light will likely be required.

To discuss wiring options and get set up with a package that includes an appropriate wiring harness; or to request installation assistance, please don't hesitate to get in touch. We also offer & install sPOD switch controllers if you want a clean solution to integrate all your 12V accessories.

Baja Designs OnX6 Racer Edition Light Patterns

With Baja Designs uService design, you are able to swap out the front lens of your LED for a new lens. This means you can easily change the color and light pattern of your OnX6 Racer Edition Light Bar if you later change your mind about what lighting zone you prefer, or if you scratch up the original lens. Replacement lens kits come with a new lens for the light pattern of your choosing, and a fresh O-ring.

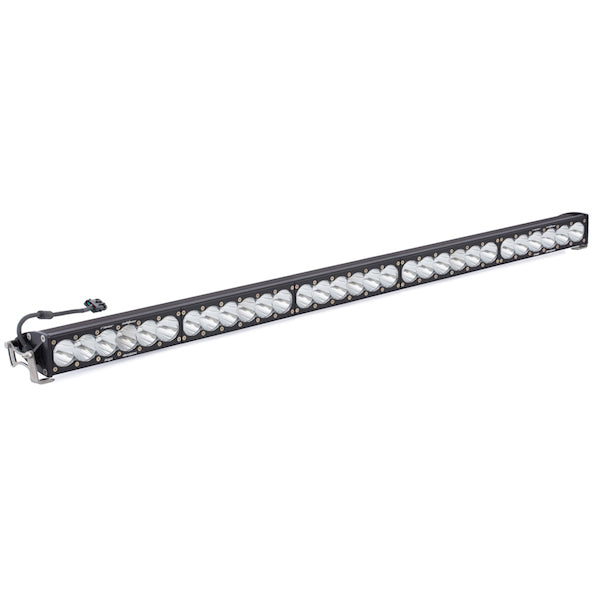

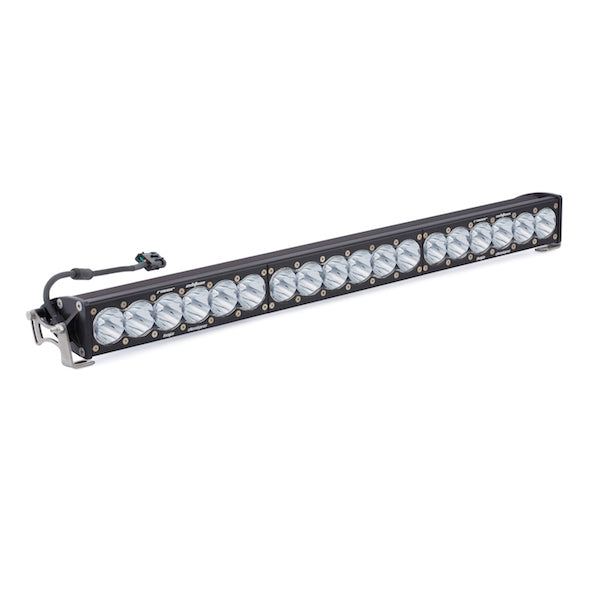

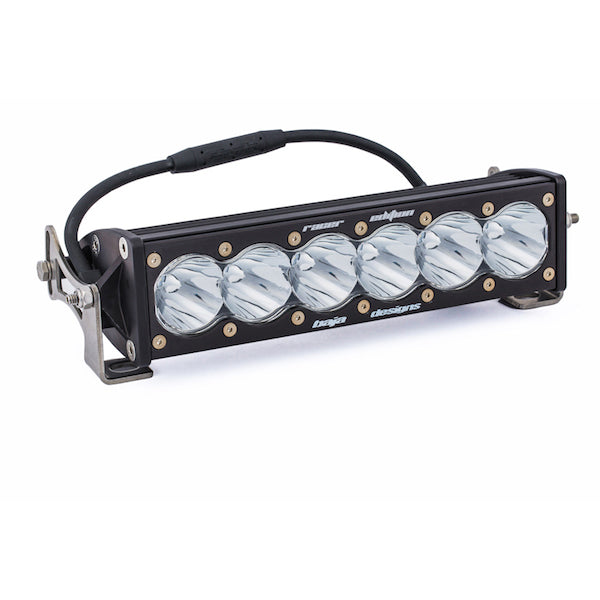

• Racer Edition Spot: A longer and narrower 4° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 5)

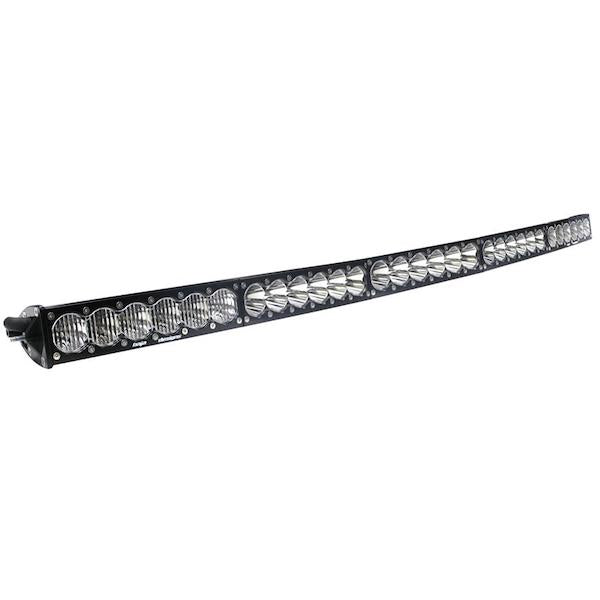

• Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Cornering (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
