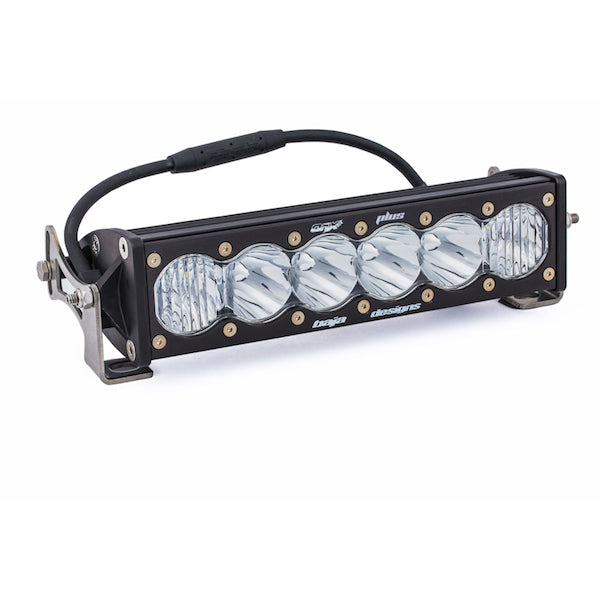

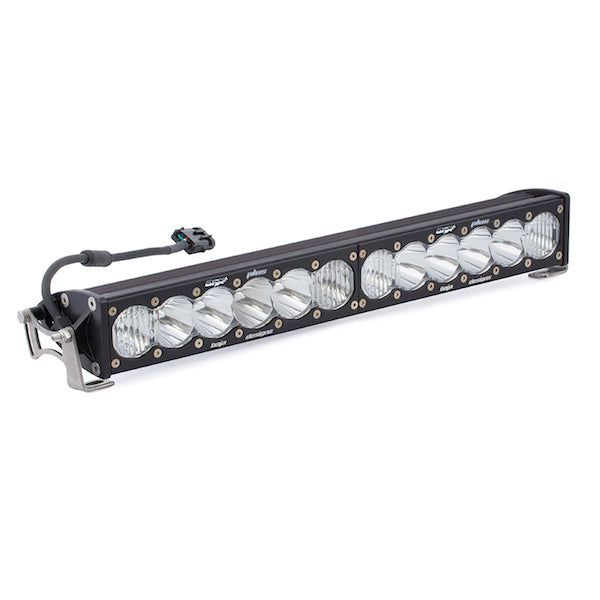

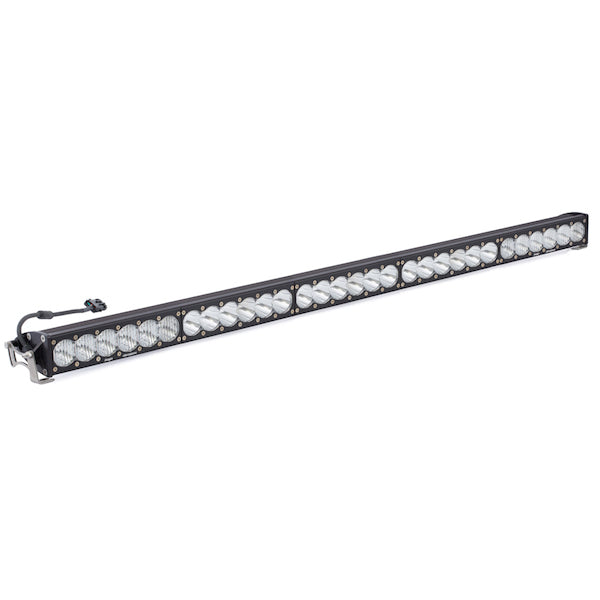

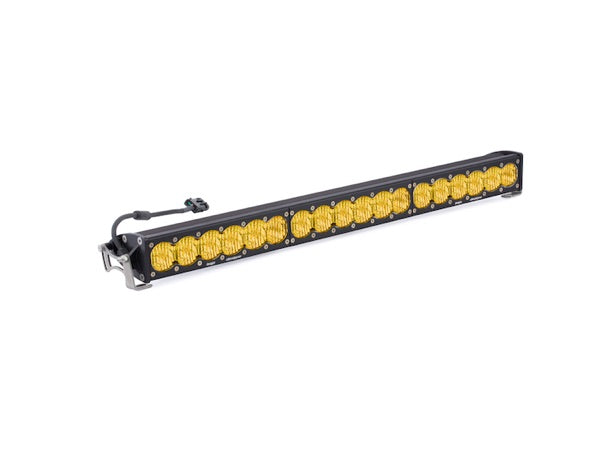

BAJA DESIGNS OnX6+ LED Light Bar (10" - 50")

Improving on the already impressive OnX6, Baja Designs’ brightest just got up to 69% brighter. The OnX6+ generates an amazing 12,460 lumens. The OnX6+ LED light bar also features Battery Management Technology (BMT) – industry-first technology that regulates the output of your light bar based on your vehicles available electrical output. BMT protects your vehicle’s electrical system and wiring from dangerous current spikes, eliminates LED flickering under low voltage, and prolongs your car battery’s life.

At an impressive 12,460 lumens, the brightest just got up to 69% brighter than our previous generation. The OnX6 + LED light bar also integrates Baja Designs’ trademarked High Speed Spot™ reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. In addition, the OnX6 + LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.

Included:

OnX6 Plus LED Light Bar (10"-50")
Mounting Brackets
Hi-Low Dongle
** Wiring Harness is NOT included **

Baja Designs OnX6 Plus LED Light Bar Features

Baja Designs OnX6+ Key Features

• Optional 20% Dimming Capability - a thermal management microprocessor enables a dimming capability if a secondary on/off switch is wired in.
• High/Medium Modes
• Battery Management Technology - regulates the output of your light bar based on your vehicles available electrical output

Baja Designs BMT Video

Video Credit: Baja Designs

Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color

Baja Designs OnX6 Plus Light Bar Dimensions & Specifications

NOTE: For additional technical details on this product including a wiring diagram, uService instructions to swap out lenses/patterns, a mounting hardware diagram and detailed warranty information, please see the Baja Designs OnX6+ Data Sheet.

Specifications:

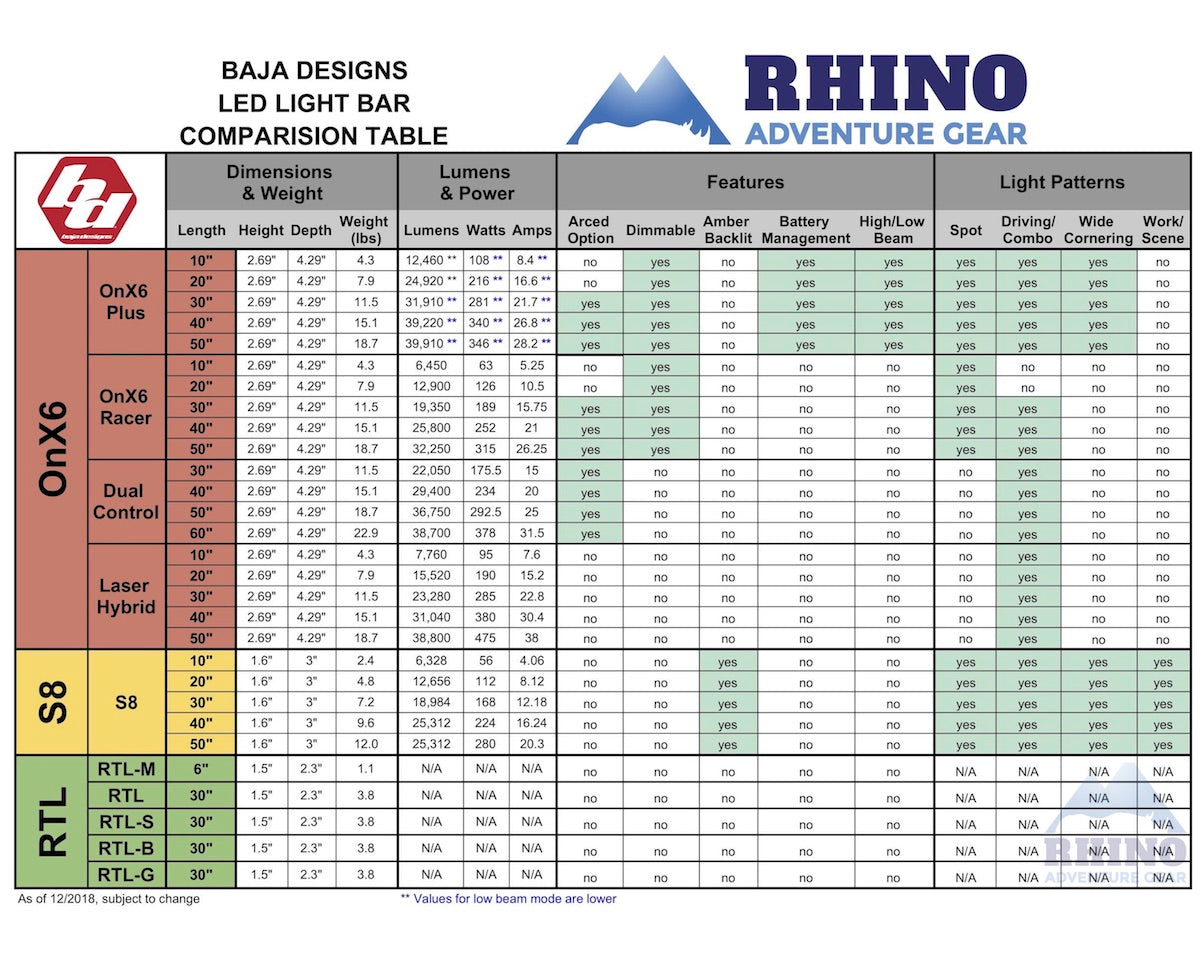

Wattage/Amps: Varies by model, see chart in product photos
Lumens: Varies by model, see chart in product photos
Dimensions: (10"- 50") x 4.29" x 2.69"
Weight: 4.25 lbs per 10" section
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel

Standards of Compliance:

Exceeds MIL-STD810G (Mil-Spec Testing- Low Temperature Test, High Temperature, Temperature & Humidity, Thermal Shock Cycling, Dust, Random Vibration, Mechanical Shock, Low Pressure & Drip Box Water)
Built-In Overvoltage Protection
IP69K (Submersible up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)
Salt Spray Certified

OnX6 Plus LED Light Bar Wiring Requirements & Installation

PLEASE NOTE: all Baja Designs lighting products need to be wired in to 12V power. Installation of a wiring harness and/or accessories not included with purchase of the light will likely be required.

To discuss wiring options and get set up with a package that includes an appropriate wiring harness; or to request installation assistance, please don't hesitate to get in touch. We also offer & install sPOD switch controllers if you want a clean solution to integrate all your 12V accessories.

Baja Designs OnX6 Plus Light Patterns

With Baja Designs uService design, you are able to swap out the front lens of your LED for a new lens. This means you can easily change the color and light pattern of your OnX6 Plus Light Bar if you later change your mind about what lighting zone you prefer, or if you scratch up the original lens. Replacement lens kits come with a new lens for the light pattern of your choosing, and a fresh O-ring.

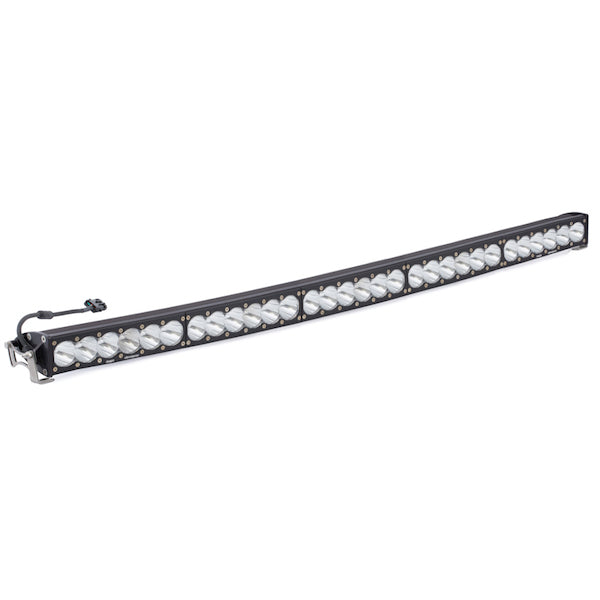

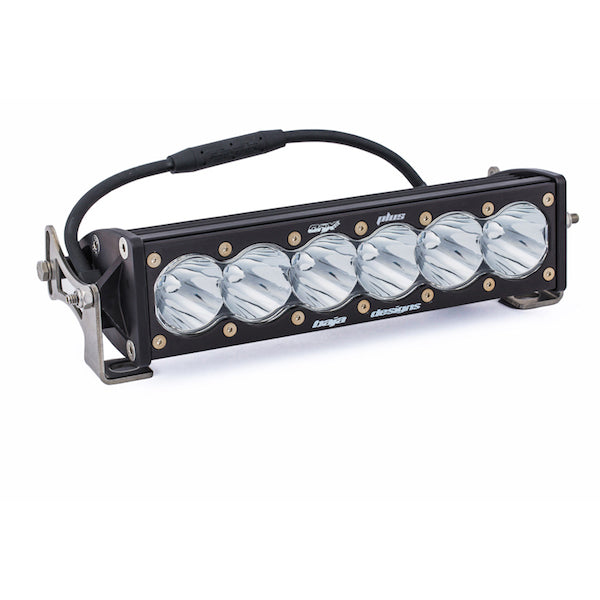

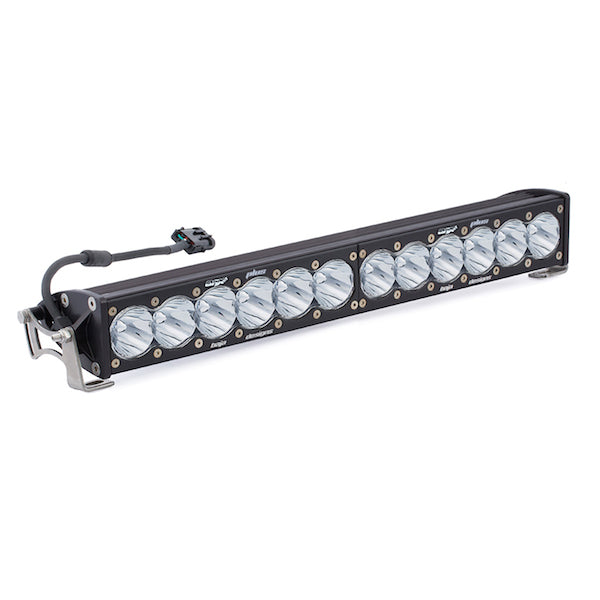

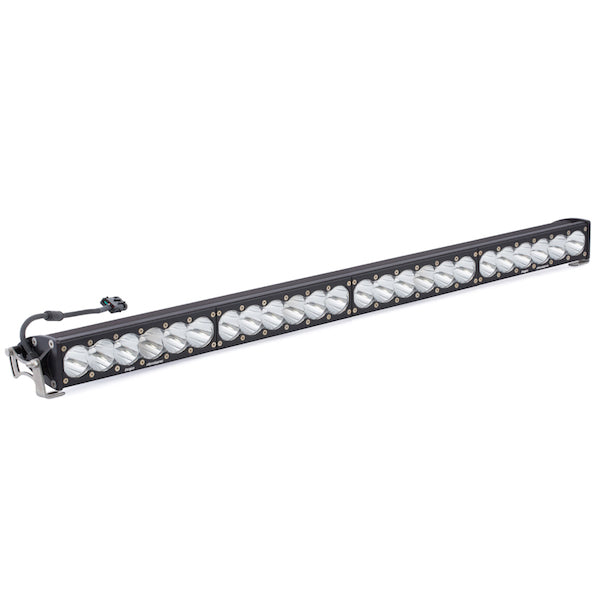

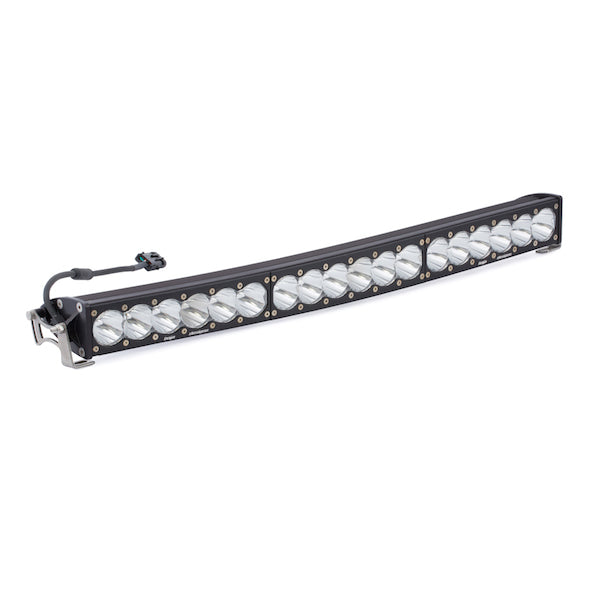

• High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

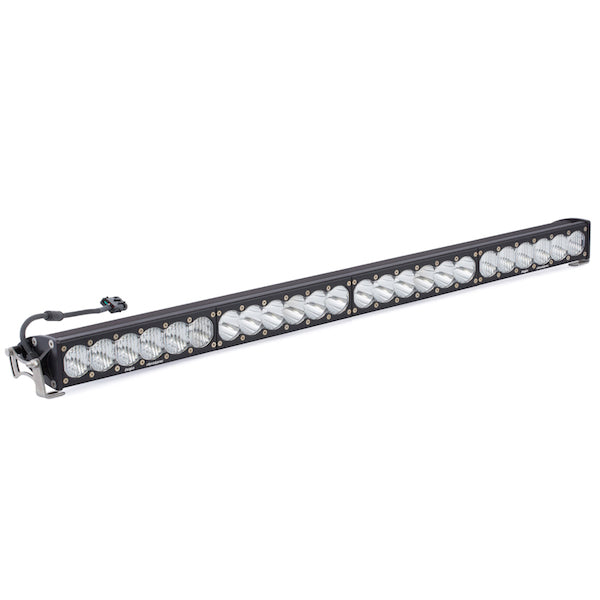

• Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Cornering (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

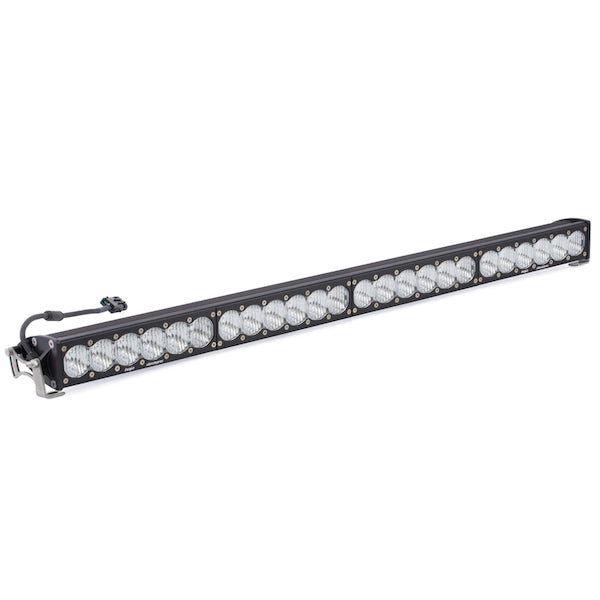

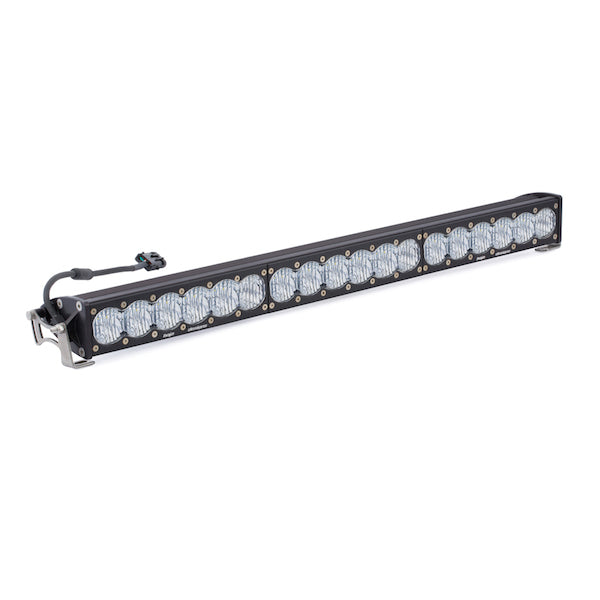

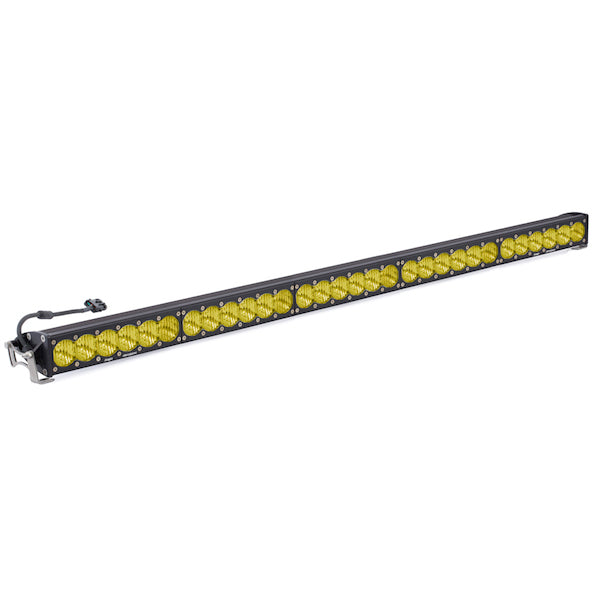

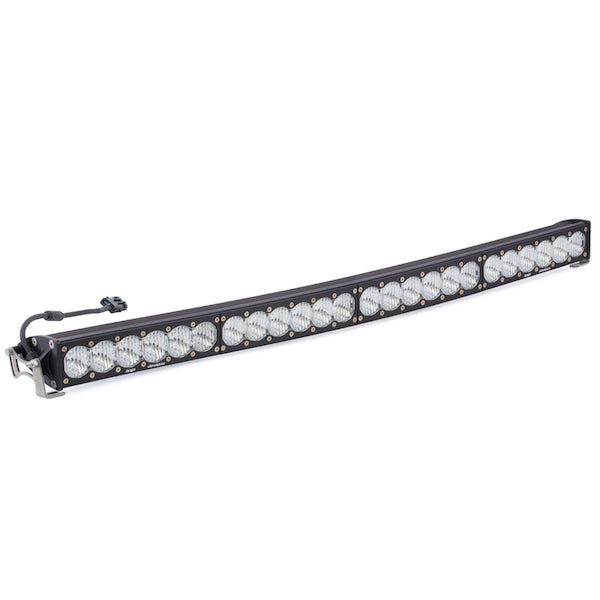

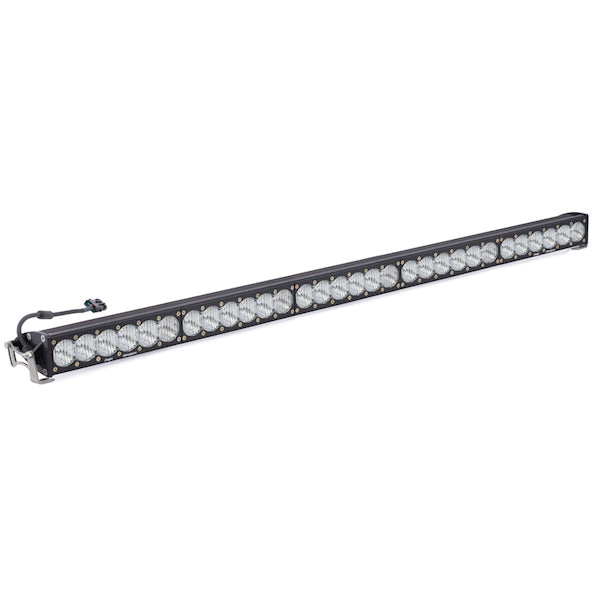

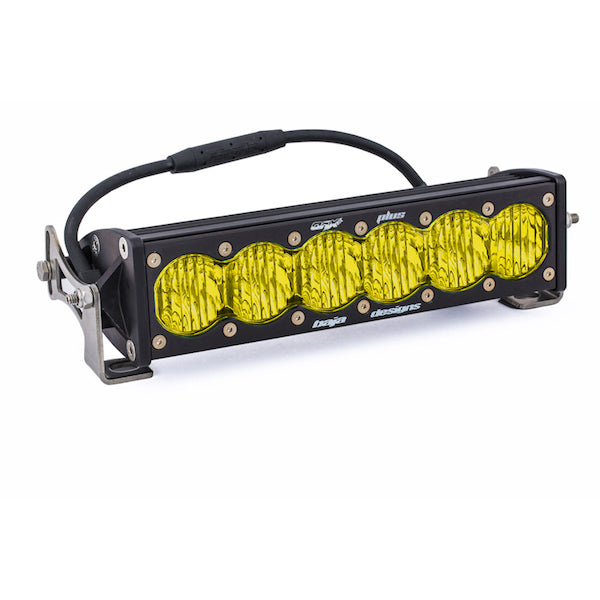

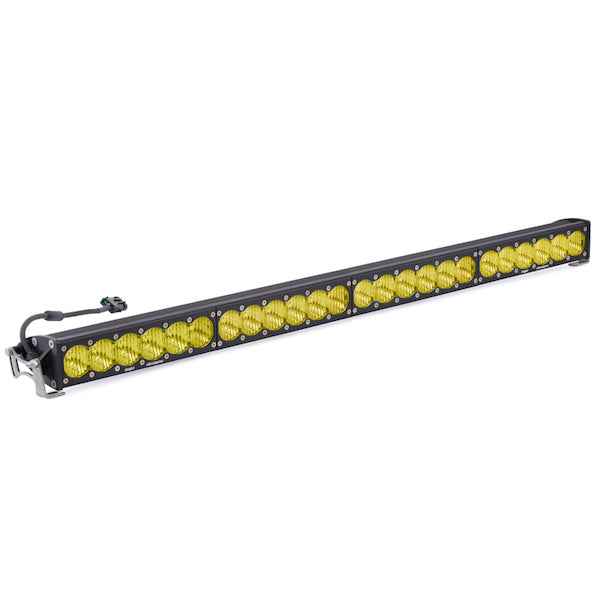

• Wide Driving: Baja Designs was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
