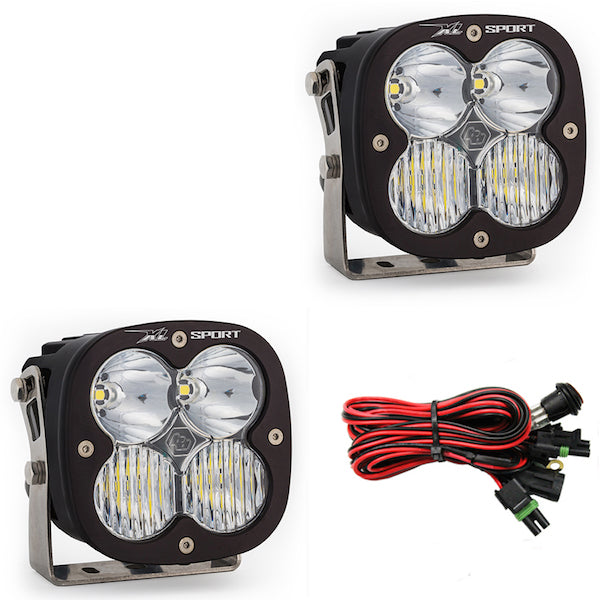

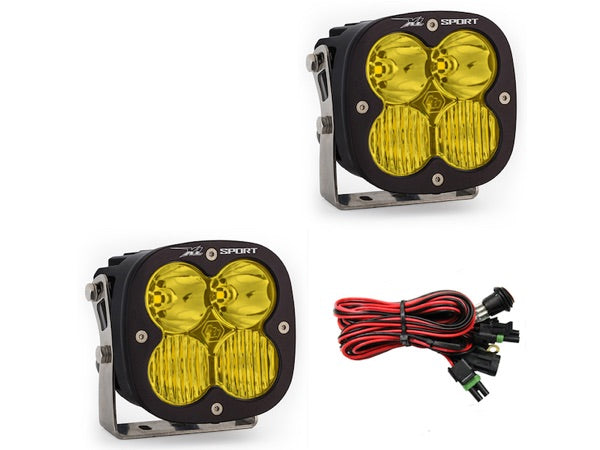

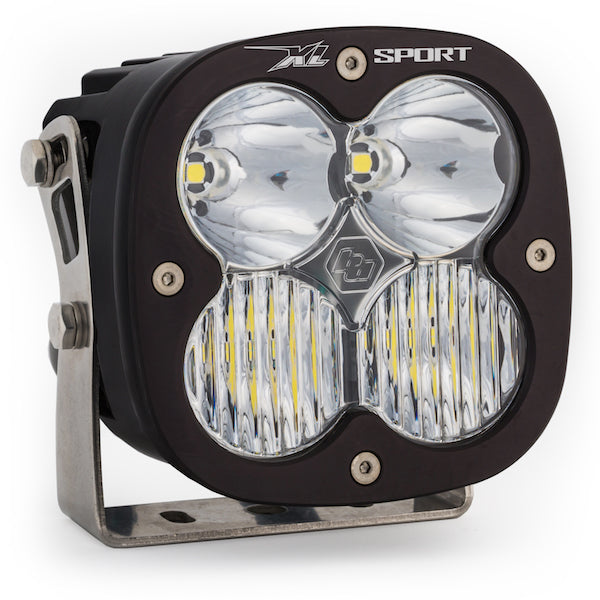

BAJA DESIGNS XL Sport Forward Projecting LED Off Road Light (Single, Pair)

The XL Sport makes it easy to light up your world in style, with the perfect combination of affordability and performance. The XL Sport LED light utilizes our trademarked High Speed Spot reflectors providing for a longer beam pattern. The XL Sport provides the same top of the line performance and aesthetics you expect from Baja Designs in an affordable solution. All Baja Designs LEDs are backed by a 30 Day Satisfaction Guarantee & Limited Lifetime Warranty for the ultimate in purchase protection.

Baja Designs XL Sport LED auxiliary lights have a microprocessor that performs thermal management of the LED’s and allow a dimming mode. If you want to use the dimming mode of the light, a separate on/off (toggle) or push button switch is required. If you do not need this feature, then a single standard on/off switch is all that is required.

Included:
XL Sport LED Light(s)
Mounting Bracket(s)
** Wiring Harness is NOT included **

Baja Designs XL Sport Off Road LED Light Features

XL Sport Off Road LED Aux Light Key Features

• Practical combination of affordability & performance
• Baja Designs' superior quality and aesthetics
• Optional 50% Dimming Capability - a thermal management microprocessor enables a dimming capability if a secondary on/off switch is wired in.

Satisfaction Guaranteed - 30 Day Money Back Guarantee
Limited Lifetime Warranty - Complete Purchase Protection
uService® - Replaceable Lenses And Optics
ClearView® - All The Light, Right Where You Need It
MoistureBlock™ - Waterproof, Rain Proof, Submersible
CopperDrive® - Only LED Driven At 100%
5000K Daylight - Less Driver Fatigue, Natural Color

Baja Designs XL Sport Off Road LED Light Dimensions & Specifications

Lumens: 3,150 Utilizing 4x Cree Intensity LEDs
Weight: 2.45 lbs
Wattage/Amps: 26W / 2A
Dimensions:

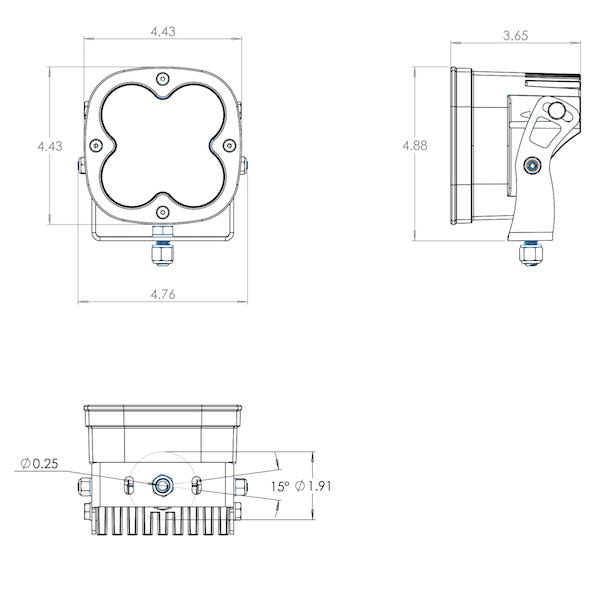

         Standard Housing: 4.88” H x 4.43” W x 3.65” D

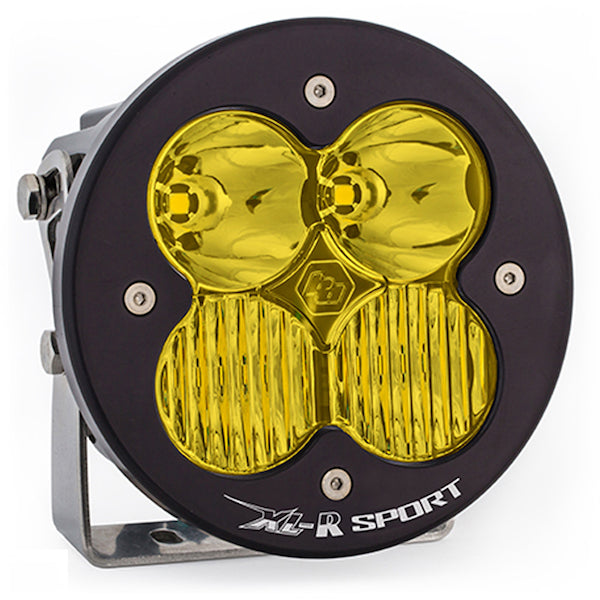

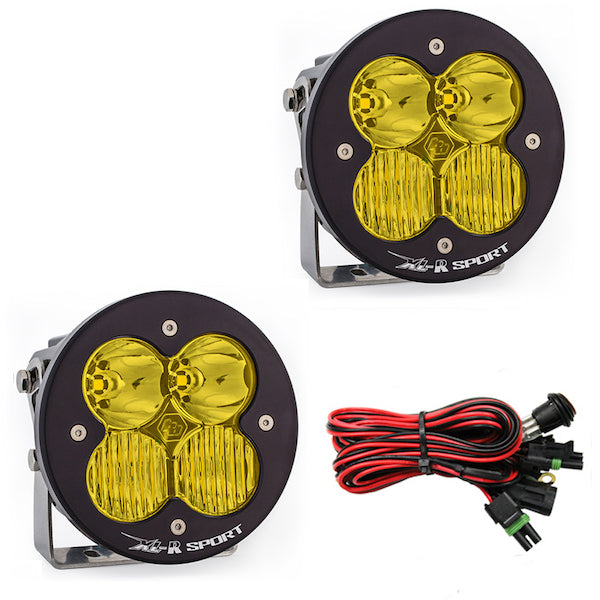

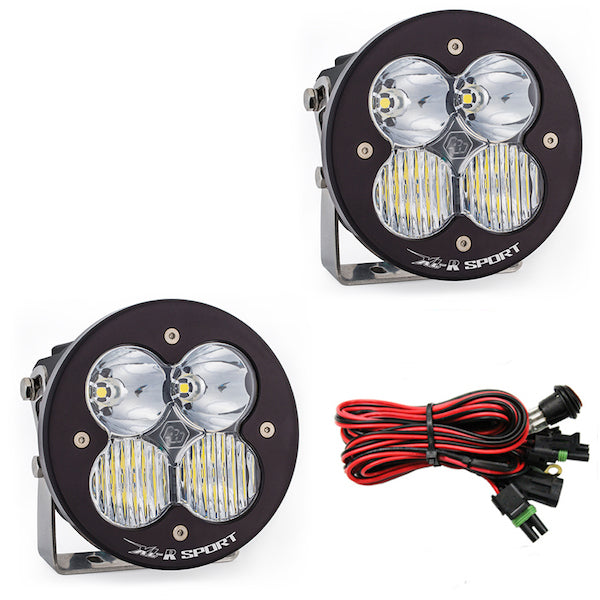

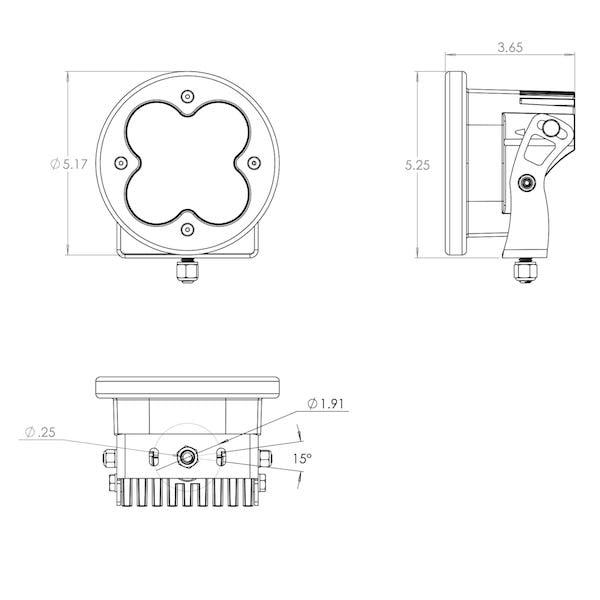

         Round Housing: 5.25" H x 5.17" W x 3.65" D
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Hard Anodize & Powder Coat
Bezel: Hard Anodize
Hardware & Bracket Material: Stainless Steel

Standards of Compliance:

MIL-STD-810G Certified - (Low Temperature Test, High Temperature, Temperature & Humidity, Thermal Shock Cycling, Dust, Random Vibration, Mechanical Shock, Low Pressure, & Drip Box Water)
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69k Certified – (Submersible to 9ft)
IK10 Compliant – (Mechanical Impact Testing)
Salt Spray Certified

NOTE: For additional technical details on this product including a wiring diagram, uService instructions to swap out lenses/patterns, a mounting hardware diagram and detailed warranty information, please see the Baja Designs XL Sport Data Sheet.

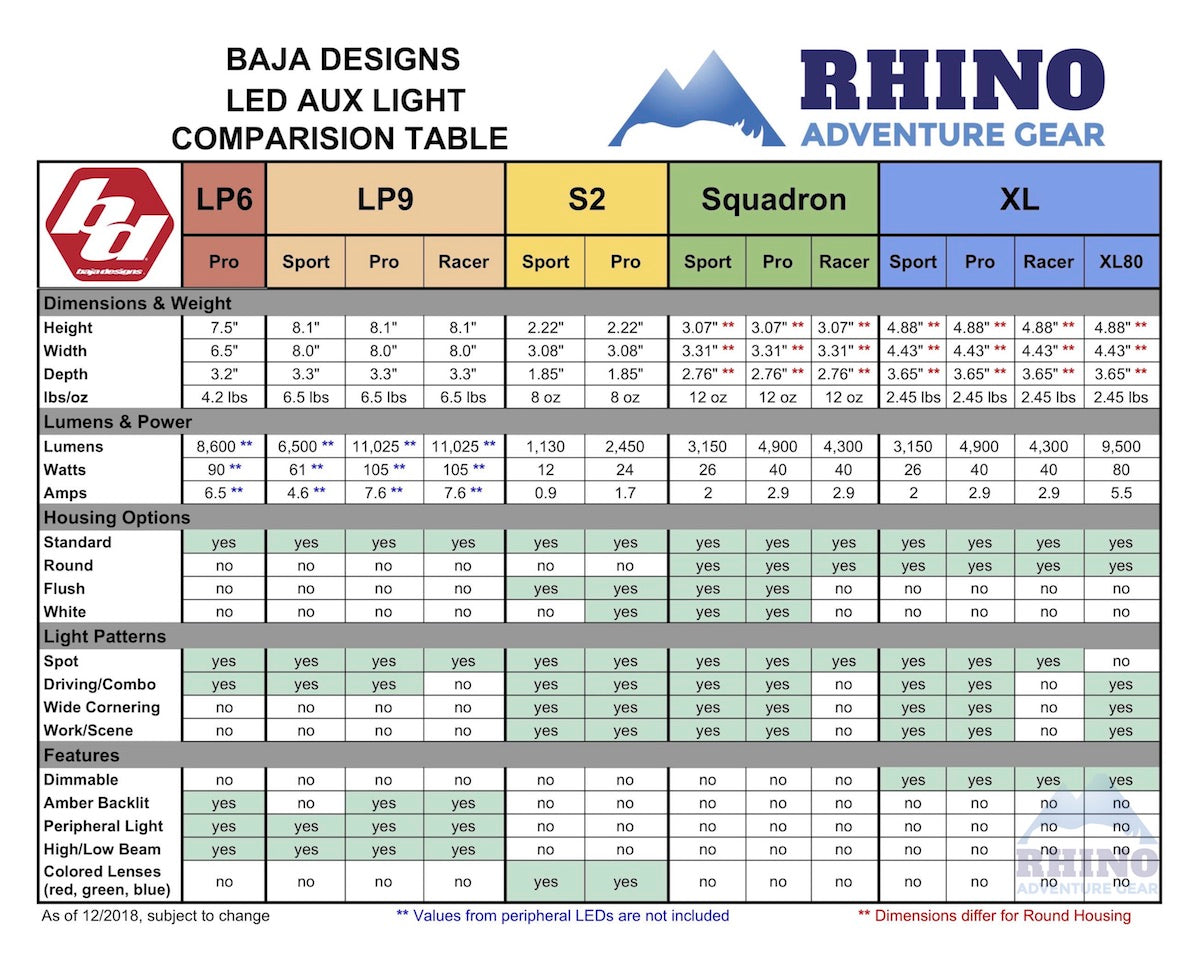

Side By Side Comparison of Baja Designs XL Pro vs XL Sport

Baja Designs XL Sport Light Patterns

With Baja Designs uService design, you are able to swap out the front lens of your LED for a new lens. This means you can easily change the color and light pattern of your XL Sport if you later change your mind about what lighting zone you prefer, or if you scratch up the original lens. Replacement lens kits come with a new lens for the light pattern of your choosing, and a fresh O-ring.

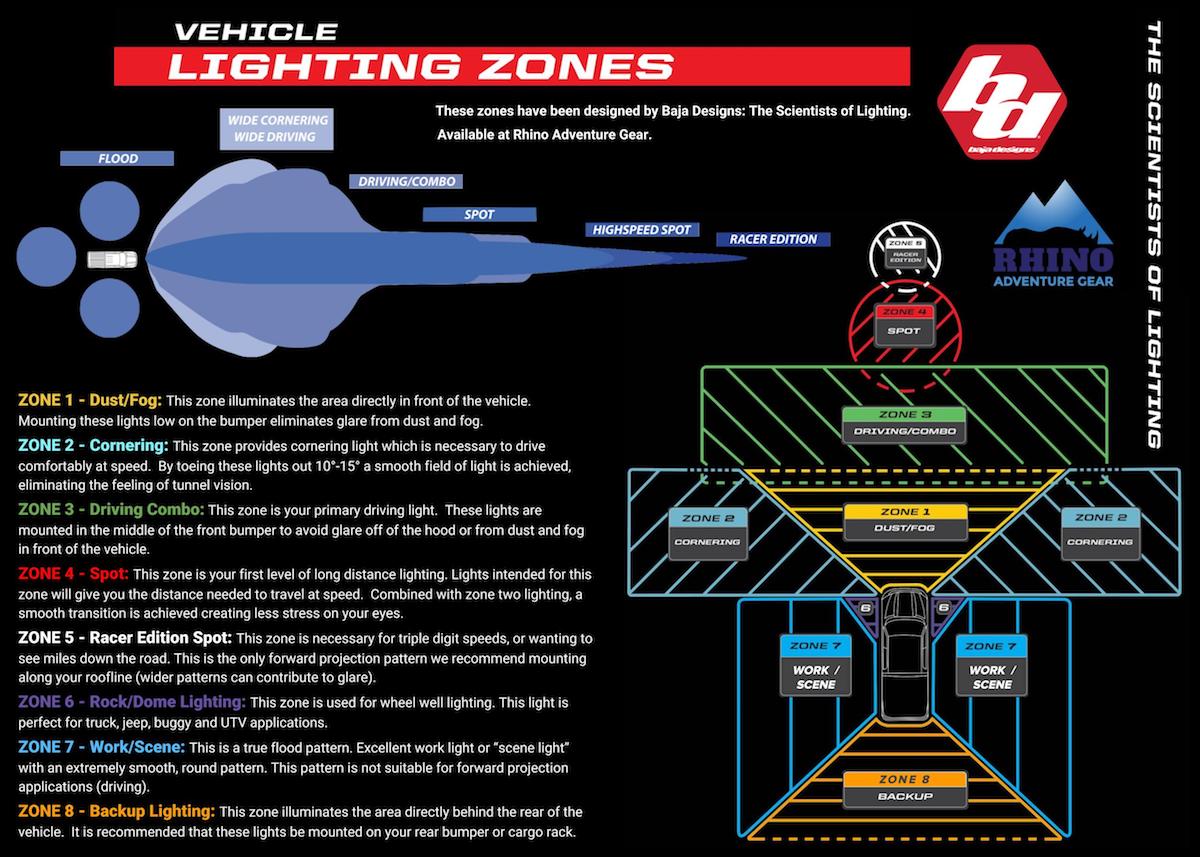

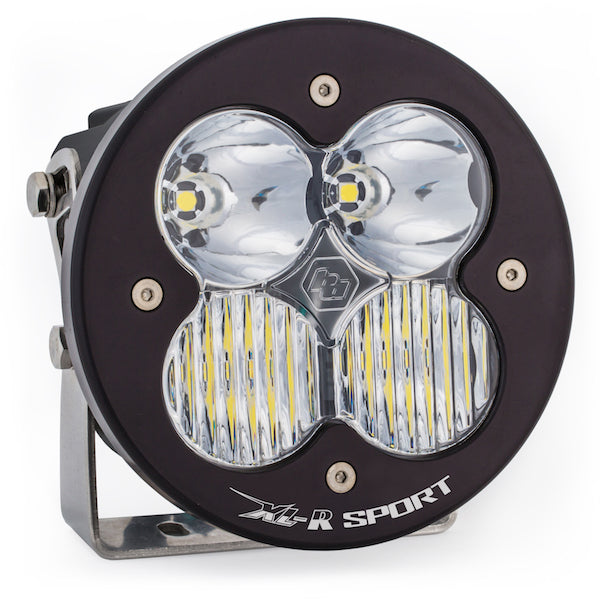

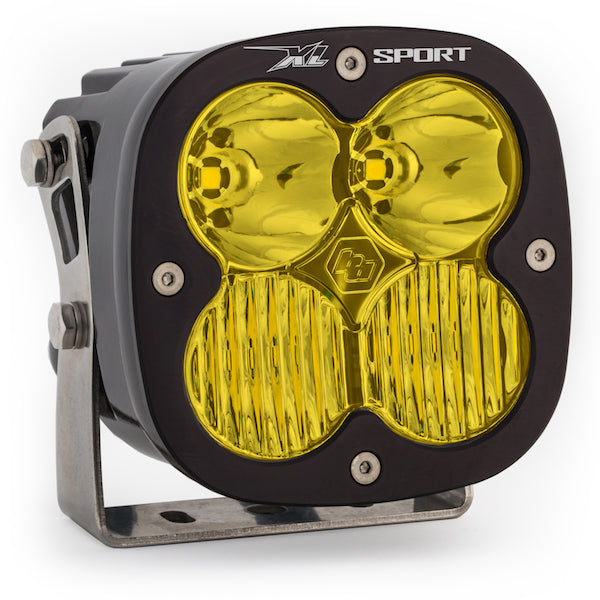

• Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Cornering (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

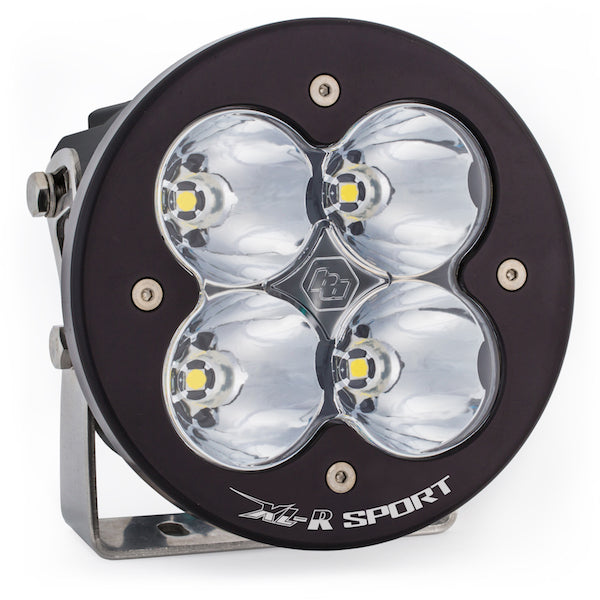

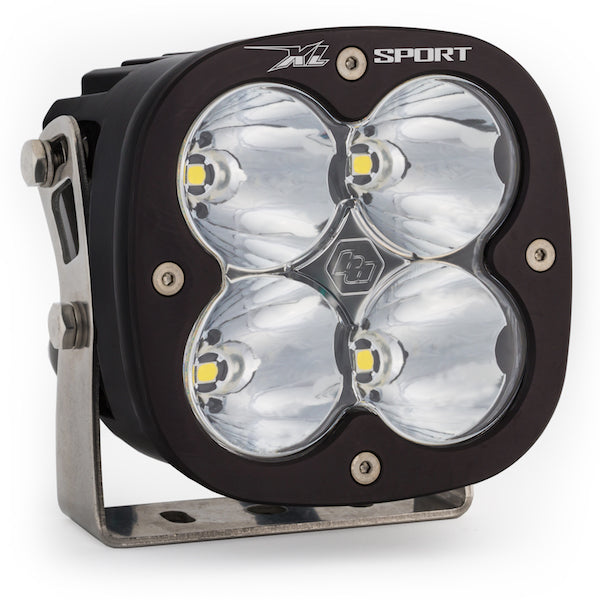

• High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
• Wide Cornering: Baja Designs was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Cornering pattern offers a 44° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
