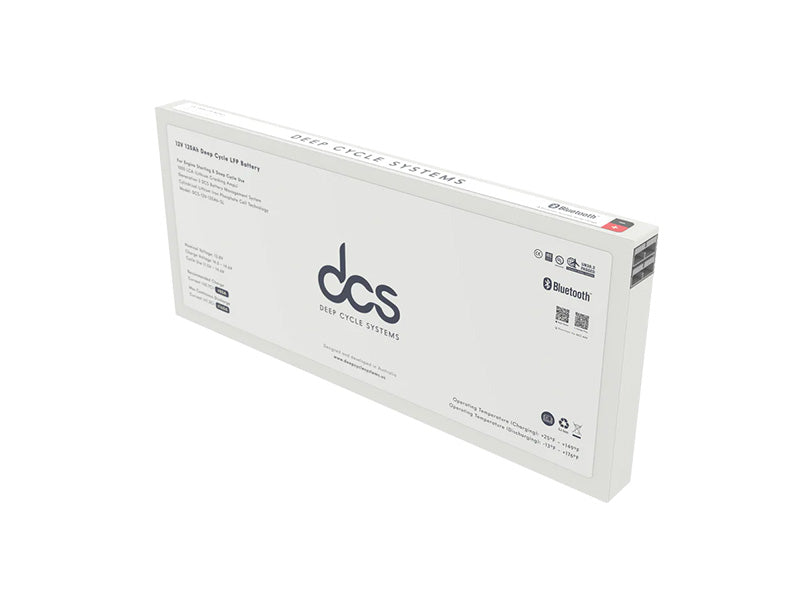

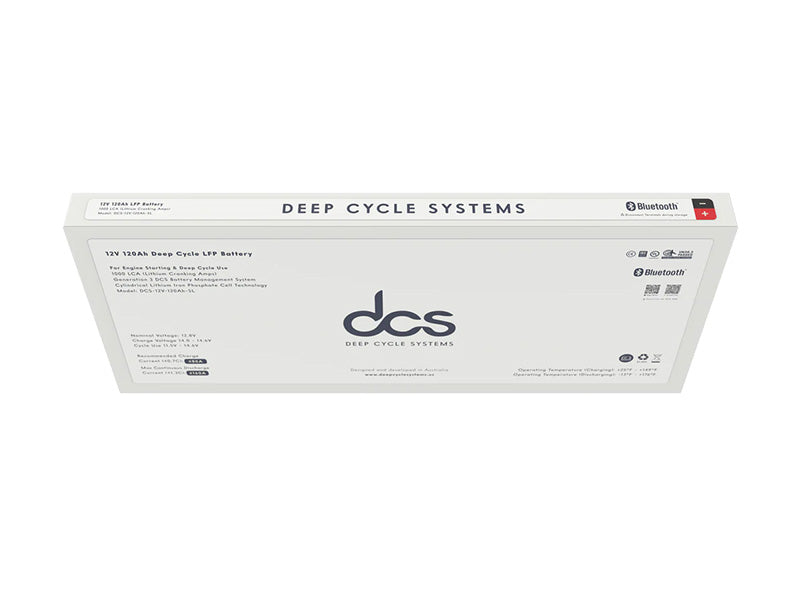

DCS 12v 120Ah Super Slimline Deep Cycle Lithium Iron Phosphate (LiFePo4) Battery



  • New Cell Design Geometry delivers increased durability.
  • New, refined LFP Chemistry with improved energy density.
  • New Cell Pack provides significant gains in Cycle Life.
  • Laser-welded Cell Pack construction for superior mechanical strength.
  • Increased passive cooling performance through an all Aluminum construction.
  • Completely sealed Cell Pack with Thermal Interface Resin.

The thinnest 120Ah LFP Battery currently on the US Market (1.97”)
• Guaranteed Grade A - DCS Cylindrical Cells.
• Mil-Spec Vibration tested BMS for maximum durability, safety and longevity.
• Durable Steel Enclosure (Serviceable).
• Very high Continuous Charge and Discharge Rates (See Data Sheet).
• Twin Terminal Configuration.

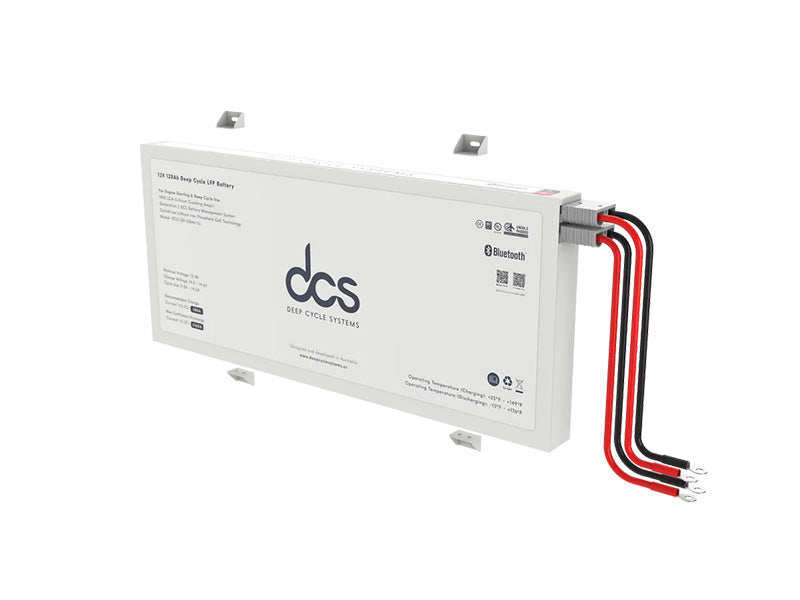

• Dual Anderson Connector Cables and Wall Mounts are included.
• DCS App with Bluetooth 4.0 Data Monitoring.
• Engineering & Tested in Australia.

Available Now.

We at Rhino Adventure Gear are beyond pumped to introduce the Super Slim 120AH LiFePo4 battery. This is a complete game changer with its unique size and built-in Bluetooth monitoring app. The possibilities are extensive! See below for more details!

With a thickness of only 1.968,” this battery was designed to more efficiently utilize space in constrained interiors found in many vehicles like Jeeps, Tacomas and Landcruiser, or in smaller Canopy Campers like the Camp King Outback or the Super Pacific Switchback. This Deep Cycle Lithium Iron Phosphate (LiFePO4/LFP) battery packs a 1000 LCA, a 120A Max Discharge Capacity, and a 120A Max Discharge Capacity. This battery uses 2C LFP Cells for an estimated Cycle Performance of 2500 Cycles @100% Depth of Discharge (DOD).

All DCS Batteries come standard with thier custom, proprietary and MIL vibration-tested 200A Battery Management System (BMS) which enables comprehensive real-time monitoring via BLE 4.0 technology of the following: State of Charge (SOC), Time remaining, Battery pack Voltage, Power and Current, MOSFET temperature and Individual Cell Status.

This battery has a 5-year warranty.

What Makes DCS Different?

1. DCS Batteries are uniquely capable. DCS makes the very first Lithium Battery that is truly capable of handling winching applications. All DCS Deep Cycle Batteries are capable of 1000 - 1400 LCA depending on the model.

2. DCS Batteries are built for durability. Developed for Military and Naval applications, our batteries thier our own MIL Spec tested BMS and are tested for use in the harsh elements of the Australian Outback and have an Operating Temperature range of -22F to +176F.

3. DCS Batteries have a long life span. A long life span and high durability make DCS batteries cost-effective. The majority of our battery models have a 2500-cycle life span @ 100% Depth of Discharge. Calculated at an average use of 200 cycles/year that comes out to ~12.5 years.

It is very important to note that not all lifespan claims are equal. Each manufacturer uses different parameters for testing and many claims are based on theoretical, ideal conditions and do not account for cell chemistry aging (2% per year if used, 3% if unused).

4. DCS Batteries are cost-effective. The only true and accurate way to calculate the cost is to apply the purchase price to the overall lifetime use of the product. The lifetime cost of our 12V 100Ah battery is $0.32/kWh. For comparison, an Odyssey 34-PC1500 AGM battery has a lifetime cost of $1.93/kWh.

5. DCS Batteries are designed and engineered in-house from the ground up. All DCS batteries contain our own custom and proprietary Cell (CMS) and Battery Management System (BMS) that is MIL-STD 810G tested, with active cell balancing and continuous output of 200A.

All DCS batteries now feature our comprehensive Bluetooth System available on both Android and Apple operating systems shows a lot of cool things.

– Cell status showing real-time cell balancing operation
– BMS MOSFET temperature ( great info when you are winching or running a large inverting load or your trolling motor to know how hard you are pushing the electronics ).
– SOC% estimate (using impedance tracking – the App learns the SOC after the first 10 cycles)
– Battery pack voltage and cycle count
– Amp meter – showing charge and discharge current
– Connectivity distance up to 10m
– Now there is no need to install battery monitors or shunts in boats, campers or vehicles. You have all the info you need at your fingertip.
– The SOC estimate is accurate on single batteries, the more batteries that are expanded in parallel the less accurate the SOC becomes.
– This free application provides the perfect tell-tale about the battery pack's state of health as it ages

– Assists installers & integrators to quickly diagnose any system issues

Nominal Voltage 12.8V
Nominal Capacity (1Hr) 120Ah
Case Dimensions (L x W x H) 690mm x 50mm x 300mm (27.165" x 1.96" x 11.8" )
Weight 13.02kg (28.66lbs)
Cycling voltage 11.5 ~ 14.6V
Charge voltage 14.0 ~ 14.6V
Float Voltage 13.5 ~ 13.7V
Maximum Charge Current 120A
Recommended Charge Current 80A
Maximum Discharge Current 200A for 2mins

160A for 5mins

120A Continuous

DCS BMS (internal) DCS active cell management system, over/under voltage, over current charge/discharge, low/high-temperature protections
Cell Chemistry DCS 3.2V 5.0 – 7.2Ah Cylindrical (LifePO4)
Cycle Performance 4000 Cycles @ 100% DOD
LCA 1000
Ingress Protection IP54
Case Metal With White Finish
Operating temp Range -30 to +110 degrees C

(-22 to + 230 degrees F)
Terminals Twin 120A Anderson Plugs
Parallel Connections Only YES
Series Connections No
Warranty 3 years

UN 38.3, UL 1642, IEC 62133 & 62619, CE
