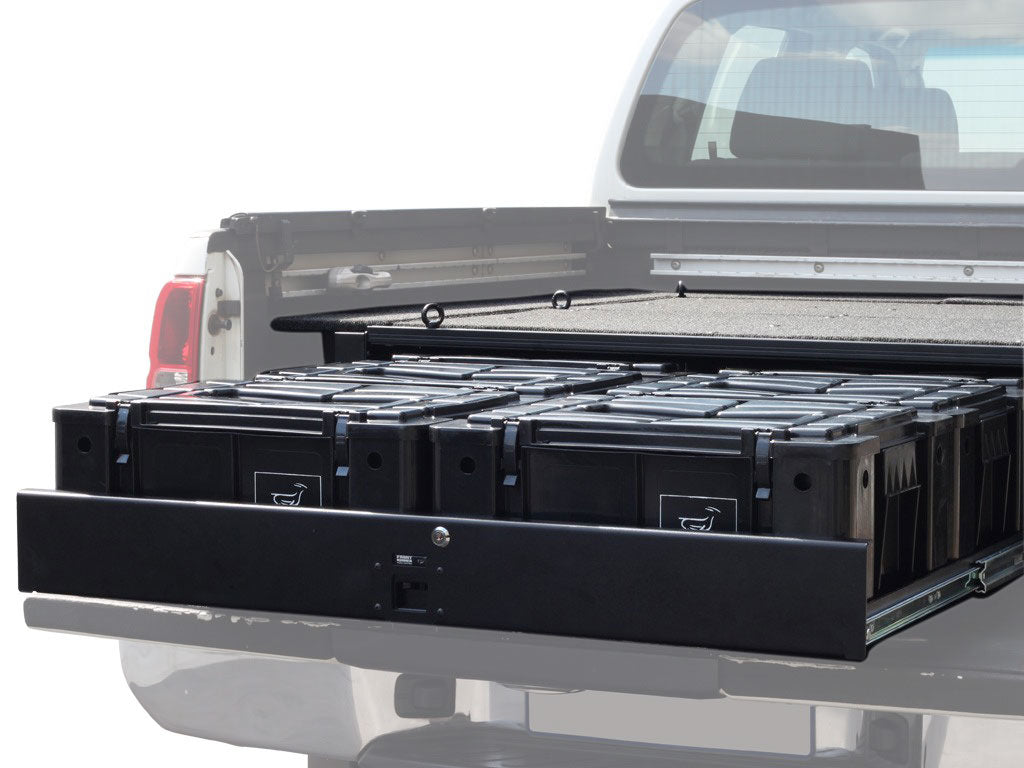

FRONT RUNNER Nissan Navara D40 DC Wolf Pack Drawer Kit
Storing, organizing, and moving gear in Nissan Navaras just got easier.This Wolf Pack based lockable drawer system provides a comprehensive and practical storage solution for easily transporting stored items between a vehicle and the campsite, garage, store, etc. Designed specifically to fit the contours of the Nissan Navara. Engineered tough for both on and off-road conditions.
1 x Base Drawer unit (SSWO008)1 x Push to close latch with 2 keys3 x Accessory Channels6 x Tie Down Rings6 x Low Lid Wolf Packs1 x Drawer System Wing Set1 x Nissan Navara Deck Completion SetInstallation hardwareFitting Instruction
Aluminum - Accessory Channels Sub FrameBlack powder coated steel - FrameCarpet Laminated plywood - Top Deck Deck Set
Overall Dimensions:1428mm (56.2) L x 1591mm (62.6) W x 310mm (12.2) HOuter Drawer Dimensions:1083mm (42.6) W x 1252mm (49.3) D x 310mm (12.2) HInner Drawer Dimensions:1197mm (47.1) L x 1031mm (40.6) W x 230mm (9.1) HOpen Drawer Dimensions:2163mm (85.2) L x 1083mm (42.6) W x 310mm (12.2) HWeight:79.7kg (175.7lbs)Load Rating:113Kg (250lbs)Special Notes:Items can be secured to the top deck using the 6 supplied Tie Down Rings and fitting them accordingly to the 3 accessory channels on the top deck.Drawer has a hold open feature.
FRONT RUNNER Nissan Navara D40 DC Wolf Pack Drawer Kit Features
- This removable box drawer kit includes 1 drawer slide, 6 Front Runner Wolf Packs, locks and keys, 3 tie down rails, 6 tie down rings, deck completion set, face completion set, brackets, all necessary installation hardware, and detailed fitment instructions.Front Runner Wolf Packs, the heart of this modular storage system, are perfectly sized for kitchen support, dried goods, tools, camera gear, toiletries, even clothes.
- These clip-to-close, stackable and durable Wolf Pack - by Front Runner storage containers are made from black, high strength plastic and have integrated grips for easy carrying.
- This Front Runner Removable Box Drawer Kit can be easily installed in minutes by attaching the supplied C-hooks and turnbuckles to the vehicle’s existing mounting points.
- Removing the drawer is just as easy.
- Insert Flat Pack - by Front Runner in the Wolf Pack - by Front Runner as an adjustable compartment padded liner to further protect camera gear, kitchenware and other fragile items.
- (Flat Pack - by Front Runner sold separately).
- 113kg / 250 lb per drawer load carrying capacity.
- Hold open feature: drawer “locks” open while parked on uneven surfaces.
- High-strength bearing slides allows the drawer to extend nearly 100% from the anchored base.
- The push-to-latch mechanism is lockable.
- Keys included.
- Provide peace of mind and security by locking away important support gear.
- The flat deck incorporates three cargo attachment channels and 6 Black Tie Down Rings / Eye Nuts - by Front Runner.
- Customize your own storage configurations.
- Stack and secure luggage, Wolf Pack - by Front Runner, Cub Pack - by Front Runner, aluminum boxes and other storage containers to the top deck using Stratchits - by Front Runner or other straps.
- The deck above the drawer can also be used to mount Front Runner Cargo / Fridge Slides.
- The left side Faceplate has 4 pre-cut knock-outs for adding electrical panel socket inserts.
- The right side faceplate has 2 pre-cut knock-outs for water fittings such as the Stainless Steel Water Tank for Pickup Drawer System / 52l - by Front Runner (sold separately).
- The side and rear decks are easily removable creating storage space between the drawers and vehicle for a variety of items such as tools, jumper cables, tow ropes, diving snorkels, masks, fins, kindling, barbeque skewers, etc.
- The deck is lined with a durable, UV resistant nylon pile carpet.
- The nylon carpet surface creates resiliency for securing cargo while insulating against noise and vibration.
- The drawer is finished with the same durable black powder coating as the Front Runner Slimline II Roof Rack and other Front Runner products.
- This storage system is designed for interior use or in a pick-up load bed with a canopy, camper shell, or other style bed / load bed cover.
- All Front Runner Storage Systems are backed by a 2 year warranty.Note: The Deck Completion Set for this drawer kit requires modification when installed with an existing plastic load liner.
